H-beam Assembling Machine With PLC Control For 200-800mm Flange Width And 0.5-6m/min Assembling Speed
H-beam Assembling Machine With PLC Control For 200-800mm Flange Width And 0.5-6m/min Assembling Speed
H-beam Assembling Machine With PLC Control For 200-800mm Flange Width And 0.5-6m/min Assembling Speed
H-beam Assembling Machine With PLC Control For 200-800mm Flange Width And 0.5-6m/min Assembling Speed
H-beam Assembling Machine With PLC Control For 200-800mm Flange Width And 0.5-6m/min Assembling Speed
H-beam Assembling Machine With PLC Control For 200-800mm Flange Width And 0.5-6m/min Assembling Speed
Specifications
Brand Name :
Shunyao Supply Chain
Certification :
CE,ISO
Place of Origin :
Chengdu , China
MOQ :
1 PCS
Price :
$999-59,99
Payment Terms :
T/T
Supply Ability :
Excellent
Delivery Time :
5-15 Days
Packaging Details :
Bundles
Assembling Speed :
0.5-6m/min
Welder :
Huayuan/ Zhengzhong/ Aotai
Productioncapacity :
100-300 tons per day
Equipment Name :
H beam production line
Total Power :
12KW
Main Motor :
12.5KW
Flange Width :
150-600
Chain Model :
24B Heavy Duty
Assembly Speed :
0.65~6.5m/min
Machine Name :
H beam welding line
Effective Cutting Width :
230-3200 Mm
Width Of Flange :
200-800mm
Reducer :
Shimpo, Neugart
Linkage Control :
Available
Controlsystem :
PLC Control
Production Capacity :
100-300 tons per day
Control System :
PLC Control
H-beam Height :
200-1500/1800
Description
H-beam Assembling Machines
The H-beam Assembling Machines is the key equipment during the production of H beams, primarily used for completing H beam assembly operations.
Specifications
Spec/Model HG1500/1800 ZHG1800/2000/2500/3000
H-beam width 200-800mm 200-800/1000/1200mm
H-beam height 200-1500/1800 200-1800/2000/2500/3000
H-beam length 4000-15000mm customers requirement
Input and output roller include include
Assembling speed 0.5-5.5 m/min (step less) 0.5-5.5 m/min (step less)
Control AC inverter speed adjustment AC inverter speed adjustment
Center alignment Hydraulic + mechanism Hydraulic + mechanism
Features and Applications
  • Main equipment for assembling H-Beam steel structures
  • Features multiple mechanical hands for precise positioning and clamping of steel plates
  • Equipped with hydraulic, pneumatic elements, and transducers for automated operation
  • High efficiency and accuracy for T-beam or H-beam assembly
  • Simple operation with high automation levels
  • Primarily applied to tapered beam and straight beam assembling
Technical Details

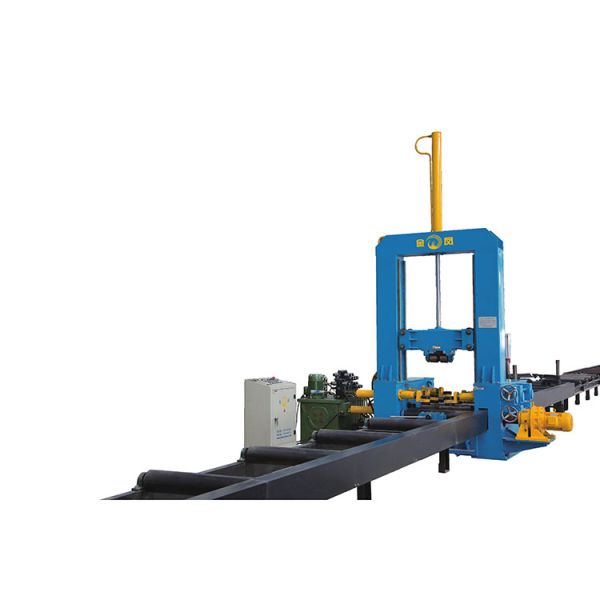

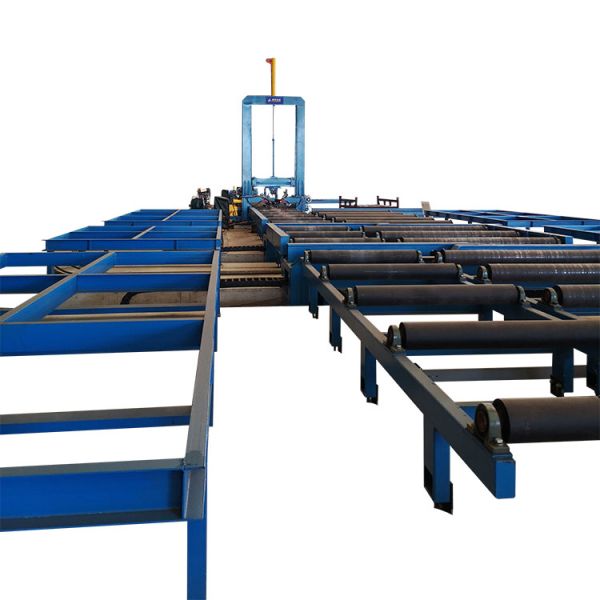

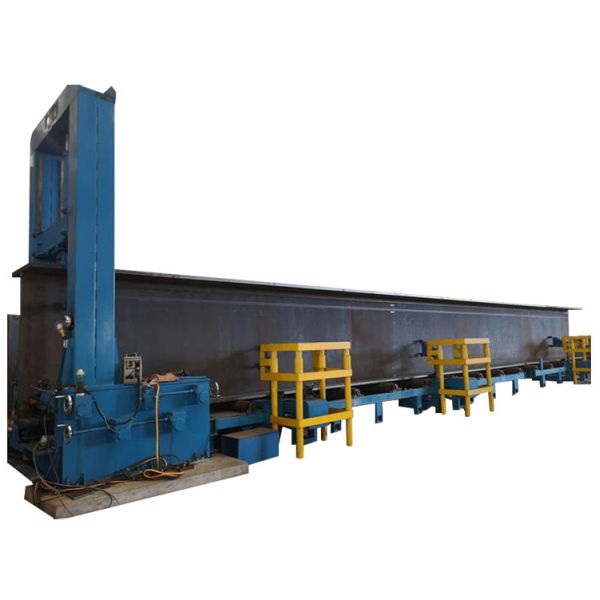

The H-beam Assembling Machines consists of input roller with center alignment device, output roller, main machine, hydraulic system, and electric control box. The main machine includes left/right column, flange and web clamping device, gantry structure, top pressing device, pressing wheel device, welding torches, and roller transmission device.

Structure View
H-beam Assembling Machine With PLC Control For 200-800mm Flange Width And 0.5-6m/min Assembling Speed
