GS-4000 CNC Gantry Flame Cutting Machine with Dual-Function Cutting System and Stress-Relieved Gantry Frame
GS-4000 CNC Gantry Flame Cutting Machine with Dual-Function Cutting System and Stress-Relieved Gantry Frame
Specifications
Brand Name :
Shunyao Supply Chain
Certification :
CE,ISO
Place of Origin :
Chengdu , China
MOQ :
1 PCS
Price :
$699-5,999
Payment Terms :
T/T
Supply Ability :
Excellent
Delivery Time :
5-15 Days
Packaging Details :
Bundles
Costefficiency :
Competitive
Product Type :
Industrial Building
Transportation :
Containerized
Spanlength :
Up to 30 meters
Product :
Steel Structure
Corrosionprotection :
Galvanized/Coated
Thickness Range :
0.3mm - 3.0mm
Height Range :
Up to 30m
Product Insulation :
Thermal and Sound Insulation
Insulation :
Optional thermal insulation
Frame Material :
Cold-formed steel / Hot-rolled steel
Secondary Structure :
Purlin; Brace; Knee Brace etc
Fireresistance :
Fireproof coating available
Maintenance Costs :
Reduced
Surface Treatment :
Spray paint
Total Cross Span :
4000 mm
Effective Cutting Width :
3200 mm
Total Rail Length :
15000 mm
Effective Cutting Length :
13000 mm
Cutting Thickness Range :
6−80 mm
Cutting Speed :
50−1000 mm/min
Rapid Traverse Speed :
6000 mm/min
CNC Cutting Torches :
2 Sets
Straight Strip Torches :
9 Sets
Power Input :
220V/380VAC +/- 5%, 50-60Hz
Description
GS-4000 CNC Gantry Flame Cutting Machine with Multi-Torch Straight Strip Cutter
Introduction & Application

The GS-4000 CNC Gantry Flame Cutting Machine is a heavy-duty, high-efficiency industrial steel plate cutter designed for mass production and high-precision profiling. Combining 2 advanced CNC oxy-fuel cutting torches with 9 straight-line strip cutting torches, this machine is the ultimate solution for steel structure fabrication, shipbuilding, and heavy machinery manufacturing.

Whether you need complex shape profiling or high-speed straight strip stripping, the GS-4000 delivers unparalleled stability and cost-effectiveness.

Key Features & Performance Advantages
  • Stress-Relieved Gantry Frame: The heavy-duty gantry structure undergoes professional thermal stress-relief treatment, ensuring zero deformation and long-term mechanical stability under high-heat working conditions.
  • Japan-Tech High-End AC Servo System: Equipped with a dual-side driven Japan-Tech High-End AC Servo System and high-precision gearboxes, offering fast dynamic response, smooth acceleration, and reliable positioning accuracy.
  • Dual-Function Cutting System:
    • 2 Sets of CNC Torches: Motorized Z-axis height adjustment with precision ball screws for complex programmable shapes.
    • 9 Sets of Straight Torches: Integrated lifting system optimized for rapid, parallel straight strip cutting.
  • Smart Start CM3 CNC Controller: Powered by the Beijing Start CM3 system with a 9.4-inch color LCD display. It supports real-time graphic tracking, power-off breakpoint protection, and kerf/backlash compensation.
Technical Specifications
Technical Parameters Specifications & Capabilities
Model Number GS-4000
Machine Structure Heavy-Duty Gantry Type, Dual-Side Drive
Total Cross Span (Width) 4000 mm
Effective Cutting Width 3200 mm
Total Rail Length 15000 mm (Heavy-duty machined road rails, 2m/pc)
Effective Cutting Length 13000 mm
Cutting Method Flame / Oxy-fuel (Propane or Acetylene + Oxygen)
Cutting Thickness Range 6−80 mm
Cutting Speed 50−1000 mm/min
Rapid Traverse Speed 6000 mm/min (X/Y Axis Limit: 5000 mm/min)
CNC Cutting Torches 2 Sets (Linkage control, motorized Z-axis lifter)
Straight Strip Torches 9 Sets (Simultaneous integrated lifting)
CNC System Brand Beijing Start CM3 CNC Controller (0.001 mm pulse resolution)
Drive Motors Japan-Tech High-End AC Servo System
Transmission High-precision Rack and Pinion (Module 1.5 / 2.0)
Sub-Systems & Technical Breakdown
High-Precision Rail & Rack System

The 15000mm longitudinal rails are manufactured from high-strength road tracks, precision-ground to minimize friction and wear. Combined with high-accuracy racks, it guarantees micro-level accuracy even during maximum speed returns.

Intelligent Start CM3 CNC Controller
  • Hardware Robustness: Built-in PC104 industrial CPU board, 12MB internal flash memory (expandable), and 71-key anti-dust membrane interface.
  • Advanced Features: Supports USB data transfer, standard keyboard input, full-screen text editing, and automatic diagnostic alarms for over-voltage/over-speed.
Integrated Torch Height Control (THC)

The motorized torch lifters feature automatic protection dust covers, precision gear reducers, and flexible manual/automatic overrides to ensure the perfect distance between the torch tip and the steel plate.

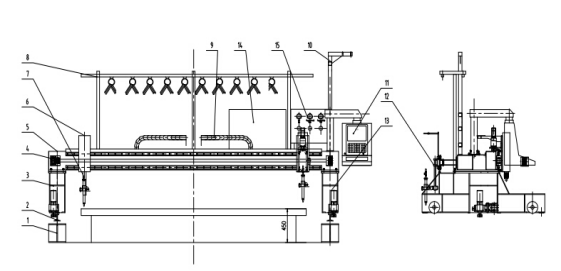

GS-4000 CNC Gantry Flame Cutting Machine with Dual-Function Cutting System and Stress-Relieved Gantry Frame
Site Installation & Operational Requirements
  • Oxygen Source: Purity >= 99.6%, Pressure: 10 bar, Flow Rate: 450 L/min
  • Propane Gas: Pressure: 0.6 bar, Flow Rate: 32 L/min (Acetylene compatible)
  • Power Input: 220V/380VAC +/- 5%, 50-60Hz (Requires a 220VAC 3kW AC voltage stabilizer)
  • Environmental Temperature: -10°C to +40°C (Daily temp variation < +/- 10°C)
  • Relative Humidity: <= 95% RH (Non-condensing)
  • Foundation Work: Civil foundation engineering is required. Detailed foundation blueprints will be dispatched immediately after contract validation
What's Included in the Package
  • Full assembly of GS-4000 CNC Gantry Profile & Strip Cutting Machine
  • Complete User Manuals for Machine Operation & CNC Software
  • Comprehensive Electrical & Schematic Diagrams
  • Factory Quality & Inspection Certificate
  • Industrial Civil Foundation Layout Drawing
