U Bend Return , ASTM A403 WP347H 180 Degree Elbow, Short Radius, Heat Exchanger , Boiler
U Bend Return , ASTM A403 WP347H 180 Degree Elbow, Short Radius, Heat Exchanger , Boiler
U Bend Return , ASTM A403 WP347H 180 Degree Elbow, Short Radius, Heat Exchanger , Boiler
U Bend Return , ASTM A403 WP347H 180 Degree Elbow, Short Radius, Heat Exchanger , Boiler
U Bend Return , ASTM A403 WP347H 180 Degree Elbow, Short Radius, Heat Exchanger , Boiler
U Bend Return , ASTM A403 WP347H 180 Degree Elbow, Short Radius, Heat Exchanger , Boiler
U Bend Return , ASTM A403 WP347H 180 Degree Elbow, Short Radius, Heat Exchanger , Boiler
U Bend Return , ASTM A403 WP347H 180 Degree Elbow, Short Radius, Heat Exchanger , Boiler
Specifications
Brand Name :
YUHONG
Model Number :
180 DEG. ELBOW
Certification :
ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Place of Origin :
China , Korea
MOQ :
1 PC
Price :
1 - 10000 USD
Payment Terms :
L/C, T/T
Supply Ability :
10000 Tons/Month
Delivery Time :
5 - 30 Days

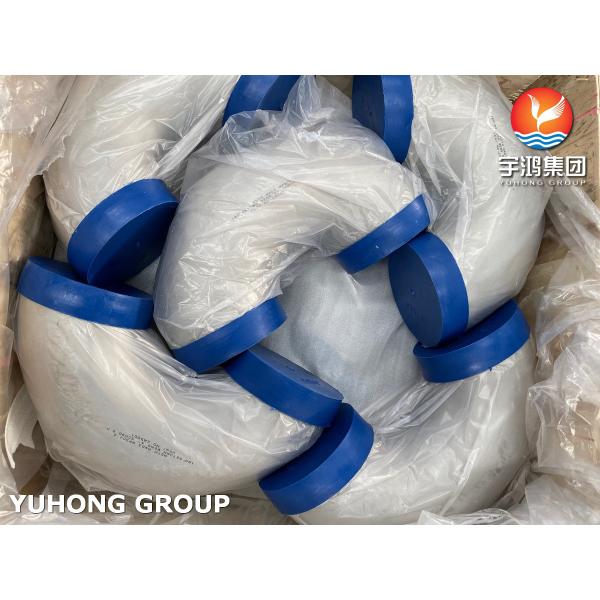

Packaging Details :
Ply-Wooden Case
Material :
WP347H
Standard :
ASTM A403, ASME SA403
Radius :
LR ( Long Radius ) , SR ( Short Radius )
Testing :
UT , PT , PMI
Size :
1/2 inch - 98 inch
Application :
Heat Exchanger , Boiler , Furnace , Fired Heater , Convection Section
Description

U Bend Return , ASTM A403 WP347H 180 Degree Elbow, Short Radius, Heat Exchanger , Boiler

Grade 347 is an austenitic stainless steel that is stabilized with niobium to enhance its resistance to intergranular corrosion. This stabilization makes it particularly effective in high-temperature environments (Excellent resistance to creep and stress rupture at elevated temperatures), where it exhibits excellent mechanical properties and corrosion resistance (Intergranular Corrosion Resistance, General Corrosion Resistance). Grade 347 is widely used in applications requiring high temperature and corrosion resistance, such as in the aerospace, chemical, and power generation industries.

High Temperature Performance:

  1. Creep and Stress Rupture Resistance: Excellent resistance to creep and stress rupture at elevated temperatures.
  2. Oxidation Resistance: Good oxidation resistance up to 1500°F (816°C) in intermittent service and 1650°F (899°C) in continuous service.

Chemical Composition:

Grade

Ni

Cr

Fe

Si

C

 Mn P S Nb+Ta
WP347 9-13% 17-19% Balance 1% max 0.08% max 2% max 0.045% max 0.03% max

10xC

min to 1%

Mechanical Properities:

Tensile Strength

Yield Strength

Elongation

Hardness

Minimum 515 MPa (75,000 psi)

Minimum 205 MPa (30,000 psi)

Minimum 40% in 50 mm (2 inches)

Maximum 217 HB (Brinell hardness)

Applications:

  • Aerospace Industry
  • Chemical Processing
  • Power Generation
  • Oil and Gas Industry
  • Food Processing
  • Automotive Industry
  • Power Plant Boiler
  • Oil Refinary fired heater
  • Fired Furnace
