ASTM A403 WP321H-S 180° Return Bends High-Temp Resistant Stainless Steel For Furnace Piping
ASTM A403 WP321H-S 180° Return Bends High-Temp Resistant Stainless Steel For Furnace Piping
ASTM A403 WP321H-S 180° Return Bends High-Temp Resistant Stainless Steel For Furnace Piping
ASTM A403 WP321H-S 180° Return Bends High-Temp Resistant Stainless Steel For Furnace Piping
ASTM A403 WP321H-S 180° Return Bends High-Temp Resistant Stainless Steel For Furnace Piping
ASTM A403 WP321H-S 180° Return Bends High-Temp Resistant Stainless Steel For Furnace Piping
ASTM A403 WP321H-S 180° Return Bends High-Temp Resistant Stainless Steel For Furnace Piping
ASTM A403 WP321H-S 180° Return Bends High-Temp Resistant Stainless Steel For Furnace Piping
Specifications
Brand Name :
Yuhong
Model Number :
ASTM A403 WP321H-S
Certification :
ABS, BV, DNV, CCS, LR
Place of Origin :
China
MOQ :
100 KGS
Price :
Negotiable
Payment Terms :
TT, LC
Supply Ability :
500 Ton Per Month
Delivery Time :
20-80 days
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Specification :
ASTM A403
Material Grade :
WP321H-S, 08X18H10T, 12X18H10T
Application :
Oil, Gas, Chemical, Petrochemical, Power, and other industries
Size :
4 inch
Material :
Stainless Steel
Shape :
180 Degree
Connection Type :
Butt Welded
Testing :
UT , PT , MT, PMI
Standard :
ANSI/ASME B16.9
Features :
Corrosion-resistant, High strength, Durable
Surface :
Polished
Description

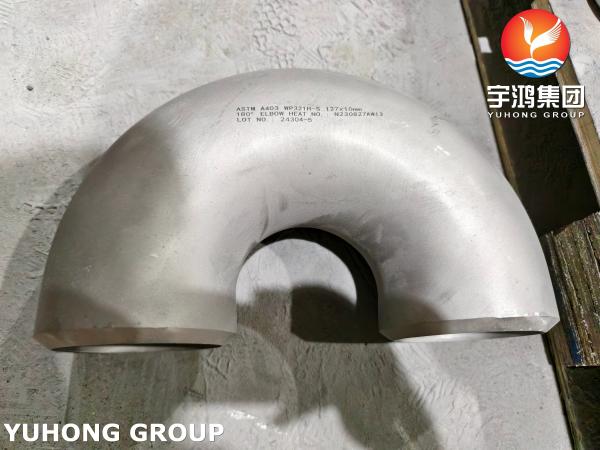

ASTM A403 WP321H-S 180° Return Bends: High-Temp Resistant Stainless Steel for Furnace Piping

Yuhong Holding Group presents ASTM A403 WP321H-S 180° return bends, engineered for critical furnace connections in corrosive and high-temperature environments. These elbows ensure seamless flow in finned tube systems, combining durability with precision performance.

Material & Chemistry
Crafted from TP321H-S stainless steel, stabilized with titanium to resist carbide precipitation, ideal for elevated temperatures:

Type Radius Size Range
Short Radius R=1.0 x Nominal Dia. 1/2" - 24"
Customized As per requirement Available

Chemical Composition:

Element C Mn P S Si Cr Ni
% 0.04-0.10 ≤2.00 ≤0.045 ≤0.03 ≤1.00 17-19 9-12

Mechanical Properties:

​

Property
Tensile Strength
Yield Strength
Elongation
Max Operating Temp
Corrosion Resistance
Value
≥515 MPa
≥205 MPa
≥30%
870°C
Excellent in oxidizing environments

Manufacturing & Design
  • Precision Forging: Ensures uniform wall thickness and tight radius tolerance (1.5D standard).
  • Solution Annealing: 925–1010°C heat treatment enhances grain structure for high-temperature stability.
  • HF Weld Compatibility: Matches finned tube systems with seamless integration in heater circuits.

Applications
Perfect for:
  • Industrial furnace radiant coils
  • Petrochemical reformer units
  • Waste heat recovery systems
  • Corrosive gas pipelines

Key Advantages

  • Carbide Stability: Titanium addition prevents intergranular corrosion under cyclic heating.
  • Thermal Fatigue Resistance: Handles rapid temperature fluctuations common in furnace operations.
  • Dimensional Accuracy: Tight tolerances reduce flow turbulence and pressure drop.

FAQ

Q: Can these bends be used with acidic fuels?
A: Yes, TP321H-S resists sulfuric and nitric acid corrosion typical in industrial exhaust.
Q: What sizes are available?
A: Standard sizes ½"–12", with custom dimensions for specific furnace layouts.

About Yuhong Holding Group

With 20 years exporting to 80 countries, we rank among China’s top 5 finned tube suppliers. Our 20,000㎡ facility houses 55 production lines and 110 experts, delivering advanced heating components. We offer full-range accessories, from elbows to custom fittings, backed by strict quality controls.
Contact: jimmy@steelseamlesspipe.com | WhatsApp: +86 18892647377
Visit www.steelfintube.com for technical specs and certifications.
