Steel Structure Warehouse Building with Thermal Insulation and Aluminum Windows
Steel Structure Warehouse Building with Thermal Insulation and Aluminum Windows
Steel Structure Warehouse Building with Thermal Insulation and Aluminum Windows
Steel Structure Warehouse Building with Thermal Insulation and Aluminum Windows
Steel Structure Warehouse Building with Thermal Insulation and Aluminum Windows
Steel Structure Warehouse Building with Thermal Insulation and Aluminum Windows
Steel Structure Warehouse Building with Thermal Insulation and Aluminum Windows
Steel Structure Warehouse Building with Thermal Insulation and Aluminum Windows
Steel Structure Warehouse Building with Thermal Insulation and Aluminum Windows
Steel Structure Warehouse Building with Thermal Insulation and Aluminum Windows
Specifications
Brand Name :
YDX
Model Number :
YDX-S5
Certification :
CE ISO SGS
Place of Origin :
CHINA,QINGDAO
MOQ :
50-10000 square meters
Price :
$35.00-$63.00
Payment Terms :
T/T
Supply Ability :
10000 tons/month
Delivery Time :
20-30 works days
Packaging Details :
Exported standard packing
Product Insulation :
Thermal Insulation
Working Scope :
Design,Fabrication, Installation
Sustainability :
Eco-friendly
Key :
Versatility
Insulation :
Efficient
Product Flexibility :
Flexible
Window :
Aluminum Sliding Window
Features :
Steel Frame Warehouse
Description

Steel Structure Warehouse Building Construction Large Span Easy Assemble

Project Description:

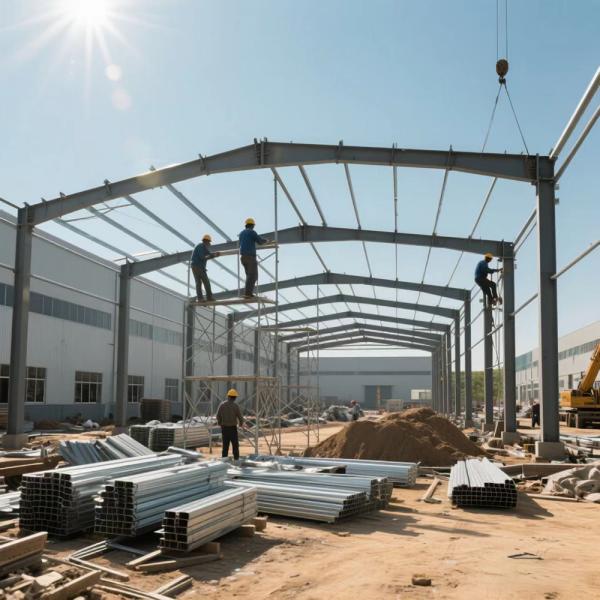

Steel Structure Warehouse Building Construction Large Span Easy Assemble. This is a heavy steel structre warehouse project that we are awarded as a General Contractor, that means our work scope include design, fabrication and construction. The construction floor area is about 39,700 square meters. As it is a heavy steel warehouse, the steel quantity for this project is about 3000Tons. We provide wleded steel beam&column, roof and wall panel, purlin, window and doors and other accessory.All components are prefabricated at the factory, and the site is simply assembled, which greatly shortens the construction period.

Product Description:

Product Application
Light Frame Steel Construction Hangar Design Prefabricated Steel Structure Factory Building Workshop warehouse
A pre-engineered steel building is a modern technology where the complete designing is done at the factory and the building components are brought to the site and then fixed/jointed at the site, all is bolt connection, no need any welding!
An efficiently designed pre-engineered building can be lighter than the conventional steel buildings by up to 30%. Lighter weight equates to less steel and potential price savings in structural framework.
SPECIFICATION FOR STEEL STRUCTURE BUILDING
Main Steel Frame Steel Column & Beam 1. Material: Q345B (S355JR) or Q235B(S235JR)/ Welded/Hot Rolled H section steel
2. Surface: Hot Dip Galvanized or Painted;
3. Connection: All Bolts Connection;
Supporting System Roof Purlin C or Z Section Steel, Q235B
Wall Purlin C or Z Section Steel, Q235B
Bracing Steel Rod, Q235B
Cross Support Steel Rod, Q235B
Column Support Angle Steel; Steel Rod; Q235B
Angle Brace Angle steel,Q235B
Tie Bar Steel Pipe,Q235B
Roof & Wall System 1. Single Colorful Corrugated Steel Sheet;
Thickness: 0.3-0.8mm
2. Sandwich Panel with EPS, Rock Wool, Fiberglass,PU;
Thickness: 50-150mm;
Accessories Door Sliding; Rolled Up Door (Manual/Auto)
Window Aluminum Alloy; PVC;
Downspout PVC pipe;
Gutter Galvanized Steel Sheet; Stainless Steel
Ventilator Stainless Steel Turbine Ventilator
Skylight Belt FRP or PC semi-transparent Skylight Belt
Flash Color Steel Sheet
Fittings Anchor Bolt; High Strength Bolt; Standard Bolt, Self-tapping nail etc

Steel Structure Warehouse Building with Thermal Insulation and Aluminum Windows

Our steel structure fabricaiton factory:

We own three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various types of profiling steel sheet machines with advanced equipment such as plasma cutting machine.

Installation:

Method 1: We provide shop drawing before installation.

Method 2: If you still don't know how to install, We will teach you the installation in our factory. when necessary , we will assemble a sample steel structure building for you.

Packing & Loading:

All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.

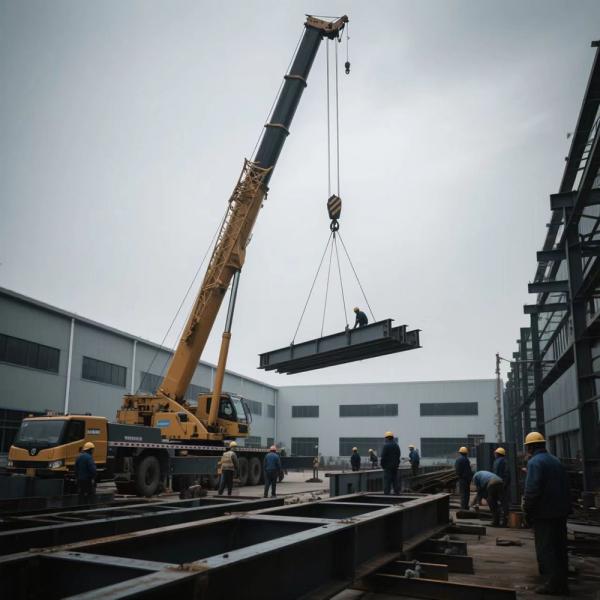

All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.

How to quote:

The following question we need to know before making the price. Just feel free to fill what you know.

1 Location (where will be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. snow height) _____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much
lower than that of the former
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
