Q235 Steel Structure Building Anti Rust Paint Prefabricated Metal Frame
Q235 Steel Structure Building Anti Rust Paint Prefabricated Metal Frame
Q235 Steel Structure Building Anti Rust Paint Prefabricated Metal Frame
Q235 Steel Structure Building Anti Rust Paint Prefabricated Metal Frame
Q235 Steel Structure Building Anti Rust Paint Prefabricated Metal Frame
Q235 Steel Structure Building Anti Rust Paint Prefabricated Metal Frame
Q235 Steel Structure Building Anti Rust Paint Prefabricated Metal Frame
Q235 Steel Structure Building Anti Rust Paint Prefabricated Metal Frame
Q235 Steel Structure Building Anti Rust Paint Prefabricated Metal Frame
Q235 Steel Structure Building Anti Rust Paint Prefabricated Metal Frame
Q235 Steel Structure Building Anti Rust Paint Prefabricated Metal Frame
Q235 Steel Structure Building Anti Rust Paint Prefabricated Metal Frame
Q235 Steel Structure Building Anti Rust Paint Prefabricated Metal Frame
Q235 Steel Structure Building Anti Rust Paint Prefabricated Metal Frame
Specifications
Brand Name :
YDX
Model Number :
YDX-JD14
Certification :
CE ISO SGS
Place of Origin :
CHINA,QINGDAO
MOQ :
50-10000 square meters
Price :
$35.00-$63.00
Payment Terms :
T/T
Supply Ability :
10000 tons/month
Delivery Time :
20-30 works days
Packaging Details :
Exported standard packing
Advantage： :
Easy & Fast Install
Use: :
Warehouse, Workshop
Roof: :
Glass Wool, EPS, PU
Material: :
Steel, Purlin, Column
Surface Treatment: :
Painted Or Galvanized
Shape: :
As The Customer Request
Description

Q235 Steel Structure Building Anti Rust Paint Prefabricated Metal Frame

Product Description

Prefab Prefabricated Metal Frame Steel Structure Building

Steel structure commerical building is formed by the main framework through linking up the H beam, C purlin, Z purlin steel components.
Roof and wall adopt a variety of panels inlcuding glass curtain, aluminum panel etc.
The building usually use as showroom, supermarket, office , hotel etc, which has advantages of high strength, light weight, low cost, temperature protection, save energy, beautiful appearance, short construction time, good effect of insulation, long using life, space-efficient, good seismic performance, flexible layout, etc.

Project Parameters

Product Application
Light Frame Steel Construction Hangar Design Prefabricated Steel Structure Factory Building Workshop warehouse
A pre-engineered steel building is a modern technology where the complete designing is done at the factory and the building components are brought to the site and then fixed/jointed at the site, all is bolt connection, no need any welding!
An efficiently designed pre-engineered building can be lighter than the conventional steel buildings by up to 30%. Lighter weight equates to less steel and potential price savings in structural framework.

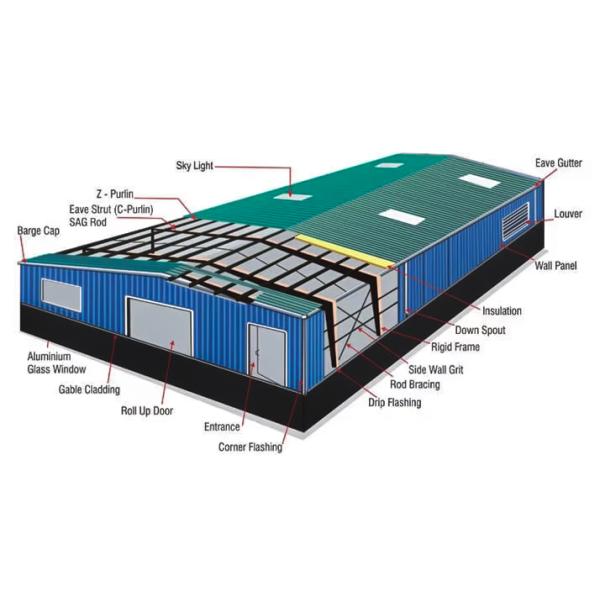

SPECIFICATION FOR STEEL STRUCTURE BUILDING
Main Steel Frame Steel Column & Beam 1. Material: Q345B (S355JR) or Q235B(S235JR)/ Welded/Hot Rolled H section steel
2. Surface: Hot Dip Galvanized or Painted;
3. Connection: All Bolts Connection;
Supporting System Roof Purlin C or Z Section Steel, Q235B
Wall Purlin C or Z Section Steel, Q235B
Bracing Steel Rod, Q235B
Cross Support Steel Rod, Q235B
Column Support Angle Steel; Steel Rod; Q235B
Angle Brace Angle steel,Q235B
Tie Bar Steel Pipe,Q235B
Roof & Wall System 1. Single Colorful Corrugated Steel Sheet;
Thickness: 0.3-0.8mm
2. Sandwich Panel with EPS, Rock Wool, Fiberglass,PU;
Thickness: 50-150mm;
Accessories Door Sliding; Rolled Up Door (Manual/Auto)
Window Aluminum Alloy; PVC;
Downspout PVC pipe;
Gutter Galvanized Steel Sheet; Stainless Steel
Ventilator Stainless Steel Turbine Ventilator
Skylight Belt FRP or PC semi-transparent Skylight Belt
Flash Color Steel Sheet
Fittings Anchor Bolt; High Strength Bolt; Standard Bolt, Self-tapping nail etc
