Heavy Duty Steel Structure Workshop Prefabricated Building
Heavy Duty Steel Structure Workshop Prefabricated Building
Heavy Duty Steel Structure Workshop Prefabricated Building
Heavy Duty Steel Structure Workshop Prefabricated Building
Heavy Duty Steel Structure Workshop Prefabricated Building
Heavy Duty Steel Structure Workshop Prefabricated Building
Heavy Duty Steel Structure Workshop Prefabricated Building
Heavy Duty Steel Structure Workshop Prefabricated Building
Heavy Duty Steel Structure Workshop Prefabricated Building
Heavy Duty Steel Structure Workshop Prefabricated Building
Heavy Duty Steel Structure Workshop Prefabricated Building
Heavy Duty Steel Structure Workshop Prefabricated Building
Specifications
Brand Name :
YDX
Model Number :
YDX-DF5
Certification :
CE ISO SGS
Place of Origin :
CHINA,QINGDAO
MOQ :
10-10000 square meters
Price :
$30.00-$65.00
Payment Terms :
T/T
Supply Ability :
10000 tons/month
Delivery Time :
20-30 works days
Packaging Details :
Exported standard packing
Dimensions :
Customers' Requirement
Construction Type :
Frame
Installation Time :
Short
Window :
Aluminum sliding window
Surface :
Galvanized Or Prepainted
Key :
Versatility
Finish :
Galvanized/Painted/Cladding
Product Assembly :
Easy To Assemble
Grade :
Q235 Q355B
Color :
Customized
Main Structure :
Welded/Hot Rolled H Section Steel
Type :
Steel Structure Building Construction
Structure Type :
Frame
Frame Type :
Steel Frame
Earthquake Resistance :
Strong
Windows :
Aluminum
Seismic Design :
High Seismic Zone
Aesthetics :
Modern
Cost :
Moderate
Product Resistance :
Corrosion Resistant
Roof :
Glass Wool, EPS, PU
Product Fire Resistance :
Fireproof
Door :
Sliding Door or Rolling Door
Description

Heavy Industry Steel Structure Workshop Prefabricated Building

Product Overview
Expertly designed industrial steel buildings for heavy industry applications, featuring durable construction and customizable configurations.
Application: Heavy Industry Steel Structure Workshop
Usage: Prefabricated Industrial Steel Buildings
Type: Steel Structure Workshop
Raw steel material: Q235B, Q355B
Surface treatment: Painting or Hot-dip Galvanize
Columns and Beam: H Section Column&Beam
Standard: GB, AISC, ISO
Project Specifications

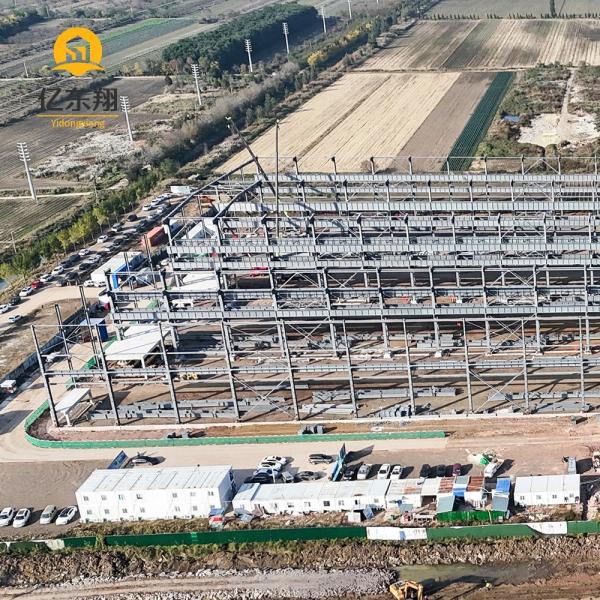

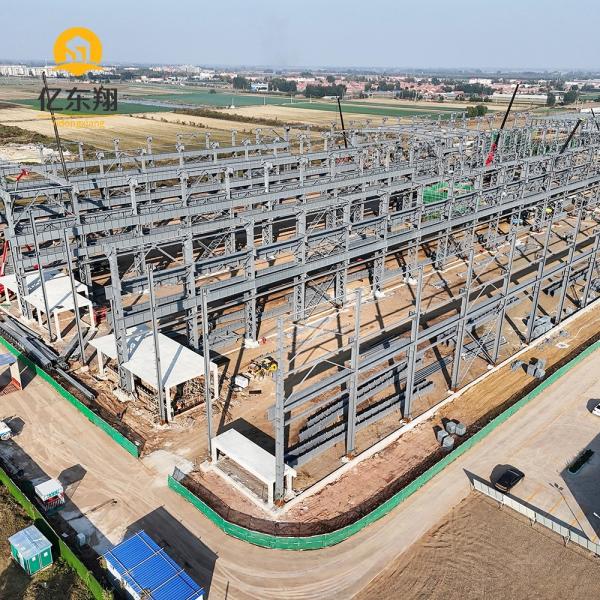

This heavy steel structure workshop was designed and built for Volkswagen, covering approximately 36,000 square meters with a workshop height of 15m, utilizing about 3300 tons of steel.
  • Type: Multi-span, single floor
  • Base: Concrete and steel foundation bolts
  • Column and beam: Q345 & Q235 steel, all bolts connection
  • Bracing: X or V type bracing made from angle, round pipe
  • C or Z purlin: Size from C100~C320, Z160~Z300
  • Roof and wall panel: Aluminum composite panel
  • Accessories: Semi-transparent skylight belts, ventilators, down pipe
  • Derusting: Shot blasting for main components
  • Installation: Managed by on-site Project Manager
Design Capabilities
Our comprehensive design services include preliminary layout drawings, shop drawings, 3D Tekla models, and installation drawings.

Heavy Duty Steel Structure Workshop Prefabricated Building

Material Specifications

Steel structure building
1. Primary Framing Box beam column, cross steel column, H-shaped steel column, steel beam
2. Secondary Framing Galvanized Z and C sections purlin
3. Roof and Wall panels Steel sheet and insulated sandwich panels (EPS, fiberglass wool and PU).
4. Steel Decking Floor Galvanized steel decking board
5.Structural subsystem Divider, gutter, awning, partition wall
6.Mezzanines, Platforms Painted or galvanized H beam
7.Other Building Accessories Sliding doors, roll up doors, aluminium windows, louvers, etc.
Service Life 50-70years support steel angle, steel pipe, steel round
Place of Origin Qingdao,Shandong,China Application workshop, warehouse, poultry house,garage etc
Grade Q235B, Q355B or as per customer's need Bolt Grade M20, M16, M14 etc
Connection intensive bolt, ordinary bolt Window PVC steel or aluminum alloy
Downspout PVC pipe or as per customer's request Door sliding or rolling door
Purlin C/Z shape profile Panel EPS/PU/fiber glass/rock wool
Main Frame Welded or hot rolled H-shaped steel, columns, beams, box beams and columns
Drawings & Quotation:
(1) Customized design is welcomed.
(2) In order to promise an accurate quotation and drawings, please let us know the length, width, eave height and local weather.We will quote for you promptly.
Steel structure warehouse composition
1. column and beam Material Q355 box or H-shaped steel (painted or galvanized)
2. Steel structure spraying galvanized or painted
3. wall&roof purlin C or Z section steel
4. wall&roof panel colorful corrugated steel sheet ,sandwich panels with EPS, rock wool, fiber glass, PU etc.
5.support steel angle, steel pipe, steel round
6.gutter steel sheet or galvanized steel sheet
7.downpipe pvc pipe
8.door sliding sandwich panel door or rolling metal door
9.window PVC or aluminum alloy windows
10.accessory anchor bolt,high strengthen bolt, normal Bolt, skylight Belts, ventilators, etc
11.Use Our steel structure building have many applications and uses. Workshop, warehouse, office building, multi-story building, hangar,garage, livestock farm,poultry farm ,ect.
12.Advantage 1.Low cost, convenient.
2.Easy assembly and disassembly many times without damage.
3.Widely used in construction site, office building , etc.
4.Good environmental protection.
Key Advantages
  • Wide span: Single span or multi-span configurations
  • Cost-effective: Unit price range from $50/m² to $90/m²
  • Durable: 30-50 year service life
  • Efficient: Fast construction and easy installation
  • Performance: Environmental protection, stable structure, earthquake resistance

Heavy Duty Steel Structure Workshop Prefabricated Building

Packing & Shipping
All structural components, panels, bolts and accessories are packed to withstand ocean transportation and loaded into 40'HQ containers.
Heavy Duty Steel Structure Workshop Prefabricated Building
