Specifications
Brand Name :
YDX
Model Number :
YDX-4FSD
Certification :
CE ISO SGS
Place of Origin :
CHINA,QINGDAO
MOQ :
50-10000 square meters
Price :
$35.00-$63.00
Payment Terms :
T/T
Supply Ability :
10000 tons/month
Delivery Time :
20-30 works days
Packaging Details :
Exported standard packing
Surface Treatment :
Painted Or Galvanized
Product Resistance :
Corrosion Resistant
Building :
Prefabricated Steel Structure
Install :
Support Installation
Structure :
Steel Structure
Working Scope :
Design,Fabrication, Installation
Size :
Customized
Construction :
Steel Frame
Description

Truss Roof Steel Structure Warehouse Construction Metal Truss Fabrication

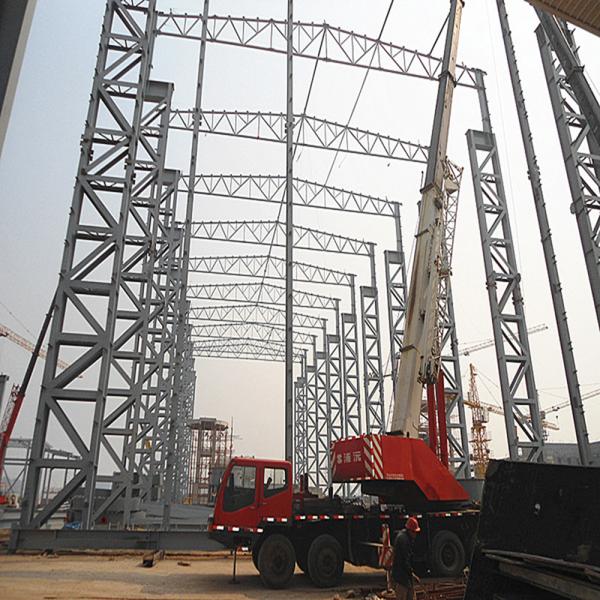

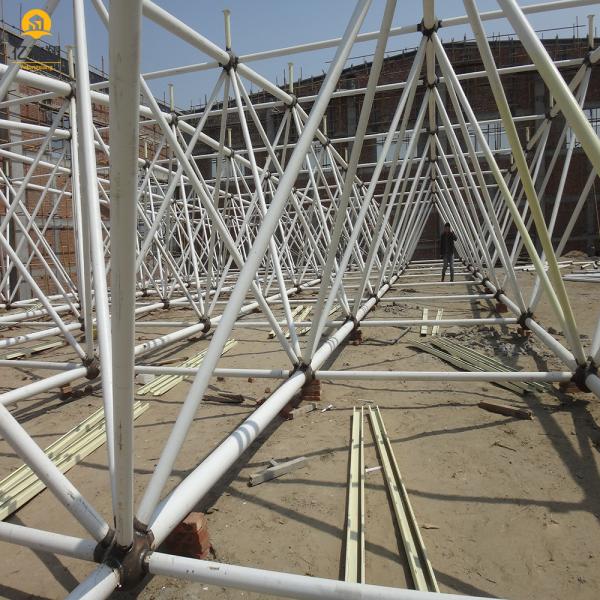

Steel truss roof is one kind of structure consisting of rods connected by hinges at each end. Trusses are generally planar or spatial structures composed of straight bars with triangular elements. The members of trusses are mainly subjected to axial tension or pressure, so as to make full use of the strength of materials. When the span is large, it can save materials, reduce the dead weight and increase the stiffness compared with the real web beam.

We disign the drawing, fabricate all the steel columns, beams, purlin, ect, install the steel structure and panel, window&doors for our client.

Product Application
Light Frame Steel Construction Hangar Design Prefabricated Steel Structure Factory Building Workshop warehouse

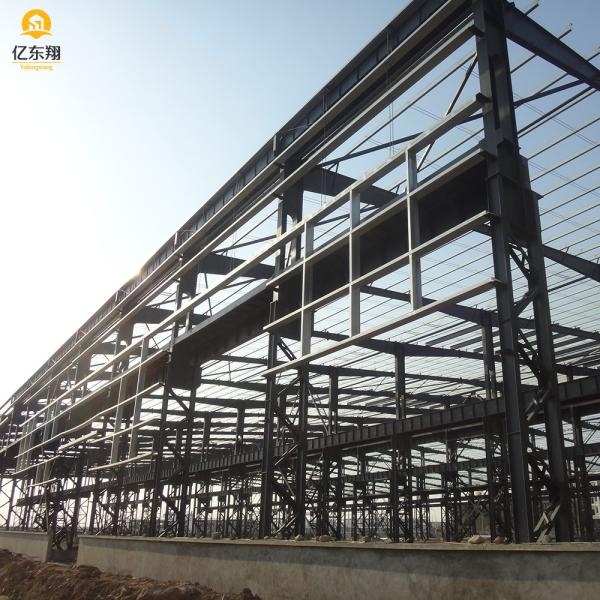

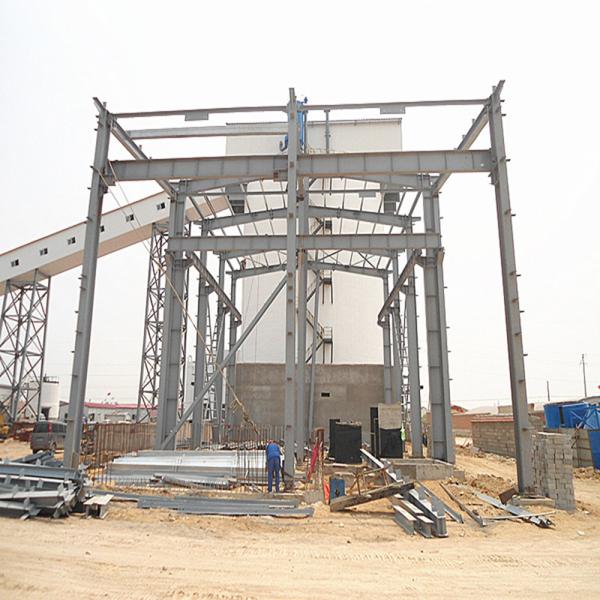

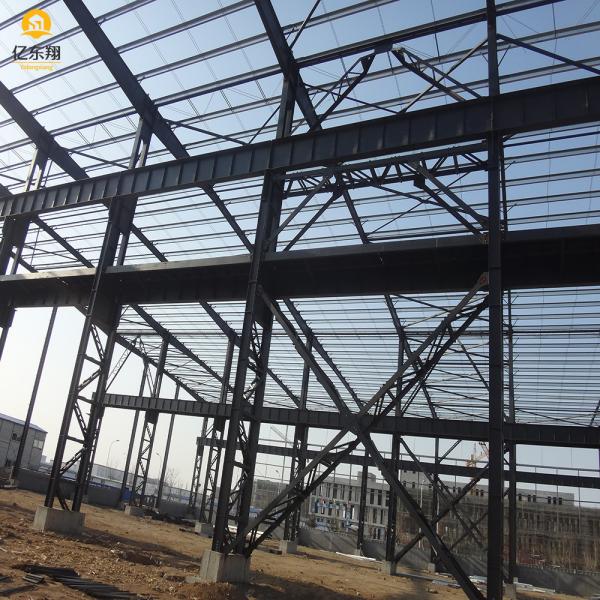

A pre-engineered steel building is a modern technology where the complete designing is done at the factory and the building components are brought to the site and then fixed/jointed at the site, all is bolt connection, no need any welding!
An efficiently designed pre-engineered building can be lighter than the conventional steel buildings by up to 30%. Lighter weight equates to less steel and potential price savings in structural framework.
SPECIFICATION FOR STEEL STRUCTURE BUILDING
Main Steel Frame Steel Column & Beam 1. Material: Q345B (S355JR) or Q235B(S235JR)/ Welded/Hot Rolled H section steel
2. Surface: Hot Dip Galvanized or Painted;
3. Connection: All Bolts Connection;
Supporting System Roof Purlin C or Z Section Steel, Q235B
Wall Purlin C or Z Section Steel, Q235B
Bracing Steel Rod, Q235B
Cross Support Steel Rod, Q235B
Column Support Angle Steel; Steel Rod; Q235B
Angle Brace Angle steel,Q235B
Tie Bar Steel Pipe,Q235B

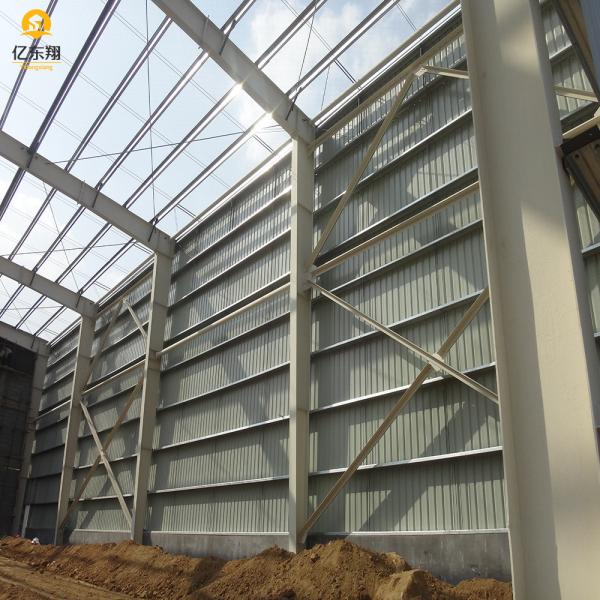

Roof & Wall System 1. Single Colorful Corrugated Steel Sheet;
Thickness: 0.3-0.8mm
2. Sandwich Panel with EPS, Rock Wool, Fiberglass,PU;
Thickness: 50-150mm;
Accessories Door Sliding; Rolled Up Door (Manual/Auto)
Window Aluminum Alloy; PVC;
Downspout PVC pipe;
Gutter Galvanized Steel Sheet; Stainless Steel
Ventilator Stainless Steel Turbine Ventilator
Skylight Belt FRP or PC semi-transparent Skylight Belt
Flash Color Steel Sheet
Fittings Anchor Bolt; High Strength Bolt; Standard Bolt, Self-tapping nail etc

Prefabricated Steel Truss Roof Structure for Warehouse Construction

Prefabricated Steel Truss Roof Structure for Warehouse Construction

Prefabricated Steel Truss Roof Structure for Warehouse Construction

Prefabricated Steel Truss Roof Structure for Warehouse Construction

Packing and transport:

All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.

All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.
