Specifications
Brand Name :
YDX
Model Number :
YDX-FDH6
Certification :
CE ISO SGS
Place of Origin :
CHINA,QINGDAO
MOQ :
50-10000 square meters
Price :
$35.00-$63.00
Payment Terms :
T/T
Supply Ability :
10000 tons/month
Delivery Time :
20-30 works days
Packaging Details :
Exported standard packing
Column :
Squre Tube
Design Options :
Versatile
Earthquake Resistance :
Strong
Material :
Steel
Construction Time :
Short
Working Scope :
Design,Fabrication, Installation
Construction Type :
Frame Building
Windows :
Aluminum
Construction Method :
Bolted Or Welded
Wall And Roof :
Steel Cladding
Type :
Frame Building
Features :
Steel Frame Warehouse
Description

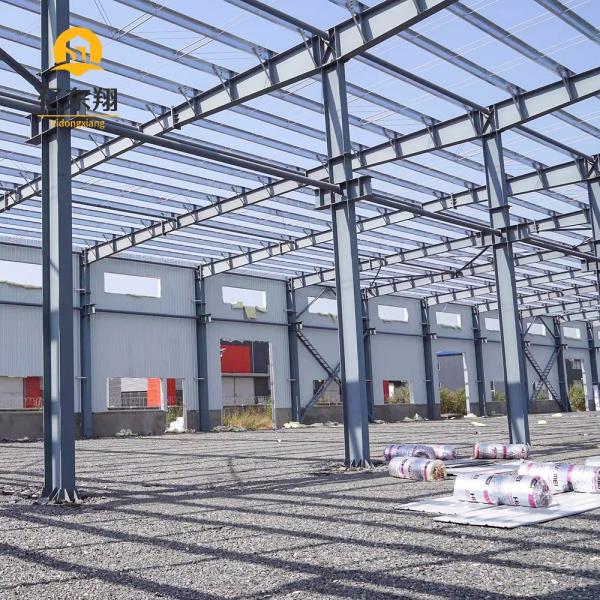

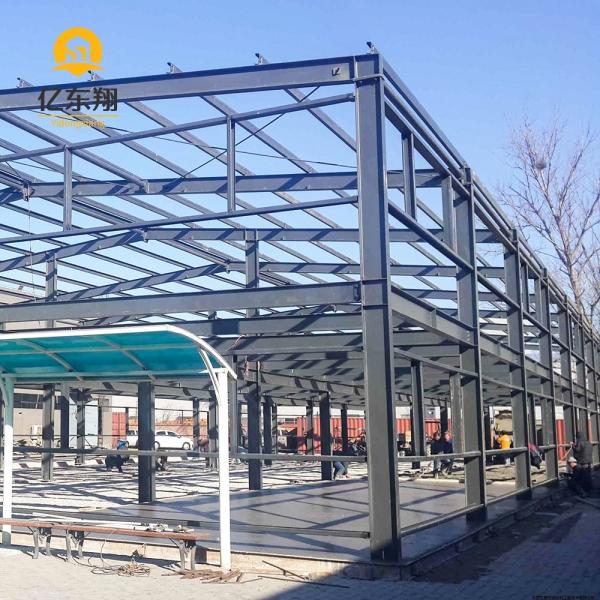

Prefabricated Steel Frame Building for Warehouse and Factory

Project Description

Our prefabricated steel frame buildings are ideal for warehouse and industrial applications. This particular steel structure building is designed for use as a car shop, with a construction floor area of approximately 3,200 square meters. We provide complete solutions including welded steel beams & columns, crane systems, steel cladding sheets, purlins, windows, doors, and all necessary accessories.

Technical Specifications

Component Specification

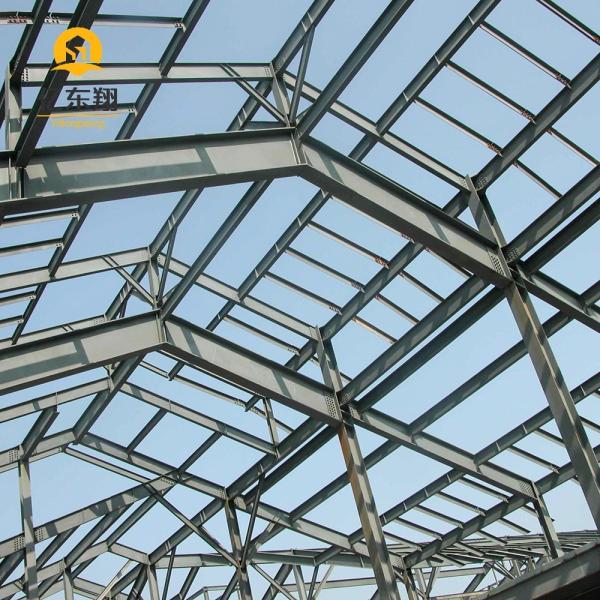

Main Steel Frame System
Main structure H section steel Q345, alkyd painting, two primary painting, two finish painting
Roof purlin XZ160*60*20*2.5, galvanized
Wall purlin XZ160*60*20*2.5, galvanized
Intensive bolt Grade 10.9
Turn buckle bolt M20+2, steel Q235, processing
Anchor bolt M24, steel Q235, processing
Bracing System
Cross brace Φ20 round steel bar Q235, process and painted (alkyd painting)
Angle brace L50*5 angle steel Q235, process and painted (alkyd painting)
Column bracing Φ25 round steel bar Q235, process and painted (alkyd painting)
Tie bar Φ127*3 steel pipe Q235, process and painted (alkyd painting)
Batter brace Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting)
Wall & Roof System
Roof panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Wall panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Edge cover 0.5mm color plate, angle Alu.
Fittings & accessories Nails, glue etc.
Prefabricated Steel Frame Warehouse Building with Earthquake Resistance
Installation Process
  1. We provide detailed construction drawings prior to installation
  2. Our experienced engineers provide on-site guidance throughout the installation process

Prefabricated Steel Frame Warehouse Building with Earthquake ResistancePrefabricated Steel Frame Warehouse Building with Earthquake ResistancePrefabricated Steel Frame Warehouse Building with Earthquake Resistance

Why Choose Our Steel Structures?

"Quality first, Customer first" is our company principle. We have earned an excellent reputation through our commitment to quality and service, while fostering teamwork and win-win cooperation with our clients.

  • Cost-effective: Professional design reduces construction time and material costs
  • Eco-friendly: Specialized cladding materials provide superior acoustic and thermal insulation; recyclable materials
  • Comfortable design: Spacious interiors with wide bays offer excellent visibility and functionality
  • Durable construction: 50-year service life with proper maintenance
  • Custom solutions: Flexible designs to meet specific industrial requirements
