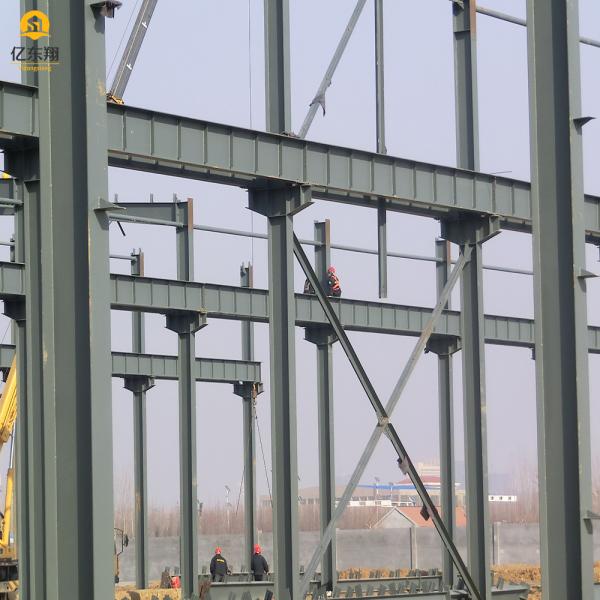

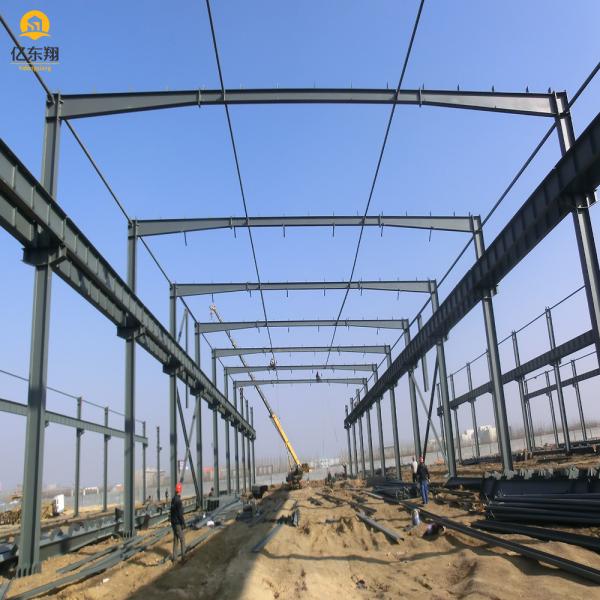

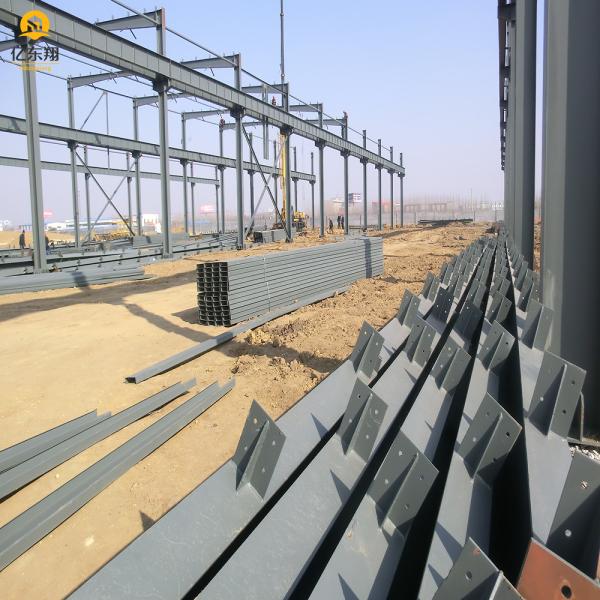

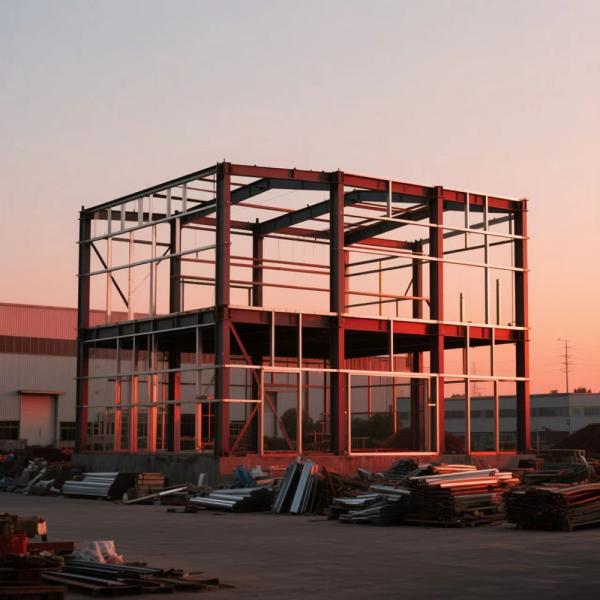

Modular Prefabricated Steel Structure Warehouse Structural Metal Frame
Modular Prefabricated Steel Structure Warehouse Structural Metal Frame
Modular Prefabricated Steel Structure Warehouse Structural Metal Frame
Modular Prefabricated Steel Structure Warehouse Structural Metal Frame
Modular Prefabricated Steel Structure Warehouse Structural Metal Frame
Modular Prefabricated Steel Structure Warehouse Structural Metal Frame
Modular Prefabricated Steel Structure Warehouse Structural Metal Frame
Modular Prefabricated Steel Structure Warehouse Structural Metal Frame
Modular Prefabricated Steel Structure Warehouse Structural Metal Frame
Modular Prefabricated Steel Structure Warehouse Structural Metal Frame
Modular Prefabricated Steel Structure Warehouse Structural Metal Frame
Modular Prefabricated Steel Structure Warehouse Structural Metal Frame
Specifications
Brand Name :
YDX
Model Number :
YDX-FB1
Certification :
CE ISO SGS
Place of Origin :
CHINA,QINGDAO
MOQ :
10-10000 square meters
Price :
$30.00-$65.00
Payment Terms :
T/T
Supply Ability :
10000 tons/month
Delivery Time :
20-30 works days
Packaging Details :
Exported standard packing
Size: :
Customized
Color: :
Customized
Material: :
Steel, Purlin, Column
Use: :
Warehouse, Workshop
Roof: :
Glass Wool, EPS, PU
Structure Type :
Frame
Frame Type :
Steel Frame
Earthquake Resistance :
Strong
Windows :
Aluminum
Seismic Design :
High Seismic Zone
Installation Time :
Short
Aesthetics :
Modern
Construction Type :
Frame
Cost :
Moderate
Product Resistance :
Corrosion Resistant
Finish :
Galvanized/Painted/Cladding
Roof :
Glass Wool, EPS, PU
Product Fire Resistance :
Fireproof
Door :
Sliding Door or Rolling Door
Description

Modular Prefabricated Steel Structure Warehouse High Quality Structural Metal Frame

Product Description

Steel buildings are the most flexible solutions on the market for contractors, builders, do it yourselfers and their families. These durable, virtually no maintenance building solutions come with significant benefits. Custom engineering and design of today's metal buildings allow owners to have the look they want, with the functionality they need.

The stringent state-of-the-art requirements of today's building owners demand that their building system employ not only advanced designs, but also offer flexibility, energy efficiency, and speedy construction times. When a steel building is used, design, fabrication, and construction times are greatly reduced. And future expansion is uncomplicated.

Structure Specification

Product Application
Light Frame Steel Construction Hangar Design Prefabricated Steel Structure Factory Building Workshop warehouse
A pre-engineered steel building is a modern technology where the complete designing is done at the factory and the building components are brought to the site and then fixed/jointed at the site, all is bolt connection, no need any welding!
An efficiently designed pre-engineered building can be lighter than the conventional steel buildings by up to 30%. Lighter weight equates to less steel and potential price savings in structural framework.
SPECIFICATION FOR STEEL STRUCTURE BUILDING

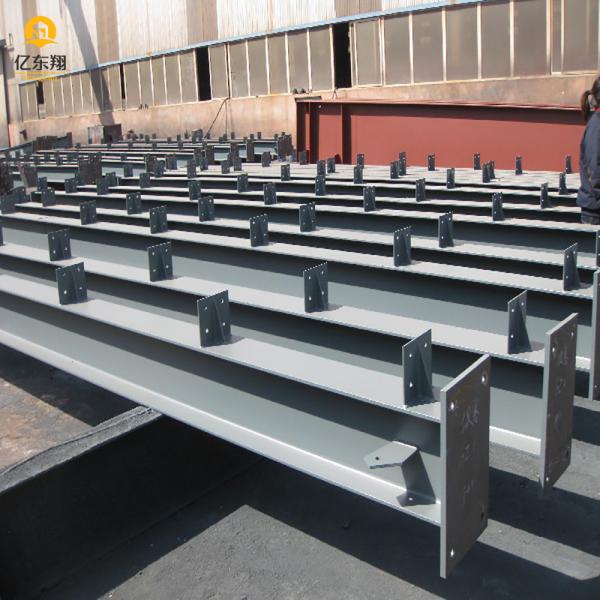

Main Steel Frame Steel Column & Beam 1. Material: Q345B (S355JR) or Q235B(S235JR)/ Welded/Hot Rolled H section steel
2. Surface: Hot Dip Galvanized or Painted;
3. Connection: All Bolts Connection;
Supporting System Roof Purlin C or Z Section Steel, Q235B
Wall Purlin C or Z Section Steel, Q235B
Bracing Steel Rod, Q235B
Cross Support Steel Rod, Q235B
Column Support Angle Steel; Steel Rod; Q235B
Angle Brace Angle steel,Q235B
Tie Bar Steel Pipe,Q235B
Roof & Wall System 1. Single Colorful Corrugated Steel Sheet;
Thickness: 0.3-0.8mm
2. Sandwich Panel with EPS, Rock Wool, Fiberglass,PU;
Thickness: 50-150mm;
Accessories Door Sliding; Rolled Up Door (Manual/Auto)
Window Aluminum Alloy; PVC;
Downspout PVC pipe;
Gutter Galvanized Steel Sheet; Stainless Steel
Ventilator Stainless Steel Turbine Ventilator
Skylight Belt FRP or PC semi-transparent Skylight Belt
Flash Color Steel Sheet
Fittings Anchor Bolt; High Strength Bolt; Standard Bolt, Self-tapping nail etc

Modular Prefabricated Steel Structure Warehouse Structural Metal Frame

Modular Prefabricated Steel Structure Warehouse Structural Metal Frame

Modular Prefabricated Steel Structure Warehouse Structural Metal Frame

Steel Designing & Detailing

Our dedicated engineering department provides complete steel structure design services, including optimization and deepening design. We ensure structural reliability and economy while considering material performance and architectural aesthetics.

Modular Prefabricated Steel Structure Warehouse Structural Metal Frame

Packing & Loading

All structural components, panels, bolts, and accessories are packed to withstand ocean transportation and loaded into 40'HQ containers.

Modular Prefabricated Steel Structure Warehouse Structural Metal Frame

Our Advantages

1. Professional Design Team We provide customized design services based on your requirements or calculate steel quantities from your existing drawings.
2. Skilled Fabrication Our advanced equipment and trained workforce follow project-specific production schedules with pre-fabrication training.
3. One-Stop Service We offer complete project solutions with extensive experience in customized steel structure projects.
4. Quality Control Dedicated QC team ensures products meet all specifications and requirements.
5. After-Sales Service Comprehensive support including maintenance services for insulation and steel components.
1 Location (where will be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. snow height) _____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much
lower than that of the former
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
