Custom Large Span Prefabricated Steel Warehouse Building
Custom Large Span Prefabricated Steel Warehouse Building
Custom Large Span Prefabricated Steel Warehouse Building
Custom Large Span Prefabricated Steel Warehouse Building
Custom Large Span Prefabricated Steel Warehouse Building
Custom Large Span Prefabricated Steel Warehouse Building
Custom Large Span Prefabricated Steel Warehouse Building
Custom Large Span Prefabricated Steel Warehouse Building
Custom Large Span Prefabricated Steel Warehouse Building
Custom Large Span Prefabricated Steel Warehouse Building
Custom Large Span Prefabricated Steel Warehouse Building
Custom Large Span Prefabricated Steel Warehouse Building
Specifications
Brand Name :
YDX
Model Number :
YDX-62D
Certification :
CE ISO SGS
Place of Origin :
CHINA,QINGDAO
MOQ :
50-10000 square meters
Price :
$35.00-$63.00
Payment Terms :
T/T
Supply Ability :
10000 tons/month
Delivery Time :
20-30 works days
Packaging Details :
Exported standard packing
Longevity :
Long-lasting
Installation :
fast
Sustainability :
Eco-friendly
Wind Load :
Up to 200 mph
Product Material :
Steel Structure
Product Design :
Customizable
Product Type :
Construction Material
Versatility :
High
Finish :
Galvanized/Painted/Cladding
Product Usage :
Building Construction
Door :
Walk Door, Sliding Door, Roller Door
Color :
Client's Request
Description

Custom Large Span Prefabricated Steel Structure Warehouse Building

Product Overview

Large-span steel structures represent the future of modern construction, offering superior strength and durability for industrial applications. With spans exceeding 60 meters, these structures eliminate the need for excessive support columns, creating expansive, unobstructed spaces ideal for warehouses, factories, and commercial facilities. Our prefabricated steel buildings combine cost-effectiveness with rapid assembly, reducing construction timelines and labor costs. The modular design allows for future expansion and customization to meet evolving business needs.

Steel structure building
1. Primary Framing Box beam column, cross steel column, H-shaped steel column, steel beam
2. Secondary Framing Galvanized Z and C sections purlin
3. Roof and Wall panels Steel sheet and insulated sandwich panels (EPS, fiberglass wool and PU).
4. Steel Decking Floor Galvanized steel decking board
5.Structural subsystem Divider, gutter, awning, partition wall
6.Mezzanines, Platforms Painted or galvanized H beam
7.Other Building Accessories Sliding doors, roll up doors, aluminium windows, louvers, etc.
Service Life 50-70years support steel angle, steel pipe, steel round
Place of Origin Qingdao,Shandong,China Application workshop, warehouse, poultry house,garage etc
Grade Q235B, Q355B or as per customer's need Bolt Grade M20, M16, M14 etc
Connection intensive bolt, ordinary bolt Window PVC steel or aluminum alloy
Downspout PVC pipe or as per customer's request Door sliding or rolling door
Purlin C/Z shape profile Panel EPS/PU/fiber glass/rock wool
Main Frame Welded or hot rolled H-shaped steel, columns, beams, box beams and columns
Drawings & Quotation:
(1) Customized design is welcomed.
(2) In order to promise an accurate quotation and drawings, please let us know the length, width, eave height and local weather.We will quote for you promptly.
Product Application
Light Frame Steel Construction Hangar Design Prefabricated Steel Structure Factory Building Workshop warehouse
A pre-engineered steel building is a modern technology where the complete designing is done at the factory and the building components are brought to the site and then fixed/jointed at the site, all is bolt connection, no need any welding!
An efficiently designed pre-engineered building can be lighter than the conventional steel buildings by up to 30%. Lighter weight equates to less steel and potential price savings in structural framework.
SPECIFICATION FOR STEEL STRUCTURE BUILDING
Main Steel Frame Steel Column & Beam 1. Material: Q345B (S355JR) or Q235B(S235JR)/ Welded/Hot Rolled H section steel
2. Surface: Hot Dip Galvanized or Painted;
3. Connection: All Bolts Connection;
Supporting System Roof Purlin C or Z Section Steel, Q235B
Wall Purlin C or Z Section Steel, Q235B
Bracing Steel Rod, Q235B
Cross Support Steel Rod, Q235B
Column Support Angle Steel; Steel Rod; Q235B
Angle Brace Angle steel,Q235B
Tie Bar Steel Pipe,Q235B
Roof & Wall System 1. Single Colorful Corrugated Steel Sheet;
Thickness: 0.3-0.8mm
2. Sandwich Panel with EPS, Rock Wool, Fiberglass,PU;
Thickness: 50-150mm;
Accessories Door Sliding; Rolled Up Door (Manual/Auto)
Window Aluminum Alloy; PVC;
Downspout PVC pipe;
Gutter Galvanized Steel Sheet; Stainless Steel
Ventilator Stainless Steel Turbine Ventilator
Skylight Belt FRP or PC semi-transparent Skylight Belt
Flash Color Steel Sheet
Fittings Anchor Bolt; High Strength Bolt; Standard Bolt, Self-tapping nail etc

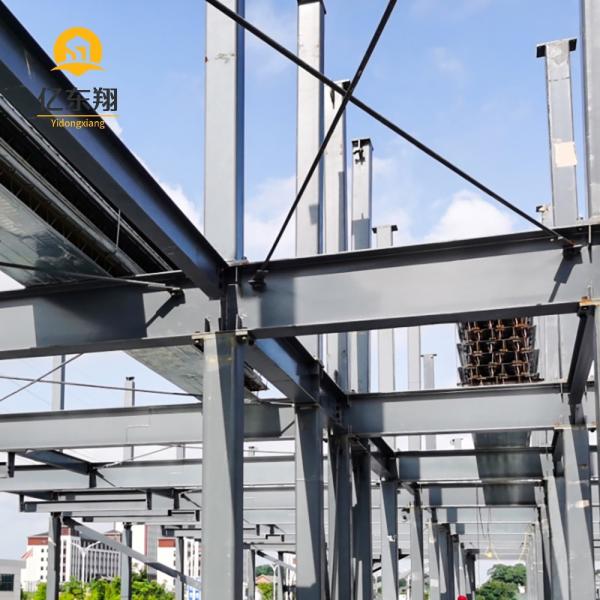

Multi-Story Steel Structure Applications

Multi-story steel buildings provide exceptional load-bearing capacity while maximizing usable space. Their inherent flexibility makes them suitable for:

  • Commercial complexes and office buildings
  • Industrial manufacturing facilities
  • Warehousing and logistics centers
  • Retail spaces and shopping malls
  • Residential apartment buildings

Custom Large Span Prefabricated Steel Warehouse Building

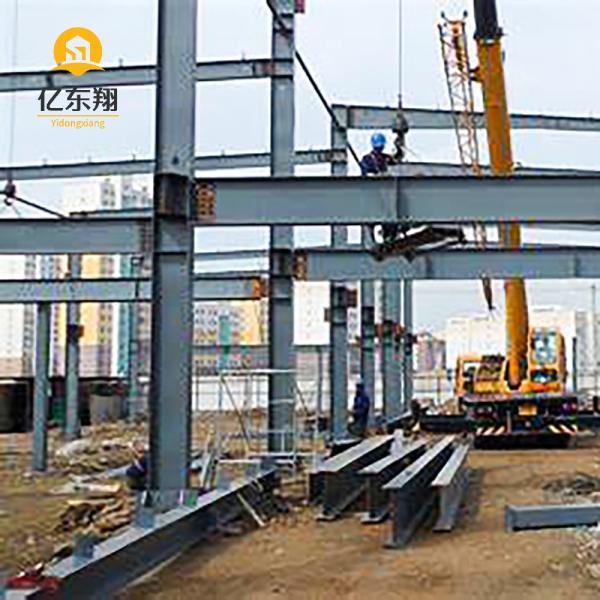

Installation Support

We provide comprehensive installation assistance through:

  1. Detailed shop drawings prior to installation
  2. On-site training at our factory
  3. Sample assembly demonstrations
  4. Optional engineer dispatch for complex projects

Custom Large Span Prefabricated Steel Warehouse Building

Packaging and Shipping

All structural components, panels, bolts, and accessories are securely packed for ocean transportation in 40'HQ or 40'OT containers. Our skilled loading team uses cranes and forklifts to prevent damage during transit.

Custom Large Span Prefabricated Steel Warehouse Building

Why Choose Our Steel Structures
  • Professional design team offering customized CAD, TEKLA, and BIM solutions
  • Skilled fabrication team with advanced production equipment
  • Comprehensive project management from design to installation
  • Dedicated quality control team ensuring product excellence
  • Responsive after-sales service and technical support
Request a Quote

Please provide the following information for an accurate quotation:

1. Location (where will it be built?) _____country, area
2. Size: length*width*height _____mm*_____mm*_____mm
3. Wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4. Snow load (max. snow height) _____kn/m2, _____mm
5. Anti-earthquake _____level
6. Brickwall needed or not If yes, 1.2m high or 1.5m high
7. Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; if not, the metal steel sheets will be ok
8. Door quantity & size _____units, _____(width)mm*_____(height)mm
9. Window quantity & size _____units, _____(width)mm*_____(height)mm
10. Crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
