Specifications
Brand Name :
YDX
Model Number :
YDX-D4S
Certification :
CE ISO SGS
Place of Origin :
CHINA,QINGDAO
MOQ :
50-10000 square meters
Price :
$35.00-$63.00
Payment Terms :
T/T
Supply Ability :
10000 tons/month
Delivery Time :
20-30 works days
Packaging Details :
Exported standard packing
Drawing :
CAD, TEKLA, 3D Model, PKPM, BIM
Connect :
Bolt/Weld
Speed Of Construction :
Fast
Corrosion Resistance :
High
Cladding :
PU/Rock Wool/Fiberglass/EP
Windows :
Aluminum
Product Flexibility :
Flexible
Apply :
Easy to Apply
Design :
Custom For Free
Frame Type :
Steel Frame
Installation Time :
Faster construction time
Installation :
Engineer Guidance On Site
Shape :
As The Customer Request
Door :
Aluminum Or Steel Wood Door
Description

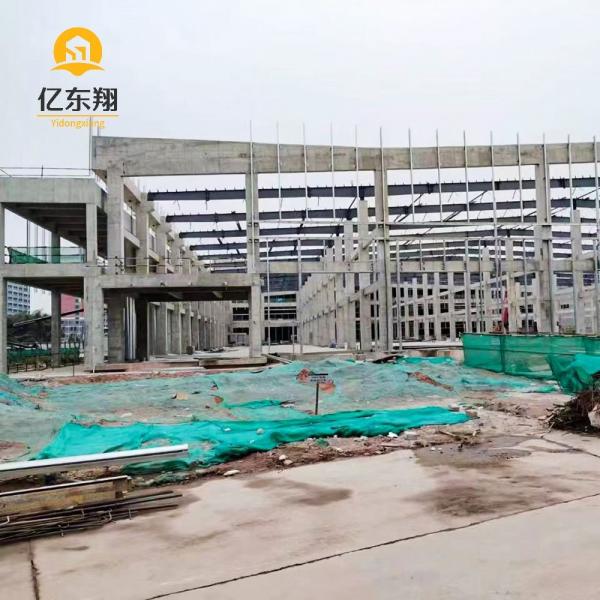

Portal Steel Frame Structure Building For Activity Center

Project Introduction:

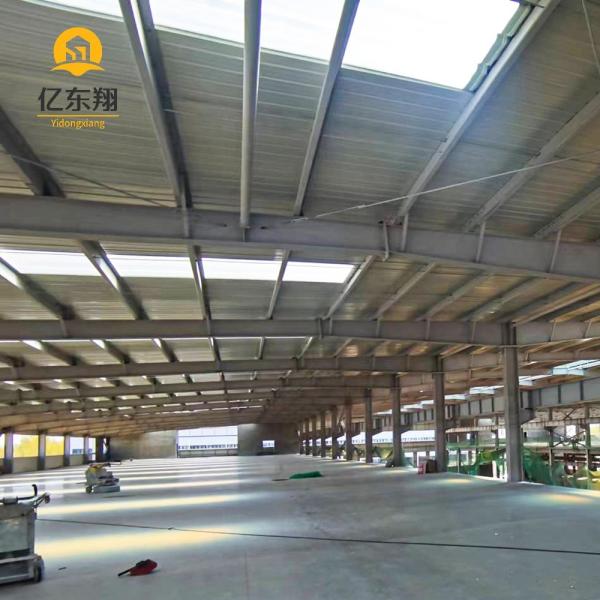

Welded H section steel beams and columns are connected by high strength bolts to be the main steel frame structure. Clean span that without center column could provide large space. Double row windows light up inside. Environmental epoxy floor coating has better dustproof property and makes the floor smooth. It also has a double storeys office building inside.

Project Details:

Steel structure building
1. Primary Framing Box beam column, cross steel column, H-shaped steel column, steel beam
2. Secondary Framing Galvanized Z and C sections purlin
3. Roof and Wall panels Steel sheet and insulated sandwich panels (EPS, fiberglass wool and PU).
4. Steel Decking Floor Galvanized steel decking board
5.Structural subsystem Divider, gutter, awning, partition wall
6.Mezzanines, Platforms Painted or galvanized H beam
7.Other Building Accessories Sliding doors, roll up doors, aluminium windows, louvers, etc.
Service Life 50-70years support steel angle, steel pipe, steel round
Place of Origin Qingdao,Shandong,China Application workshop, warehouse, poultry house,garage etc
Grade Q235B, Q355B or as per customer's need Bolt Grade M20, M16, M14 etc
Connection intensive bolt, ordinary bolt Window PVC steel or aluminum alloy
Downspout PVC pipe or as per customer's request Door sliding or rolling door
Purlin C/Z shape profile Panel EPS/PU/fiber glass/rock wool
Main Frame Welded or hot rolled H-shaped steel, columns, beams, box beams and columns
Drawings & Quotation:
(1) Customized design is welcomed.
(2) In order to promise an accurate quotation and drawings, please let us know the length, width, eave height and local weather.We will quote for you promptly.
Product Application
Light Frame Steel Construction Hangar Design Prefabricated Steel Structure Factory Building Workshop warehouse
A pre-engineered steel building is a modern technology where the complete designing is done at the factory and the building components are brought to the site and then fixed/jointed at the site, all is bolt connection, no need any welding!
An efficiently designed pre-engineered building can be lighter than the conventional steel buildings by up to 30%. Lighter weight equates to less steel and potential price savings in structural framework.
SPECIFICATION FOR STEEL STRUCTURE BUILDING
Main Steel Frame Steel Column & Beam 1. Material: Q345B (S355JR) or Q235B(S235JR)/ Welded/Hot Rolled H section steel
2. Surface: Hot Dip Galvanized or Painted;
3. Connection: All Bolts Connection;
Supporting System Roof Purlin C or Z Section Steel, Q235B
Wall Purlin C or Z Section Steel, Q235B
Bracing Steel Rod, Q235B
Cross Support Steel Rod, Q235B
Column Support Angle Steel; Steel Rod; Q235B
Angle Brace Angle steel,Q235B
Tie Bar Steel Pipe,Q235B
Roof & Wall System 1. Single Colorful Corrugated Steel Sheet;
Thickness: 0.3-0.8mm
2. Sandwich Panel with EPS, Rock Wool, Fiberglass,PU;
Thickness: 50-150mm;
Accessories Door Sliding; Rolled Up Door (Manual/Auto)
Window Aluminum Alloy; PVC;
Downspout PVC pipe;
Gutter Galvanized Steel Sheet; Stainless Steel
Ventilator Stainless Steel Turbine Ventilator
Skylight Belt FRP or PC semi-transparent Skylight Belt
Flash Color Steel Sheet
Fittings Anchor Bolt; High Strength Bolt; Standard Bolt, Self-tapping nail etc

Custom Steel Frame Building for Activity Centers Fast Construction

Advantages of prefabricated steel structure buildings:

1 High strength and light weight Although the density of steel is larger than that of other building materials, its strength is very high. Under the same force, the steel structure has a small weight and can be made into a structure with a large span.
2 Good plasticity and good toughness The plasticity of the steel is good, and the structure will not suddenly break due to accidental overload or partial overload. The toughness of the steel is good, making the structure more adaptable to dynamic loads.
3 High degree of industrialization in production The steel structure is mainly produced in a specialized metal structure factory, so the production is simple and the precision is high.
4 Simple construction and short construction period All components are prefabricated at the factory, and the site is simply assembled, which greatly shortens the construction period.
5 Wind resistance and structural stability Steel structure construction with light weight, high strength, good overall rigidity and strong deformation ability
6 Saving construction costs The steel structure has light weight, reduces the basic cost, and has a fast construction speed. It can be completed and put into operation as soon as possible, and the comprehensive economic benefits are much better than the concrete structure.
7 Recyclable Steel can be recycled, less environmentally polluted when constructed and removed
