Prefabricated Steel Frame Buildings Metal Building Frame Structure Warehouse
Prefabricated Steel Frame Buildings Metal Building Frame Structure Warehouse
Prefabricated Steel Frame Buildings Metal Building Frame Structure Warehouse
Prefabricated Steel Frame Buildings Metal Building Frame Structure Warehouse
Prefabricated Steel Frame Buildings Metal Building Frame Structure Warehouse
Prefabricated Steel Frame Buildings Metal Building Frame Structure Warehouse
Prefabricated Steel Frame Buildings Metal Building Frame Structure Warehouse
Prefabricated Steel Frame Buildings Metal Building Frame Structure Warehouse
Prefabricated Steel Frame Buildings Metal Building Frame Structure Warehouse
Prefabricated Steel Frame Buildings Metal Building Frame Structure Warehouse
Specifications
Brand Name :
YDX
Model Number :
YDX-DJ
Certification :
CE ISO SGS
Place of Origin :
CHINA,QINGDAO
MOQ :
10-10000 square meters
Price :
$30.00-$65.00
Payment Terms :
T/T
Supply Ability :
10000 tons/month
Delivery Time :
20-30 works days
Packaging Details :
Exported standard packing
Application: :
Metal Building Frame Structure Warehouse
Usage: :
Steel Structure Workshop, Metal Warehouse, Factory Buildings, Garment Factory
Type: :
Prefabricated Steel Frame Buildings
Surface Treatment: :
Painting Or Hot-dip Galvanize
Wall And Roof: :
Steel Cladding
Columns And Beam: :
H Section Column&Beam
Structure Type :
Frame
Frame Type :
Steel Frame
Earthquake Resistance :
Strong
Windows :
Aluminum
Seismic Design :
High Seismic Zone
Installation Time :
Short
Aesthetics :
Modern
Construction Type :
Frame
Cost :
Moderate
Product Resistance :
Corrosion Resistant
Finish :
Galvanized/Painted/Cladding
Roof :
Glass Wool, EPS, PU
Product Fire Resistance :
Fireproof
Door :
Sliding Door or Rolling Door
Description

Prefabricated Steel Frame Buildings Metal Building Frame Structure Warehouse

Prefabricated Steel Frame Buildings Metal Building Frame Structure Warehouse. This steel strucre building is used as a car shop. The construction floor area is about 3200 square meters. We provide wleded steel beam&column, crane, steel cladding sheet, purlin, window and doors and other accessory.

We are a professional steel structure fabrication and construction company for light and heavy steel structure project. Our service include design, fabrication for all the steel structure components and insullation panel, installation on site.

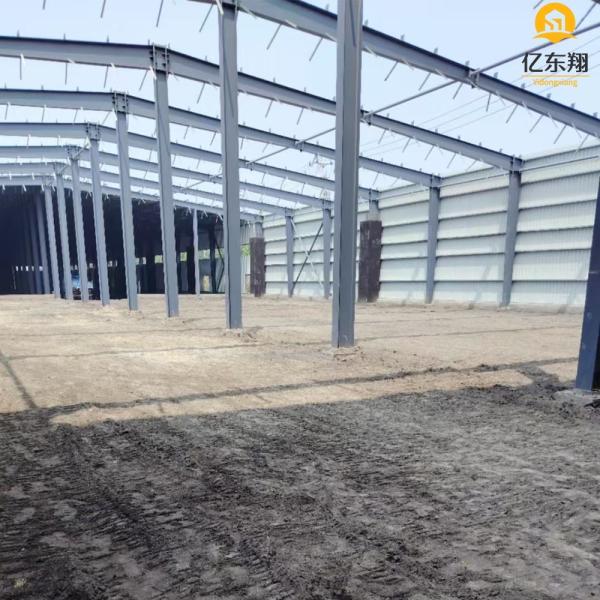

1. Main steel frame structure

Prefabricated Steel Frame Buildings Metal Building Frame Structure Warehouse

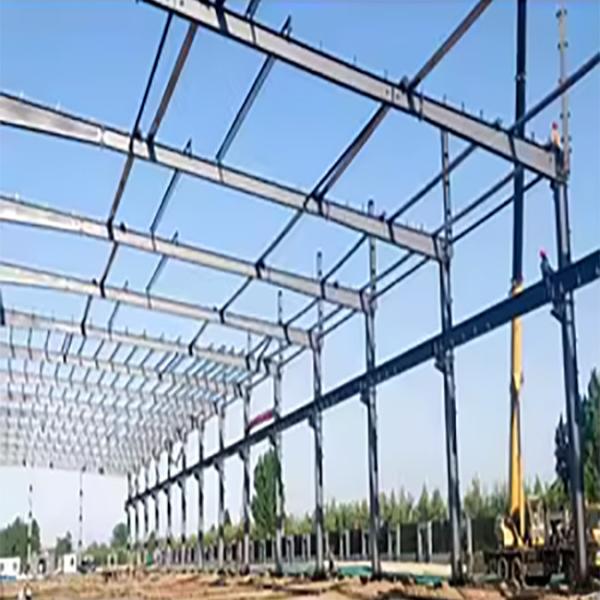

2. Laying purlin

Prefabricated Steel Frame Buildings Metal Building Frame Structure Warehouse

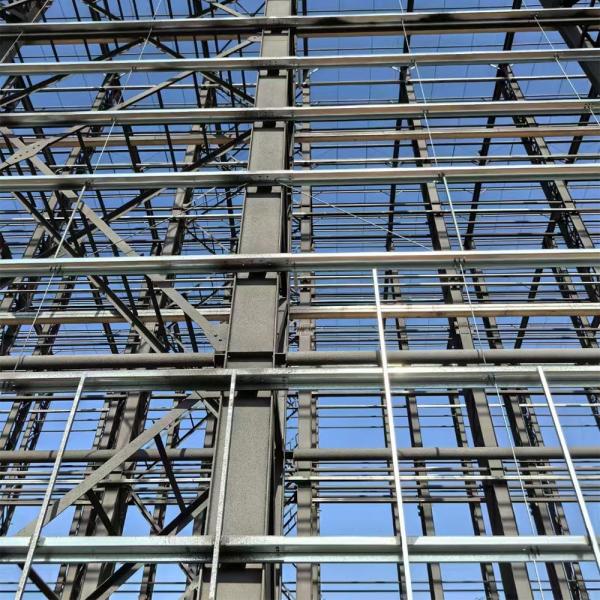

3. H section steel column

Prefabricated Steel Frame Buildings Metal Building Frame Structure Warehouse

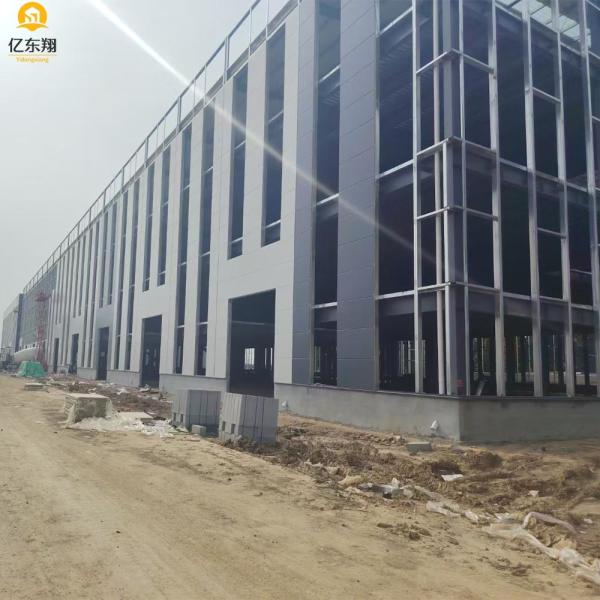

4. End wall

Prefabricated Steel Frame Buildings Metal Building Frame Structure Warehouse

Steel structure building
1. Primary Framing Box beam column, cross steel column, H-shaped steel column, steel beam
2. Secondary Framing Galvanized Z and C sections purlin
3. Roof and Wall panels Steel sheet and insulated sandwich panels (EPS, fiberglass wool and PU).
4. Steel Decking Floor Galvanized steel decking board
5.Structural subsystem Divider, gutter, awning, partition wall
6.Mezzanines, Platforms Painted or galvanized H beam
7.Other Building Accessories Sliding doors, roll up doors, aluminium windows, louvers, etc.
Service Life 50-70years support steel angle, steel pipe, steel round
Place of Origin Qingdao,Shandong,China Application workshop, warehouse, poultry house,garage etc
Grade Q235B, Q355B or as per customer's need Bolt Grade M20, M16, M14 etc
Connection intensive bolt, ordinary bolt Window PVC steel or aluminum alloy
Downspout PVC pipe or as per customer's request Door sliding or rolling door
Purlin C/Z shape profile Panel EPS/PU/fiber glass/rock wool
Main Frame Welded or hot rolled H-shaped steel, columns, beams, box beams and columns
Drawings & Quotation:
(1) Customized design is welcomed.
(2) In order to promise an accurate quotation and drawings, please let us know the length, width, eave height and local weather.We will quote for you promptly.

Why did you choose us?

Many customers have visited our factory for the long term cooperation."Quality firstly,Customer firstly" is our company principle.We obtain sound reputation because of our good quality and service. Meanwhile,We pay attention to the team work and value win-win cooperation, which would guide us much further.

  1. Low cost---Professional design, less construction time; saving raw materials.
  2. Environmental protection---specialized cladding materials guarantee excellent acoustic and insulation performance; no pollution ;Raw material can be recycled
  3. Comfortable and aesthetic---higher using areas and bigger building bays afford us wider viewpoints; distinctive and elegant profiles.

Packing & Loading:

All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.

All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.

Prefabricated Steel Frame Buildings Metal Building Frame Structure Warehouse

1 Location (where will be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. snow height) _____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much
lower than that of the former
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
