Iso9001 Self Supporting Tripod Rooftop Cell Tower 15m Tv Transmitter Towers
Iso9001 Self Supporting Tripod Rooftop Cell Tower 15m Tv Transmitter Towers
Iso9001 Self Supporting Tripod Rooftop Cell Tower 15m Tv Transmitter Towers
Iso9001 Self Supporting Tripod Rooftop Cell Tower 15m Tv Transmitter Towers
Iso9001 Self Supporting Tripod Rooftop Cell Tower 15m Tv Transmitter Towers
Iso9001 Self Supporting Tripod Rooftop Cell Tower 15m Tv Transmitter Towers
Iso9001 Self Supporting Tripod Rooftop Cell Tower 15m Tv Transmitter Towers
Iso9001 Self Supporting Tripod Rooftop Cell Tower 15m Tv Transmitter Towers
Specifications
Brand Name :
GUANGXIN
Model Number :
RTS-003
Certification :
ISO9001
Place of Origin :
Guangzhou, China
MOQ :
1 set
Price :
USD2000 per set
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
800 sets per month
Delivery Time :
20-30 days
Packaging Details :
wooden pallet and cartons
Name :
Rooftop Cell Tower，Tv Transmitter Towers
Height :
5m to 15m
Type :
Self-supporting communication tower
Materials :
Q235 or Q345 galvanized steel pipes and angle steel plates
Brackets :
3-12 brackets for mounting antennas, microwaves, RRUs etc.
Installation :
fixed by anchor bolts and nuts
Application :
telecommunication signal transsision and reception
Description

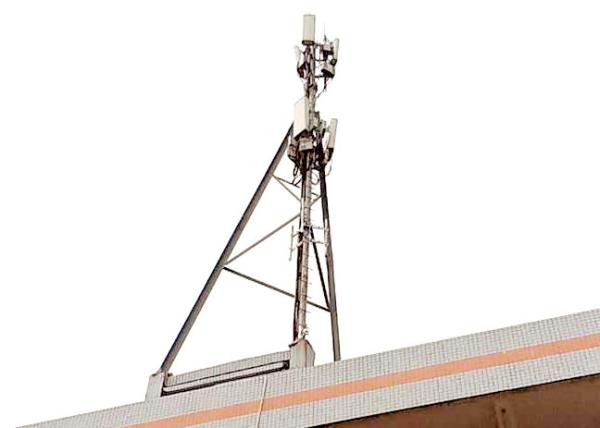

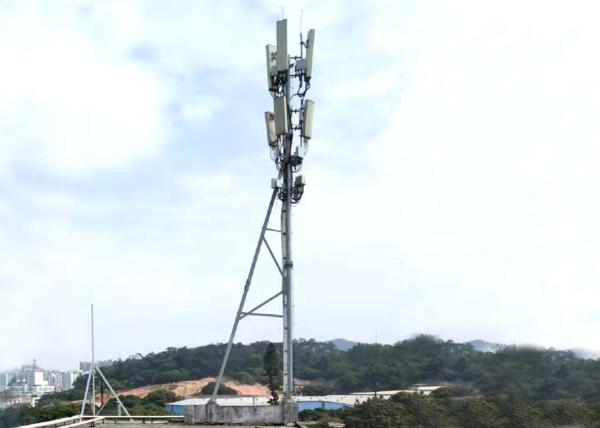

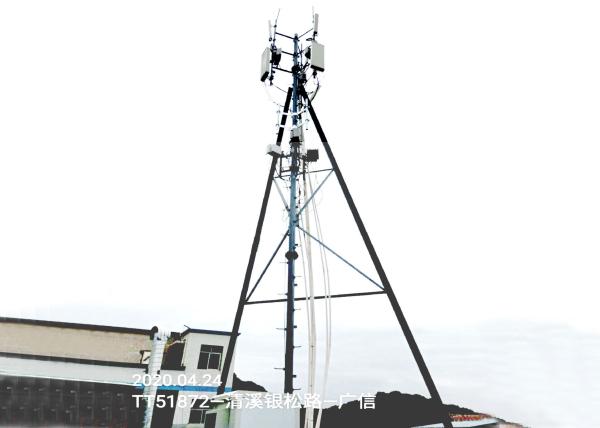

Self Supporting Tripod Rooftop Cell Tower 15m Tv Transmitter Towers

5-15m high Self-supporting Steel Rooftop Communication Antenna Tower with Custom Designs and Fabrication

Tv Transmitter Towers Descriptions

1, Material: galvanized steel pipes, angle steels, steel plates, bolts and nuts

2, Height: 5m to 15m or customized to requirements

3, Type: self-supporting tripod tower

4, Fixation: anchoring bolts

5, Applications: GSM, FM radio, 5G antennas, microwaves, RRUs etc.

Material Steel pipe/tubes, Angle steel plates, flat steel plates, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 5m to 20m, customized to requests
Design 3 legs self-supporting or free standing lattice tower
Structure 1 to 2 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-2 platforms (optional), mounting brackets, ladder or steps, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations, TV signal transmission.

Easy operation and installation rooftop communication tower

Climbable strong self-supporting steel tower

Not only 3-legs tripod tower design but also 4-legs lattice tower design

How long can you deliver?

15-35 days after confirming shop drawings, depending on order quantity.

What’s your advantages comparing with other suppliers?

We have been specializing in this field for more than 10 years since 2009, we have professional engineers and designers, skilled workers, advanced production line equipped with CNC and laser cutting machines, welding machines, shaping machines, test instruments etc., we can produce the poles and towers or other steel frameworks according to customers’ designs, specifications, drawings, requirements. Our quality is very good but price is reasonable and competitive. We’re also providing excellent in-sales and after-sales services. We always provide good quality products and services beyond customers’ expectations.

Can I customize the towers, poles or frameworks?

Yes, we can fabricate the towers, poles, frameworks or other related products according to your drawings, specifications and requirements.

What’s your payment terms?

T/T or irrevocable documentary L/C is accepted for us. The general payment arrangement is 30% down payment before production and full payment before shipping by T/T, or L/C issued before production.
