Hot Dip Steel Rooftop Telecommunication Tower Q235 Microwave Towers
Hot Dip Steel Rooftop Telecommunication Tower Q235 Microwave Towers
Hot Dip Steel Rooftop Telecommunication Tower Q235 Microwave Towers
Hot Dip Steel Rooftop Telecommunication Tower Q235 Microwave Towers
Hot Dip Steel Rooftop Telecommunication Tower Q235 Microwave Towers
Hot Dip Steel Rooftop Telecommunication Tower Q235 Microwave Towers
Hot Dip Steel Rooftop Telecommunication Tower Q235 Microwave Towers
Hot Dip Steel Rooftop Telecommunication Tower Q235 Microwave Towers
Specifications
Brand Name :
GUANGXIN
Model Number :
RTT-022
Certification :
ISO9001
Place of Origin :
Guangzhou, China
MOQ :
1 set
Price :
USD198-2038 per piece
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
1000 sets per month
Delivery Time :
20-30 days
Packaging Details :
wooden pallet and cartons
Name :
microwave towers
Material :
Weldable Structural Steel pipes and Plates
Surface Finish :
Hot dip galvanization
Height :
5m to 20m
Design :
Climbable bipod tower with mounting brackets
Lifspan :
20-50 years
Warranty :
3 years
Delivery time :
20-30 days
Applications :
communication antenna stations, TV signal transmission
Description

Hot Dip Steel Rooftop Telecommunication Tower Q235 Microwave Towers

Galvanized Steel Bipod Rooftop Communication Antenna Tower

Rooftop Telecommunication Tower Easy Constructed Self-supporting Rooftop Steel Tower for Mounting 5G Microcell Signal Transmission Stations

Bipod, Tripod or Lattice Rooftop Steel Tower

Free Standing Galvanized Steel Rooftop Towers

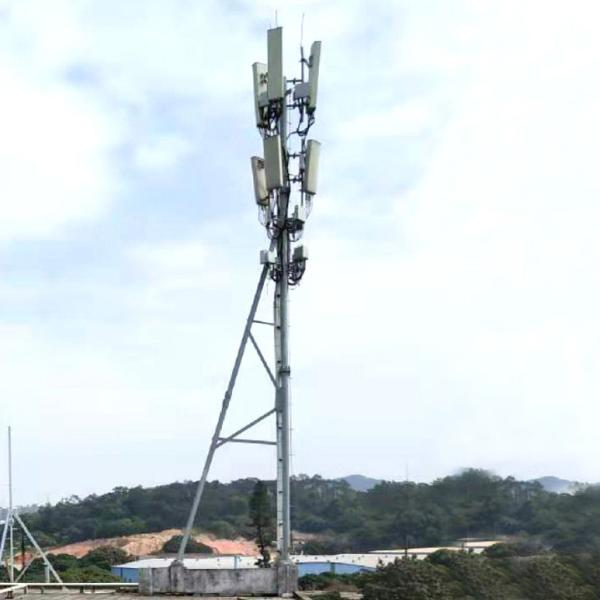

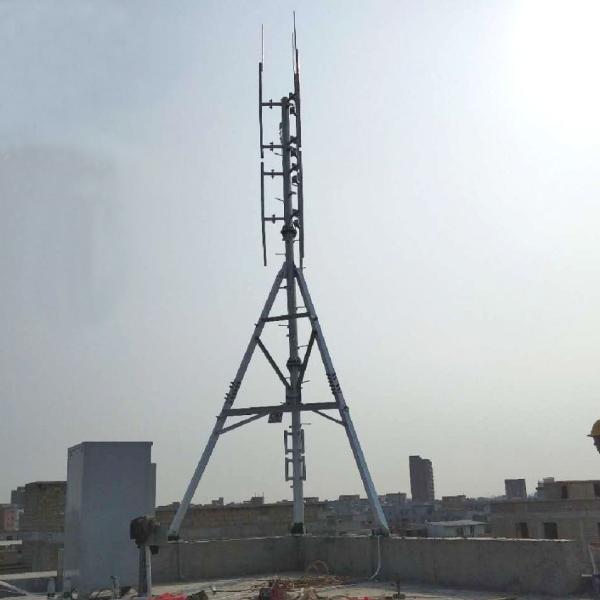

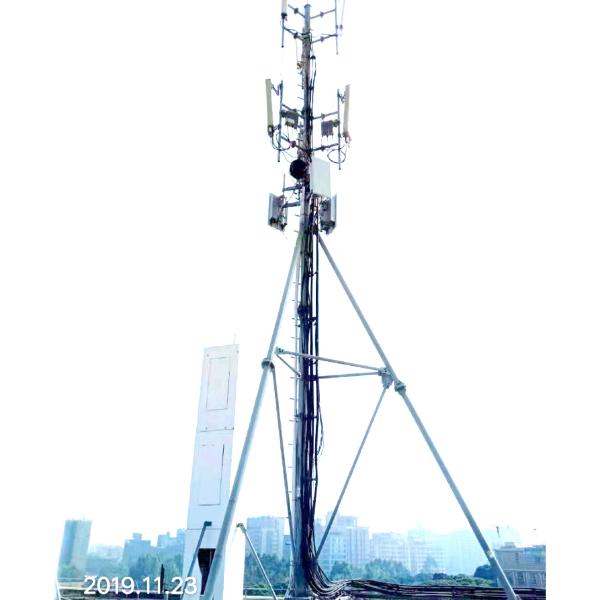

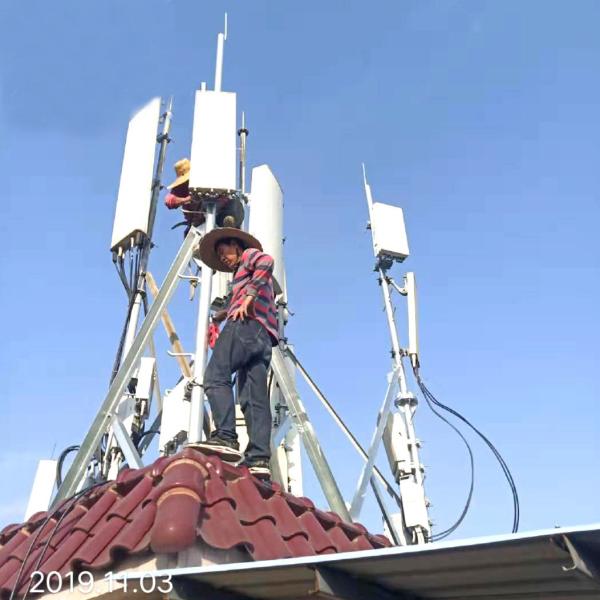

Rooftop Telecommunication Tower The rooftop steel tower is a small size tower for communication microcell station for enlarging the telecommunication signal coverage in the communities. It is typically designed as bipod or tripod tower mounted on the roof top, the height of rooftop towers is generally 5m to 20m. The rooftop tower is composed of a main pole which is made from tubular steel pipe and some angle steel or flat steel plates as braces, connected by flanges, flat plates, bolts and nuts.

Specifications

Material Steel pipe/tubes, Angle steel plates, flat steel plates, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 5m to 20m, customized to requests
Design 3 legs bipod, tripod self-supporting or free standing lattice tower
Structure 1 to 2 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-2 platforms (optional), mounting brackets, ladder or steps, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations, TV signal transmission.

How long can you deliver?

15-35 days after confirming shop drawings, depending on order quantity.

What’s your advantages comparing with other suppliers?

We have been specializing in this field for more than 10 years since 2009, we have professional engineers and designers, skilled workers, advanced production line equipped with CNC and laser cutting machines, welding machines, shaping machines, test instruments etc., we can produce the poles and towers or other steel frameworks according to customers’ designs, specifications, drawings, requirements. Our quality is very good but price is reasonable and competitive. We’re also providing excellent in-sales and after-sales services. We always provide good quality products and services beyond customers’ expectations.
