5G Microcell Telecom 20m Roof Mount Antenna Tower Climbable ISO9001
5G Microcell Telecom 20m Roof Mount Antenna Tower Climbable ISO9001
Specifications
Brand Name :
GUANGXIN
Model Number :
RTT-026
Certification :
ISO9001
Place of Origin :
Guangzhou, China
MOQ :
1 set
Price :
USD198-2038 per piece
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
1000 sets per month
Delivery Time :
20-30 days
Packaging Details :
wooden pallet and cartons
Name :
Roof Mount Antenna Tower
Material :
Weldable Structural Steel pipes and Plates
Surface Finish :
Hot dip galvanization
Height :
5m to 20m
Design :
Climbable bipod tower with mounting brackets
Lifspan :
20-50 years
Warranty :
3 years
Delivery time :
20-30 days
Applications :
communication antenna stations, TV signal transmission
Description

5G Microcell Telecom 20m Roof Mount Antenna Tower Climbable ISO9001

Galvanized Steel Tripod Rooftop Mast 5G Microcell Telecom Antenna Tower

Self-supporting steel communication tower

4 legged angular lattice tower made up of galvanized steel flat plates and angle steel plates

FM radio transmission tower, GSM 3G, 4G, 5G communication microwave and antenna tower

high mast galvanized steel lattice tower for communication transmission stations

Custom designed and fabricated steel tower for worldwide communication applications.

The rooftop steel tower is a small size tower for communication microcell station for enlarging the telecommunication signal coverage in the communities. It is typically designed as bipod or tripod tower mounted on the roof top, the height of rooftop towers is generally 5m to 20m. The rooftop tower is composed of a main pole which is made from tubular steel pipe and some angle steel or flat steel plates as braces, connected by flanges, flat plates, bolts and nuts. A foundation with anchoring bolts is also required for fixing the tower. Sometimes the rooftop tower is designed as wire guyed tower to make it with higher wind load.

Specifications

Material Steel pipe/tubes, Angle steel plates, flat steel plates, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 5m to 20m, customized to requests
Design 3 legs bipod, tripod self-supporting or free standing lattice tower
Structure 1 to 2 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-2 platforms (optional), mounting brackets, ladder or steps, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations, TV signal transmission.

Similar Steel Towers

5G Microcell Telecom 20m Roof Mount Antenna Tower Climbable ISO9001

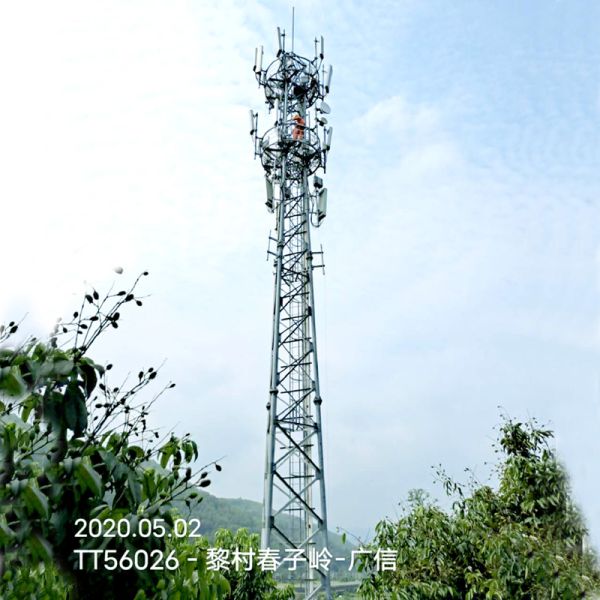

30m High Mast 3 legs tubular Galvanized Steel Lattice Antenna Tower with 2 platforms

5G Microcell Telecom 20m Roof Mount Antenna Tower Climbable ISO9001

50m High 4 legs Self-supporting Angular Steel Communication Tower

5G Microcell Telecom 20m Roof Mount Antenna Tower Climbable ISO9001

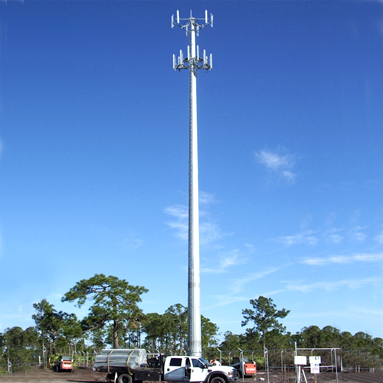

30m High Conical/tapered Communication Monopole Tower with 2 Platforms
