Multifunctional Q235 Transmission Steel Tower For 5G FM Radio Antenna
Multifunctional Q235 Transmission Steel Tower For 5G FM Radio Antenna
Specifications
Brand Name :
GUANGXIN
Model Number :
PTT-026
Certification :
ISO9001
Place of Origin :
Guangzhou, China
MOQ :
1 set
Price :
USD1200-USD1350 per ton
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Delivery Time :
20-30 days
Packaging Details :
wooden pallet and plastic bubble sheets
Name :
distribution Tower
Material :
Steel Plates or pipes
Surface finish :
hot dip galvanization
Height :
30-70m or customized height
Wind Load :
0.35-0.85kN/sqm
Lifespan :
20-50 years
Warranty :
3 years
Applications :
power transmission and distribution wires and calbes mounting
Description

Multifunctional Q235 Transmission Steel Tower For 5G FM Radio Antenna

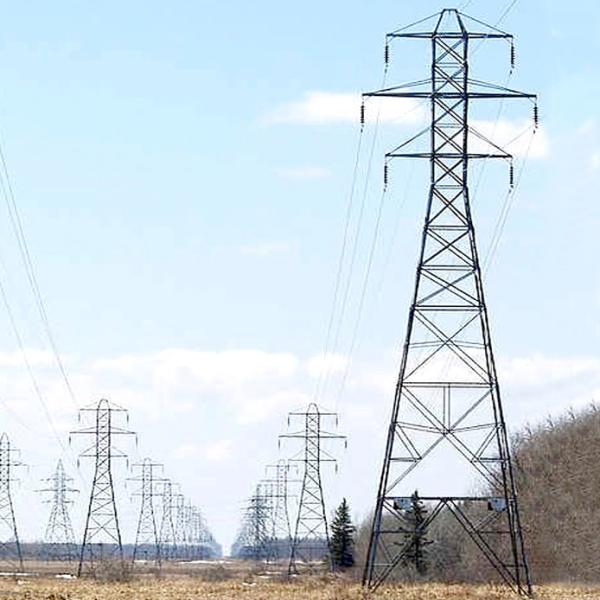

Galvanized Angle Steel Power Transmission and Distribution Tower

The structure of Transmission Steel Tower is generally composed of foundation anchoring bolts (cage frames), sections of tower body, 1 to 5 platforms, mountning brackets, lightning arrest or protection rod, ladder, earthing plates, anti-fall safety system (external cage structure) and fasteners (such as clamps, clips, bolts and nuts etc.). The design, structure and height of telecommunication towers can be customized according to requirements and drawings.

tubular steel tower:

1, Galvanized Steel communication towers and poles

2, Power transmission and distribution steel towers and poles

3, Street, roadway, highway, stadium, traffic and utilities lighting poles

4, Multi-functional smart city light poles

5, High mast steel poles and towers for lighting, communication and landscaping.

Material Steel pipes, Angle steel plates, flat steel plates, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure Multiple platforms and brackets for mounting power cables or wires, customized to requests.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.

4 legged self-support steel lattice tower is generally made of angular steel plates and flat steel plates. The 4-leg lattice tower is generally divided into several sections and the sections are connected by flat connecting plates with bolts and nuts. Each tower section is made of angle steelt plates and flat plates. All the steel plates are prefabricated with cutout, holes and hot dip galvanization.

Multifunctional Q235 Transmission Steel Tower For 5G FM Radio Antenna

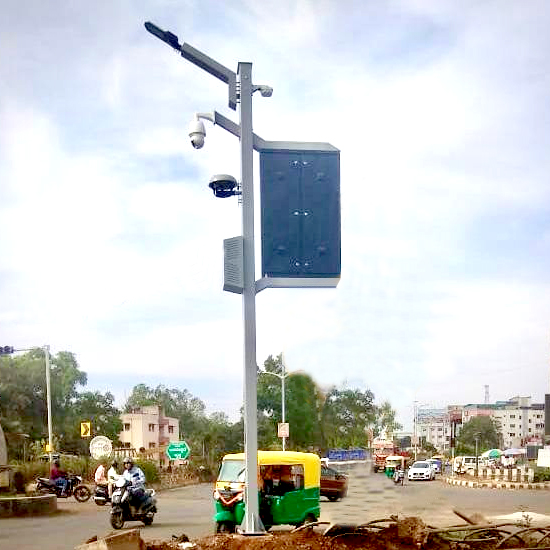

Roadway, highway, street Smart City Management light pole
