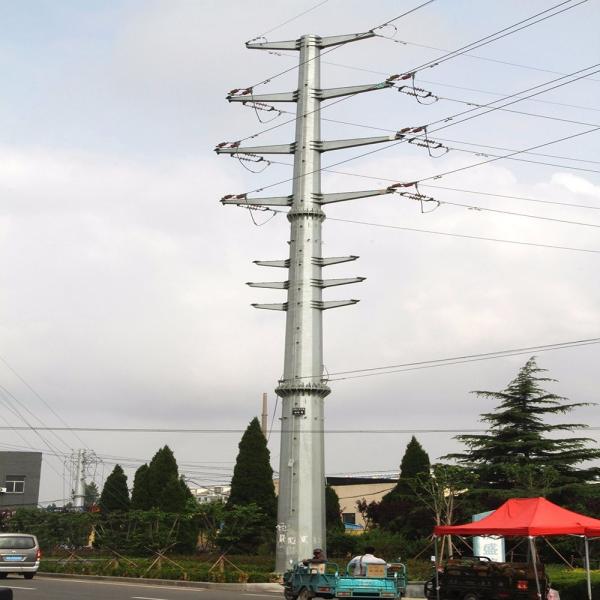

High Mast Tubular Transmission Steel Tower Q345 Metal Power Line Towers
High Mast Tubular Transmission Steel Tower Q345 Metal Power Line Towers
Specifications
Brand Name :
GUANGXIN
Model Number :
PTT-030
Certification :
ISO9001
Place of Origin :
Guangzhou, China
MOQ :
1 set
Price :
USD998-1998 per set
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Delivery Time :
20-30 days
Packaging Details :
wooden pallet and plastic bubble sheets
Name :
Metal Power Line Towers
Material :
Q345
Surface finish :
hot dip galvanization
Height :
30-70m or customized height
Wind Load :
0.35-0.85kN/sqm
Lifespan :
20-50 years
Warranty :
3 years
Applications :
power transmission and distribution wires and calbes mounting
Description

High Mast Tubular Transmission Steel Tower Q345 Metal Power Line Towers

High Mast Galvanized Tubular Steel Power Transmission And Distribution Tower And Pole

High Mast Hot Dip Galvanized Tubular Steel Power Grid Transmission and Distribution Tower

30-70m high mast Angle Steel Power Transmission and Distribution Tower

25-50m High Mast Tubular Steel Pole for power transmission and distribution

The sections of tubular steel lattice tower completely made from steel pipes are generally welded in factory by 5m or longer lattice parts, each section is welded with flange plates for connection among tower sections. When you install the tower, you need to construct foundations with anchoring bolts frame (someone calls it steel cage frame) and concrete. The tower is fixed to foundations via flange plates with bolts and nuts. This kind of tubular steel lattice tower is easier for installation and very solid and strong, but the cost is a little higher and more costly for transportation because all the tower sections are welded in big parts which take more room in the truck or container.

Established in 2009, Guangzhou Guangxin Communication Equipment Co., Ltd. is a professional manufacturer of steel towers and poles for communications, power transmission and distributiion, civil lighting and traffic signal control facilities as well as other infrastructures. Our products range includes:

Transmission Steel Tower Specifications

Material Steel pipes, Angle steel plates, flat steel plates, bolts and nuts Metal Power Line Towers
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 35m
Design 4 legs self-supporting or free standing lattice tower
Structure Multiple platforms and brackets for mounting power cables or wires, customized to requests.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.

Self-supporting steel communication tower

4 legged angular lattice tower made up of galvanized steel flat plates and angle steel plates

FM radio transmission tower, GSM 3G, 4G, 5G communication microwave and antenna tower

25m to 80m high mast galvanized steel lattice tower for communication transmission stations

Custom designed and fabricated steel tower for worldwide communication applications.

All the steel towers are fabricated and delivered according to customer's approved drawings and specifications.

The steel tower is generally composed of foundations, tower body, rest and work platforms, antenna mountning brackets, ladder, lightning rod and earthing leads.

High Mast Tubular Transmission Steel Tower Q345 Metal Power Line Towers
