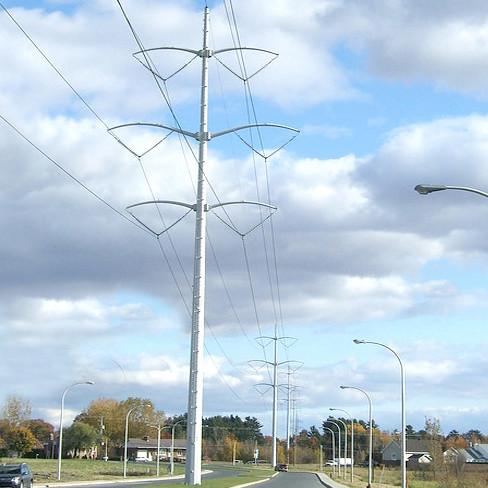

30m Galvanized Transmission Steel Tower Multiple Platforms Free Standing
30m Galvanized Transmission Steel Tower Multiple Platforms Free Standing
Specifications
Brand Name :
GUANGXIN
Model Number :
PTT-014
Certification :
ISO9001
Place of Origin :
Guangzhou, China
MOQ :
1 set
Price :
USD998-1998 per set
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Delivery Time :
20-30 days
Packaging Details :
wooden pallet and plastic bubble sheets
Name :
steel pole tower
Material :
Weldable Structural Angle Steel Plates or pipes
Surface finish :
hot dip galvanization
Height :
30-70m
Wind Load :
0.35-0.85kN/sqm
Lead time :
20-30 days
Applications :
power transmission and distribution wires and calbes mounting
Description

30m Galvanized Transmission Steel Tower Multiple Platforms Free Standing

Galvanized Steel Pole For Electricity Power Wires Transmission And Distribution

Transmission Steel Tower:

High mast steel poles and towers for lighting, communication and landscaping.

Artificial trees for landscaping and comouflaged communication antenna towers

Signage, billboard, LED display and traffic signal management poles and gantry frames.

Other steel structures etc.

Specifications

Material Steel pipes, Angle steel plates, flat steel plates, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure Multiple platforms and brackets for mounting power cables or wires, customized to requests.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.

SST: Self-supporting Steel Tower

Self-supporting steel tower is the most popular tower for communication or power transmission and distribution applications. It’s generally designed for 3 legs or 4 legs, composed of galvanized tubular steel pipes and angular steel plates by welding and fastening with bolts and nuts. With height of 35m to 100m, the steel lattice towers are widely used for mounting communication macrocell stations and power transmission or distribution wires or cables.

So the most popular 3 legged steel lattice tower is made from tubular pipes and angular steel plates. The steel pipes are made for tower legs, angular steel plates are made for bracings (support members) and flate steel plates for connectors. The steel pipes are welded with flanges at each end for connection. All the parts of tower are prefabricated in CKD (completel knocked down) steel members ready for installation. When you install the tower, just fix the steel pipes to foundations by bolts and nuts and then connect the angular steel plate bracings to the pipes via welded connecting plates with bolts and nuts. In CKD way of fabrication, the cost is lower and shipping cost is also much lower because you can ship more materials in a container or truck.
