3 Platforms 25m 65m Steel Tubular Pole 5G Antenna Communication Poles
3 Platforms 25m 65m Steel Tubular Pole 5G Antenna Communication Poles
3 Platforms 25m 65m Steel Tubular Pole 5G Antenna Communication Poles
3 Platforms 25m 65m Steel Tubular Pole 5G Antenna Communication Poles
3 Platforms 25m 65m Steel Tubular Pole 5G Antenna Communication Poles
3 Platforms 25m 65m Steel Tubular Pole 5G Antenna Communication Poles
Specifications
Brand Name :
GUANGXIN
Model Number :
MP-0038
Certification :
ISO9001
Place of Origin :
Guangzhou, China
MOQ :
1 set
Price :
USD898-2038 per piece
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Delivery Time :
20-30 days
Packaging Details :
plastic bubble sheets and pearl wool sheets
Name :
Steel Communication Pole
Material :
Galvanized Weldable Structural Carbon steel
Height :
25m 65m
Shape :
Conical or tapered polygonal
Platforms :
2-5 platforms
Mounting Brackets :
3-6 brackets each platform
Application :
FM radio, 3G/4G/5G antennas, microwaves, RRUs etc.
Wind Load :
0.35-0.85kN/sqm
Lifespan :
20-50 years
Lead time :
20-30 days
Description

3 Platforms 25m 65m Steel Tubular Pole 5G Antenna Communication Poles

35m Tubular Steel Pole With 3 Platforms For Mountning Communication Antennas

Galvanized Steel Monopole Tower for Mounting Communication FM radio, 3G/4G/5G Antennas, RRUs, Microwaves etc.

25-65m High Mast Steel Pole for Telecommunication Microcell or Macrocell Stations

The steel telecom tower is generally made from weldable structural carbon steel pipes, the typical shapes of steel monopole towers are tapered conical and polygonal. The steel pipes are bended and welded by flat steel plates because the size is large. The popular steel grade is GB Q235 and Q345, which are respectively equivalent to ASTM A36 and ASTM A572 Grade 50.

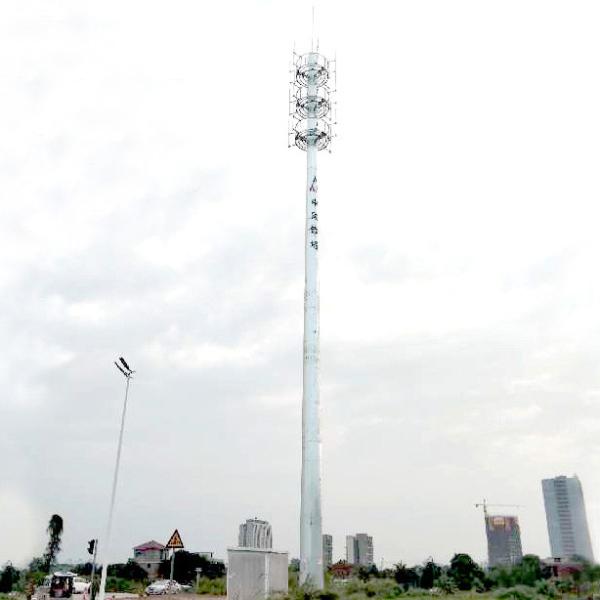

35m high 5G Antenna Steel Pole with 3 Platforms

Specifications

Descriptions Steel poles for mounting communication antennas, microwaves, RRUs etc.
HS Code 7308900000
Material Weldable structural carbon steel
Grade GB Q235, Q345, BS4360, ASTM A36 etc.
Yield Strength 235-355MPa
Height 5m to 55m or other specified height
Thickness 4mm to 20mm, depending on height of pole.
Pole Shape Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple platforms and brackets
Surface Finish Hot dip galvanization plus powder or PVDF coating (optional)
Galvanization 65-100 Microns
Coating 35-80 Microns (optional)
Color Silver, grey, black, white, blue, yellow etc.
Applications GSM, radio, 3G/4G/5G microcell, macrocell and other communication purposes or power transmission and distribution.

Can I customize the towers, poles or frameworks?

Yes, we can fabricate the towers, poles, frameworks or other related products according to your drawings, specifications and requirements.

What’s your payment terms?

T/T or irrevocable documentary L/C is accepted for us. The general payment arrangement is 30% down payment before production and full payment before shipping by T/T, or L/C issued before production.

Can you guarantee the quality?

Yes.

Where are you shipping?

We usually ship from any port of Guangzhou or Shenzhen, other ports in other cities are also available if required.

Platforms for assembling antenna brackets

3 Platforms 25m 65m Steel Tubular Pole 5G Antenna Communication Poles

Steel tower bottom section with connecting flange plate

3 Platforms 25m 65m Steel Tubular Pole 5G Antenna Communication Poles

Foundation construction

3 Platforms 25m 65m Steel Tubular Pole 5G Antenna Communication Poles
