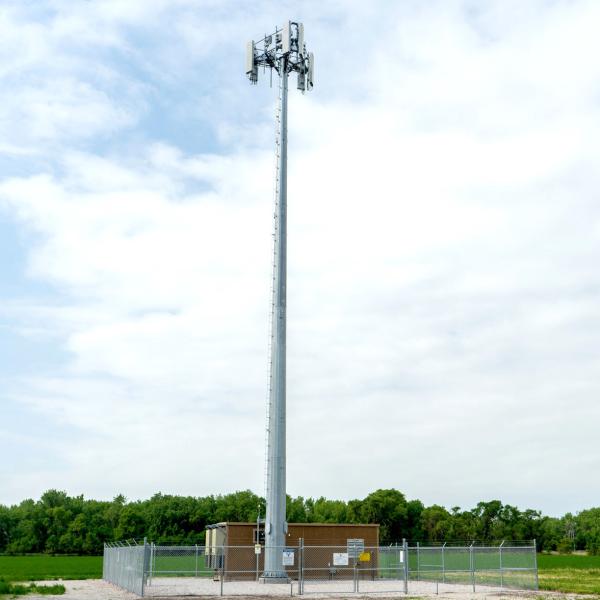

Telecom Mobile 5G Antenna Steel Tubular Pole 60m Hot Dip Galvanized
Telecom Mobile 5G Antenna Steel Tubular Pole 60m Hot Dip Galvanized
Telecom Mobile 5G Antenna Steel Tubular Pole 60m Hot Dip Galvanized
Telecom Mobile 5G Antenna Steel Tubular Pole 60m Hot Dip Galvanized
Telecom Mobile 5G Antenna Steel Tubular Pole 60m Hot Dip Galvanized
Telecom Mobile 5G Antenna Steel Tubular Pole 60m Hot Dip Galvanized
Specifications
Brand Name :
GUANGXIN
Model Number :
STP-032
Certification :
ISO9001
Place of Origin :
Guangzhou, China
MOQ :
1 set
Price :
USD498-8898 per piece
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
1000 sets per month
Delivery Time :
20-30days
Packaging Details :
plastic bubble sheets and pearl wool sheets
Name :
Mobile Telecom Tower
Material :
Structural carbon steel
Surface Finish :
Hot dip galvanization
Height :
15m to 60m or other customized height
Wind Speed :
35-50m/s
Lifetime :
20-50 years
Warranty :
3 years
Delivery time :
20-30 days
Description

Telecom Mobile 5G Antenna Steel Tubular Pole 60m Hot Dip Galvanized

High Mast Galvanized Steel Pole Telecom Mobile 3G/4G/5G Station Antenna Tower

Hot Dip Galvanized steel Pole GSM//CDMA/Radio/5G Mobile Communication Antenna Tower with 1-5 Platforms and 3-30 Antenna Brackets Customized to customer's designs, speficications, requirements and drawings.

Our main products include:

  • Steel tower: 3 legs and 4 legs lattice tower (self-supporting tower or guyed wire tower)
  • Steel pole: street light pole, high mast light tower, communication antenna monopole tower, landscape antenna/light tower
  • Artificial tree/plant camouflaged communication anttena cell tower.
  • Steel structure for traffic or signage billboard gantry and pole.
  • Structural steel frame for factory workshops or other steel works

Specifications

Descriptions Steel poles and towers for mounting communication antennas, microwaves, RRUs etc.
HS Code 7308900000
Material Weldable structural carbon steel
Grade GB Q235, Q345, BS4360, ASTM A36 etc.
Yield Strength 235-355MPa
Height 5m to 55m or other specified height
Thickness 4mm to 20mm, depending on height of pole.
Pole Shape Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple platforms and brackets
Surface Finish Hot dip galvanization plus powder or PVDF coating (optional)
Galvanization 65-100 Microns
Coating 35-80 Microns (optional)
Color Silver, grey, black, white, blue, yellow etc.
Applications GSM, radio, 3G/4G/5G microcell, macrocell and other communication purposes or power transmission and distribution.

The steel high mast poles are designed with platforms or brackets for mounting antennas or other facilities as per requests. The designs of platforms and brackets are also customized to requirements for different connectors of antennas or other facilities. With custom special designs, the steel towers or poles are used for not only telecommunication or power transmission or distribution but also for landscape decorations.

Applicable Examples of Steel Tower and Pole

Telecom Mobile 5G Antenna Steel Tubular Pole 60m Hot Dip Galvanized

Tubular and Angular Steel Communication/power transimission or distribution Tower

Telecom Mobile 5G Antenna Steel Tubular Pole 60m Hot Dip Galvanized

Roadway/highway/stadium/Street light pole

Telecom Mobile 5G Antenna Steel Tubular Pole 60m Hot Dip Galvanized

High Mast Landscape/Lighting/Communication Steel Tower

Telecom Mobile 5G Antenna Steel Tubular Pole 60m Hot Dip Galvanized

3 Legged Self-supporting Tubular and Angular Communication Antenna Tower
