4G 5G GSM CDMA FM Radio Steel Tubular Electric Pole 35m Q235
4G 5G GSM CDMA FM Radio Steel Tubular Electric Pole 35m Q235
4G 5G GSM CDMA FM Radio Steel Tubular Electric Pole 35m Q235
4G 5G GSM CDMA FM Radio Steel Tubular Electric Pole 35m Q235
4G 5G GSM CDMA FM Radio Steel Tubular Electric Pole 35m Q235
4G 5G GSM CDMA FM Radio Steel Tubular Electric Pole 35m Q235
4G 5G GSM CDMA FM Radio Steel Tubular Electric Pole 35m Q235
4G 5G GSM CDMA FM Radio Steel Tubular Electric Pole 35m Q235
Specifications
Brand Name :
GUANGXIN
Model Number :
STP-027
Certification :
ISO9001
Place of Origin :
Guangzhou, China
MOQ :
1 set
Price :
USD498-8898 per piece
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
1000 sets per month
Delivery Time :
20-30days
Packaging Details :
plastic bubble sheets and pearl wool sheets
Name :
Steel Tubular Electric Pole
Material :
Structural carbon steel
Surface Finish :
Hot dip galvanization
Height :
15m to 35m or other customized height
Wind Speed :
35-50m/s
Lifetime :
20-50 years
Warranty :
3 years
Delivery time :
20-30 days
Description

4G 5G GSM CDMA FM Radio Steel Tubular Electric Pole 35m Q235

2G/3G/4G/5G GSM CDMA FM Radio Communication Monopole Tower

  • Steel structure for traffic or signage billboard gantry and pole.
  • Structural steel frame for factory workshops or other steel works.

The popular steel communication poles include conical or tapered pole, hexagonal or polygonal steel pole, straight round steel pole and octagonal pole. There are 2 ways of installation of the steel poles, one is directly buried and the other way is fixed to steel frame foundation with anchor bolts by base plate with bolts and nuts.


Specifications

Descriptions Steel poles and towers for mounting communication antennas, microwaves, RRUs etc.
HS Code 7308900000
Material Weldable structural carbon steel
Grade GB Q235, Q345, BS4360, ASTM A36 etc.
Yield Strength 235-355MPa
Height 5m to 55m or other specified height
Thickness 4mm to 20mm, depending on height of pole.
Pole Shape Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple platforms and brackets
Surface Finish Hot dip galvanization plus powder or PVDF coating (optional)
Galvanization 65-100 Microns
Coating 35-80 Microns (optional)
Color Silver, grey, black, white, blue, yellow etc.
Applications GSM, radio, 3G/4G/5G microcell, macrocell and other communication purposes or power transmission and distribution.

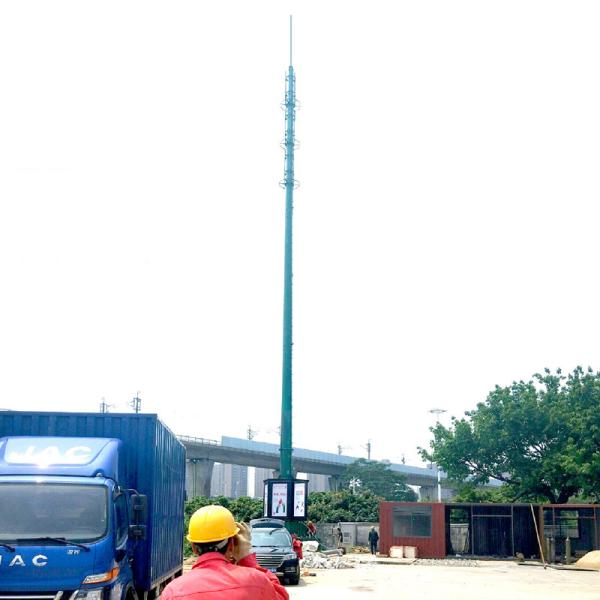

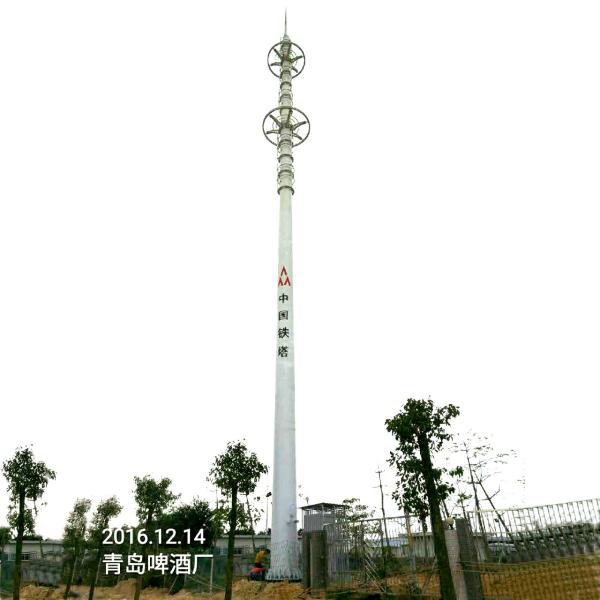

The steel high mast poles are designed with platforms or brackets for mounting antennas or other facilities as per requests. The designs of platforms and brackets are also customized to requirements for different connectors of antennas or other facilities. With custom special designs, the steel towers or poles are used for not only telecommunication or power transmission or distribution but also for landscape decorations.

Applicable Examples of Steel Tower and Pole

Tubular and Angular Steel Communication/power transimission or distribution Tower

Roadway/highway/stadium/Street light pole

Self-supporting steel communication tower

4 legged angular lattice tower made up of galvanized steel flat plates and angle steel plates

FM radio transmission tower, GSM 3G, 4G, 5G communication microwave and antenna tower

25m to 80m high mast galvanized steel lattice tower for communication transmission stations

Custom designed and fabricated steel tower for worldwide communication applications.
