Industrial Grade Centrifugal Impeller 30000rpm - 45000rpm CNC Impeller Machining
Industrial Grade Centrifugal Impeller 30000rpm - 45000rpm CNC Impeller Machining
Industrial Grade Centrifugal Impeller 30000rpm - 45000rpm CNC Impeller Machining
Industrial Grade Centrifugal Impeller 30000rpm - 45000rpm CNC Impeller Machining
Industrial Grade Centrifugal Impeller 30000rpm - 45000rpm CNC Impeller Machining
Industrial Grade Centrifugal Impeller 30000rpm - 45000rpm CNC Impeller Machining
Specifications
Supply Ability :
Single item，7-30 days
Size :
Customized Size\Client's Drawings
Equipment :
CNC Machining Centres
Model Number :
Customization
Material Capabilities :
Hardened Metals, Precious Metals
Price :
Single item，100-30000 USD
Product name :
Professional Precision Cnc Machining Parts
Certification :
Classification Society ISO9001
Quality Control :
100% Inspection Berore Shipment
MOQ :
1 Pcs
Delivery Time :
7-30 days
OEM/ODM :
OEM ODM CNC Milling Turning Machining Service
Payment Terms :
L/C,T/T
Material :
Customers' Requirement
Packing :
Customize Package
CNC Machining or Not :
CNC Machining
Brand Name :
LAISHUN
Type :
Milling, Other Machining Services, Turning
Place of Origin :
Chongqing, China
Micro Machining or Not :
Micro Machining
Packaging Details :
Customized wooden box, customized iron box
Logo :
Accept Custom Logo
Description

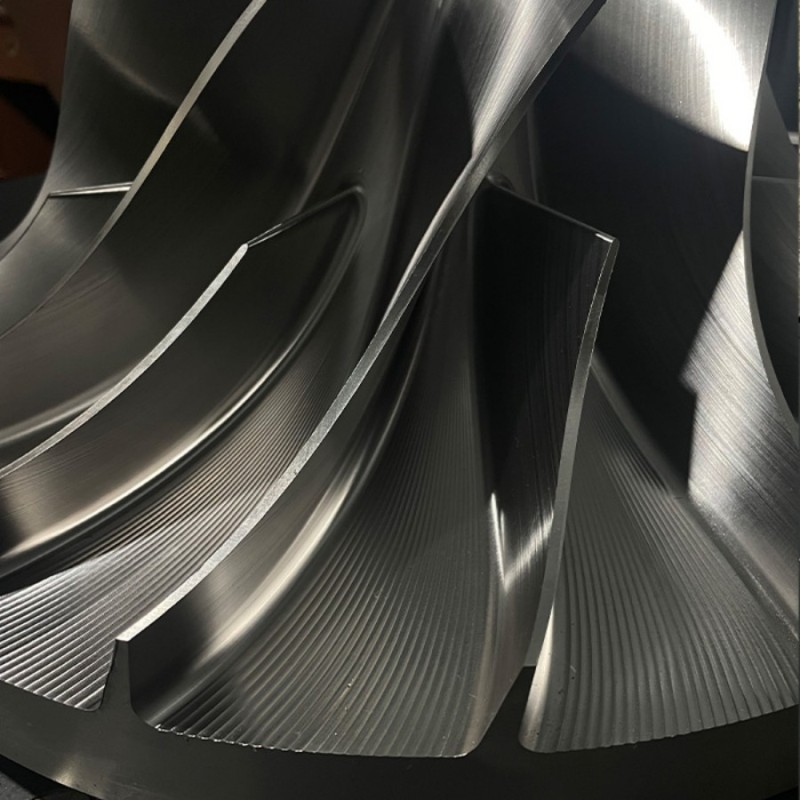

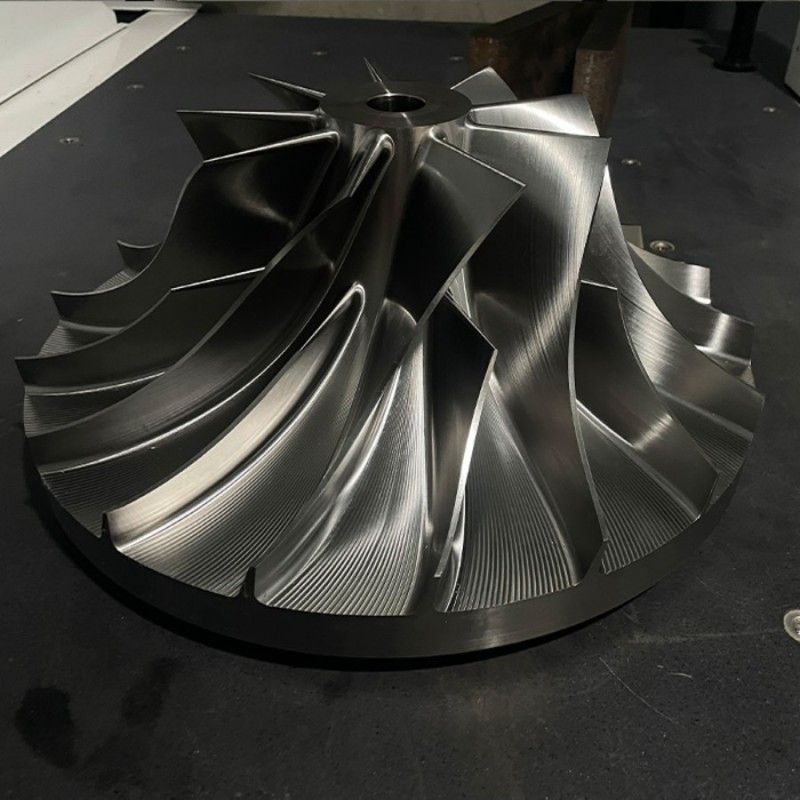

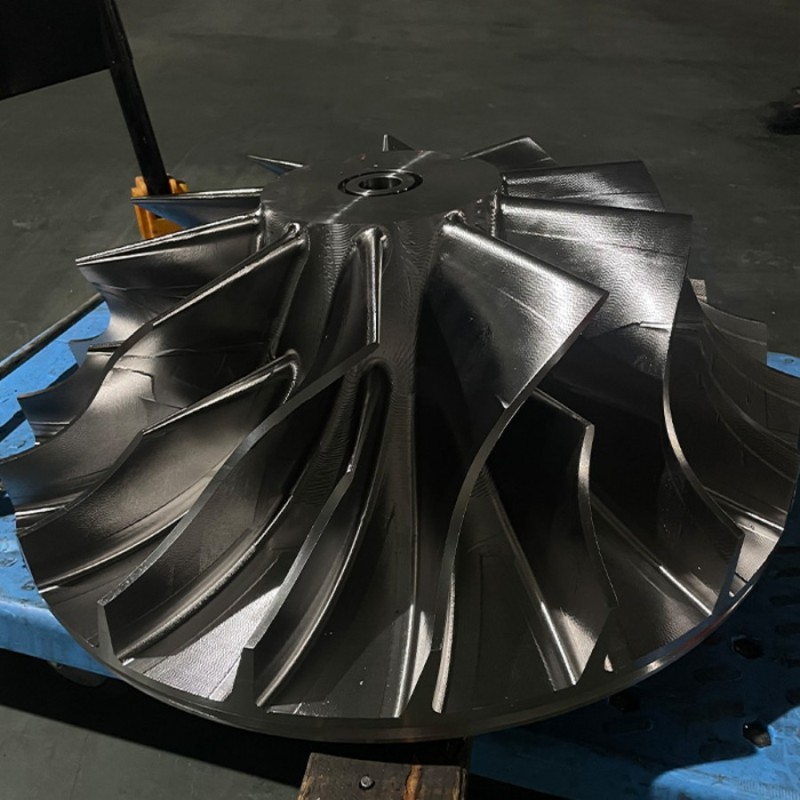

High Precision Fully Customized Industrial Grade Centrifugal Impeller
Precision in micrometers, speed exceeding limits, fearless of acid-base challenges. Our high precision centrifugal impeller utilizes Ti-6Al-4V titanium alloy integral laser powder bed melting (LPBF) additive manufacturing process, achieving seamless integrated structure with exceptional performance characteristics.
Technical Specifications
Blade Profile Tolerance ± 0.02mm (micrometer level accuracy)
Dynamic Balance Accuracy G0.4 level (residual unbalance ≤ 0.1 g * mm/kg)
Speed Range 30,000 - 45,000 rpm
Single-Stage Pressure Ratio 2.0 - 2.5 (stable under ultra-high speed conditions)
Multi-Stage Series Pressure Ratio Exceeds 8.0
Service Life Over 12,000 hours
Advanced Features
  • Ti-6Al-4V titanium alloy construction with LPBF additive manufacturing
  • PVD TiAlN hard coating (0.3-0.5μm) with laser cladding NiCrBSi transition layer
  • Resistant to concentrated hydrochloric acid, chlor alkali electrolyte, and wet hydrogen sulfide
  • Active tip clearance control (ATGC) with real-time laser feedback system
  • Magnetic levitation bearings integration
  • Compliant with API 610 and ISO 13709 standards
Manufacturing Capabilities
Processing Technology CNC machining, milling, turning, 3-5 axis machining, large gantry five-axis, wire EDM, laser cutting, drilling, bending, stamping, die casting, vacuum casting, injection molding, rapid prototyping, sheet metal fabrication
Processed Materials Iron, aluminum, stainless steel 304, 346L, titanium alloys TC4, TC11, TC21, TC22, superalloy GH4169, ductile iron, and customer-specified materials
Precision Tolerance ± 0.01 mm
Surface Roughness Ra 0.8-1.6 μm
Heat Treatment Annealing, tempering, quenching, surface hardening, nitriding, induction hardening, flame hardening, vacuum heat treatment, low-temperature treatment
Surface Treatment Anodizing, bead spraying, wire mesh, PVD electroplating, zinc/nickel/chromium/titanium electroplating, brushing, painting, powder coating, sandblasting, passivation, electrophoresis, electropolishing, embossing, laser/etching/engraving
Quality Assurance
Multi-layer quality inspection including dynamic balance accuracy and overspeed testing. Five-axis five-linkage machining center with ±0.02mm error tolerance. Customized packaging to prevent transportation damage. ISO 9001 certified.
Applications
Successfully implemented in chlor alkali chemical industry, MVR evaporation crystallization, and hydrogen energy compression applications. Continuous operation exceeding 15,000 hours without failure in high humidity and strong corrosion scenarios.
Customization Services Available
MOQ = 1 | Custom logos | OEM/ODM partnerships
We accept CAD drawings (2D/PDF/CAD/DWG/DFF) and 3D files (IGES/STEP/VDA)
