OEM ODM Centrifugal Impeller High Precision Machining Impeller
OEM ODM Centrifugal Impeller High Precision Machining Impeller
OEM ODM Centrifugal Impeller High Precision Machining Impeller
OEM ODM Centrifugal Impeller High Precision Machining Impeller
Specifications
Supply Ability :
Single item，7-30 days
Size :
Customized Size\Client's Drawings
OEM/ODM :
OEM ODM CNC Milling Turning Machining Service
Model Number :
customize
Material Capabilities :
Aluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel Alloys
MOQ :
1 Pcs
Delivery Time :
7-30 days
Logo :
Customer Logo
Payment Terms :
L/C,T/T
Material :
Customers' Requirement
Certification :
Classification Society ISO9001
Price :
Single item，100-30000 USD
Product name :
Professional Precision Cnc Machining Parts
Quality Control :
100% Inspection Berore Shipment
Equipment :
3/4/5 Axis CNC Machining Center
CNC Machining or Not :
CNC Machining
Brand Name :
LAISHUN
Type :
Milling, Other Machining Services, Turning
Place of Origin :
Chongqing, China
Micro Machining or Not :
Micro Machining
Packaging Details :
Customized wooden box, customized iron box
Packing :
Customize Package
Description

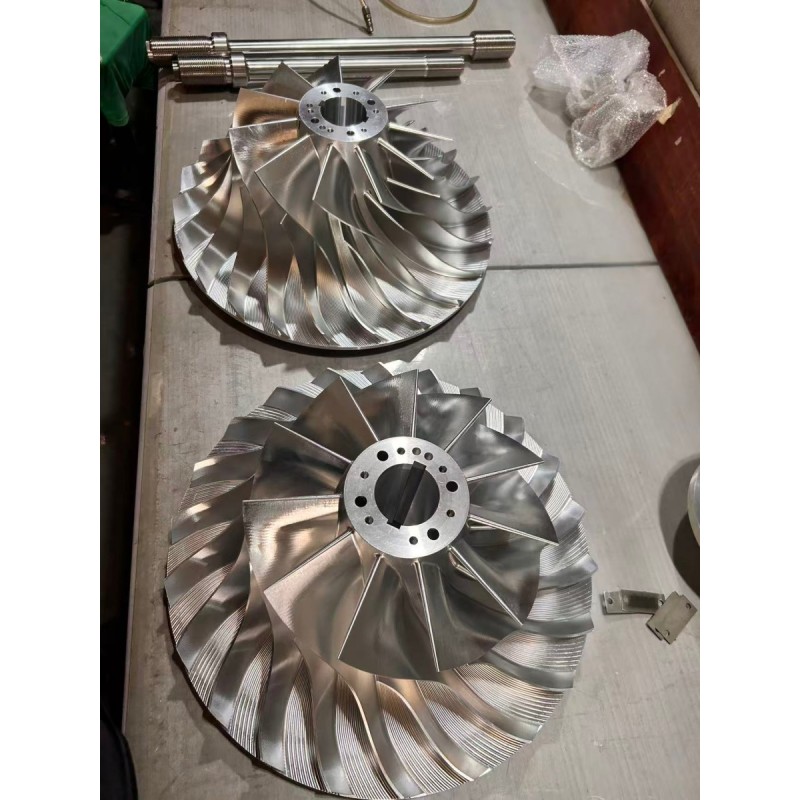

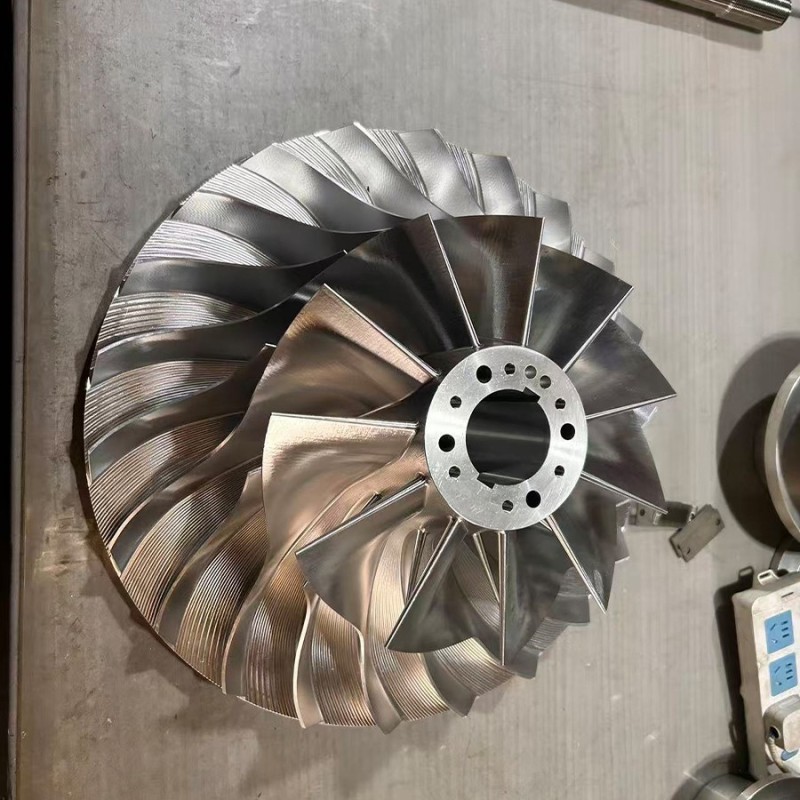

115% Qualified Centrifugal Impeller for Overspeed Test
High-precision blade matching, continuous operation for 16000 hours with deformation in micrometers. Our centrifugal compressor impeller is fully customized with precision engineering to meet the most demanding industrial requirements.
Technical Specifications
Strictly following API 617 9th edition overspeed testing specification, continuously running for 60 seconds at 115% maximum continuous operating speed (MCOS). Real-time monitoring and verification of residual deformation under extreme centrifugal load ≤ 3μm through laser displacement sensing system (accuracy ±0.5μm), ensuring no plastic deformation and no micro crack propagation.
  • Blade manufacturing adopts laser 3D scanning + CFD fluid structure coupling iterative optimization closed-loop process
  • Micrometer level matching (±0.008mm) of blade outlet angle, tip clearance and chord length distribution
  • Significantly suppresses aerodynamic excitation and stress concentration under overspeed conditions
  • Structure utilizes Ti-6Al-4V titanium alloy laser powder bed melting (LPBF) integrated forming
  • PVD TiAlN hard coating (0.3-0.5μm) and laser cladding NiCrBSi gradient transition layer
  • In strong corrosive media (HF, Cl⁻, LiPF₆ decomposition products), average corrosion rate less than 0.03mm
  • Dynamic balance accuracy reaches G0.4 level (residual unbalance ≤ 0.1 g*mm/kg)
  • Vibration amplitude in the 15000-45000 rpm range stable at <1μm
Manufacturing Capabilities
Processing Technology CNC machining, CNC milling, CNC turning, 3-axis to 5-axis machining, large gantry five-axis, wire electrical discharge cutting, laser cutting, drilling, bending, stamping, die casting, vacuum casting, injection molding, rapid prototyping, sheet metal fabrication, and multi-step processing
Processed Materials Iron, aluminum, stainless steel 304, 346L, titanium alloys TC4, TC11, TC21, TC22, superalloy GH4169, ductile iron, and customer-specified metal materials for processing and casting, supporting OEM processing
Precision Tolerance ±0.01 mm
Surface Roughness Ra 0.8-1.6 μm
Heat Treatment & Surface Hardening Annealing, tempering, quenching, surface hardening (carburizing, carbonitriding), nitriding (gas, ion/plasma), induction hardening, flame hardening, vacuum heat treatment, low-temperature treatment
Surface Treatment Anodizing, bead spraying, wire mesh, PVD electroplating, zinc/nickel/chromium/titanium electroplating, brushing, painting, powder coating, sandblasting, passivation, electrophoresis, electropolishing, embossing, laser/etching/engraving, etc.
Processing Method Customize according to provided CAD drawings (2D/PDF/CAD/DWG/DFF) 3D (IGES/STEP/VDA)
Quality Assurance
Products undergo multi-layer quality inspection before leaving the factory. For five-axis five-linkage machining center processing with error of ±0.02mm, we also provide dynamic balance accuracy and overspeed testing.
Certificate: ISO 9001
Packaging & Customization
Customized packaging to prevent damage during transportation. Custom logo available. Minimum order quantity: MOQ=1.
Customized Precision Parts
We look forward to receiving your customization requirements and establishing a productive partnership for OEM/ODM services.
