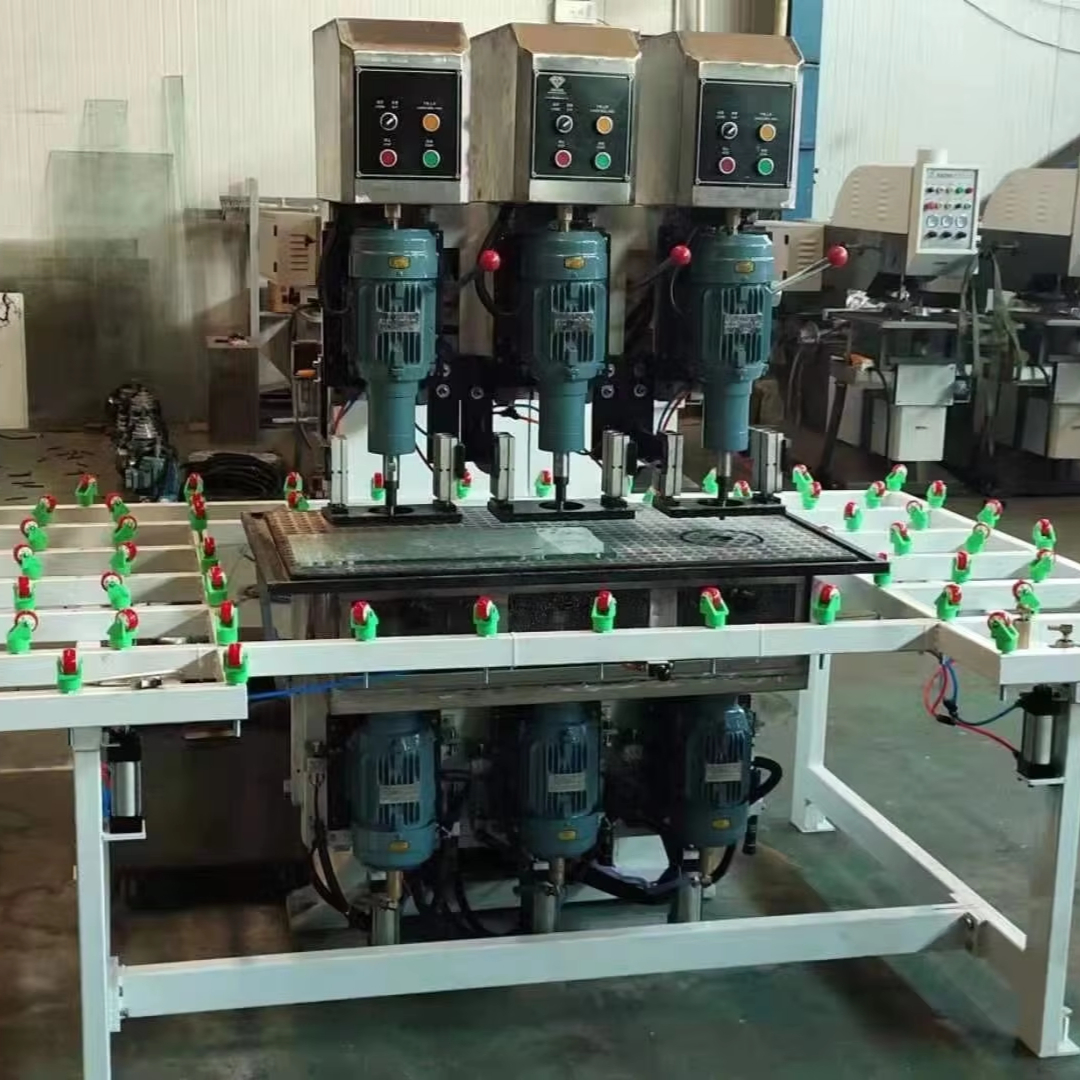

Foshan Star SXZK-0222 Three Heads Automatic Glass Drilling Machine Pneumatic Vertical
Foshan Star SXZK-0222 Three Heads Automatic Glass Drilling Machine Pneumatic Vertical
Specifications
Model Number :
SXZK-0222
Hole diameter :
diameter 4mm—80mm
Price :
$6,200-$6,500
The motor :
P=1.1KWx6 ^=2800
Payment Terms :
T/T
Voltage :
380V.50HZ
Place of Origin :
China
Maximum processing size :
2500mmX2500mm
Delivery Time :
45
Workbench size :
1100mmX620mm
MOQ :
1
Glass thickness :
3mm—25mm
Packaging Details :
Protective fim/Wooden Box
Workbench height :
920mm
Brand Name :
FoShan Star
Neck and arm length :
1250mm
Description

Foshan Star SXZK-0222 Three Heads Automatic Glass Drilling Machine Pneumatic Vertical

Machine Overview

The SXZK-0222 three heads automatic glass drilling machine is designed for high-efficiency hole drilling on flat glass panels. Three drill heads work in coordinated automatic cycles to deliver stable, high-volume output, making it an ideal production solution for architectural glass, furniture glass and household appliance glass processing lines.

Key Features

  • Three drill heads accommodate different bit sizes, eliminating frequent bit changes and improving working efficiency
  • Drills holes from both top and bottom sides of glass simultaneously for fast and safe operation
  • Infrared positioning system ensures precise hole placement before drilling
  • Pneumatic worktable supports large area plate glass processing
  • Automated drilling controlled by foot pedal, freeing operators' hands for safer and more convenient operation
  • Processes glass thickness from 3mm to 25mm and glass panels up to 2500mm x 2500mm
  • Ideal for mass production with high efficiency and low labor intensity

Technical Specifications

Specification Value
Neck and Arm Length 1250mm
Hole Diameter Range 4mm - 80mm
Maximum Processing Size 2500mm * 2500mm
Glass Thickness Range 3mm - 25mm
Workbench Size 1100mm * 620mm
Workbench Height 920mm
Motor Power P=1.1KWx6 ^=2800
Voltage 380V, 50HZ

Glass Sample Results

Foshan Star SXZK-0222 Three Heads Automatic Glass Drilling Machine Pneumatic Vertical

Foshan Star SXZK-0222 Three Heads Automatic Glass Drilling Machine Pneumatic Vertical

Foshan Star SXZK-0222 Three Heads Automatic Glass Drilling Machine Pneumatic Vertical

Foshan Star SXZK-0222 Three Heads Automatic Glass Drilling Machine Pneumatic Vertical

Foshan Star SXZK-0222 Three Heads Automatic Glass Drilling Machine Pneumatic Vertical

Foshan Star SXZK-0222 Three Heads Automatic Glass Drilling Machine Pneumatic Vertical
