CNC Glass Drilling Machine, 380v Glass Drilling Machine, Factory Direct Sales

Product Description

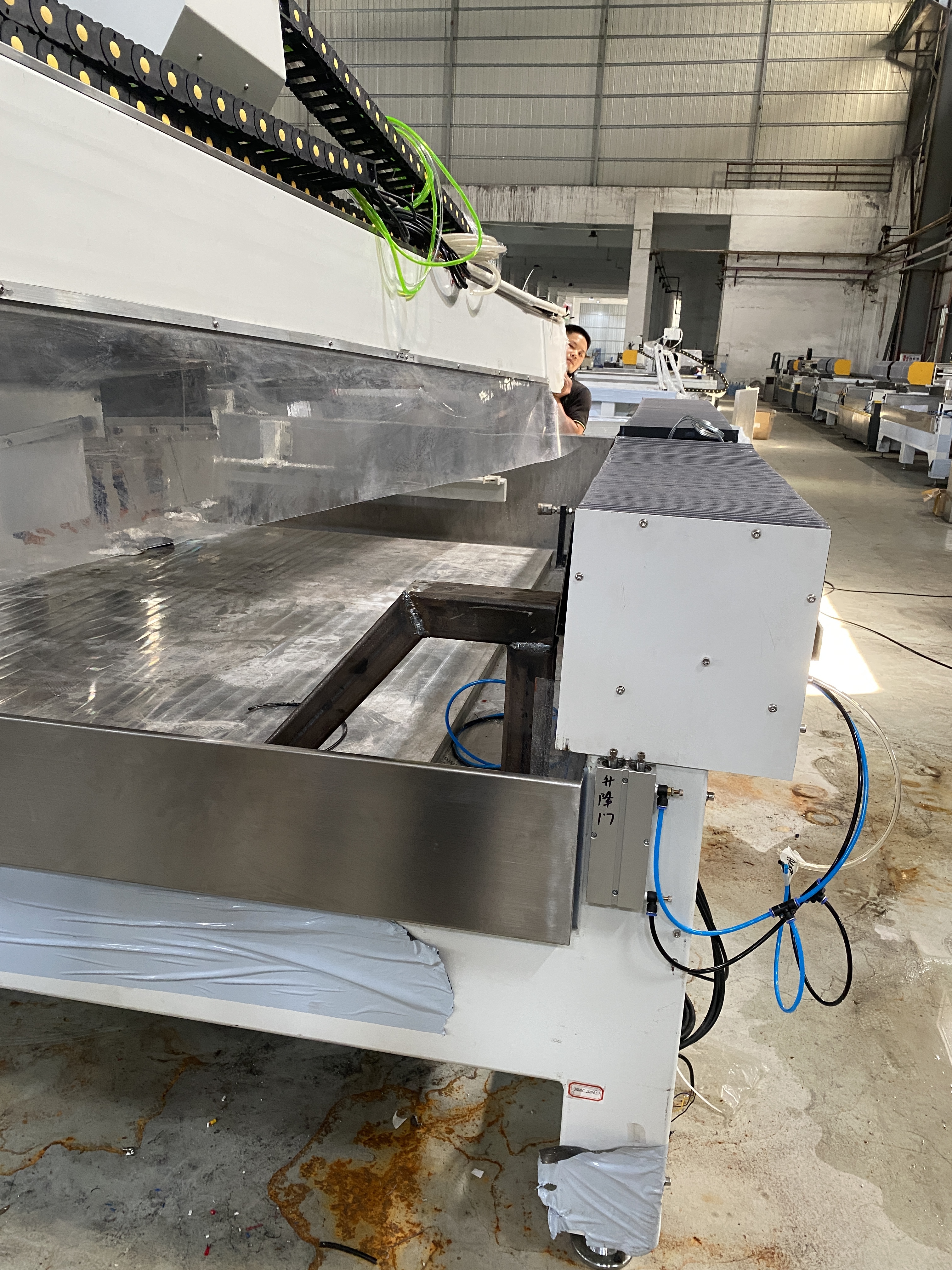

This Model SXZ1000 Single-Head CNC Glass Drilling Machine is engineered for precision and efficiency in automated glass processing. Designed with a robust structure and advanced frequency converter technology, it ensures accurate, consistent, and high-quality drilling for various glass applications.

Product Features

Equipped with specialized water-cooled spindle motors and dual frequency converters, this machine provides highly stable and adjustable drilling speeds. It is optimized for precise hole-making with exceptional reliability.

• Precision Drilling Capacity: The machine supports a versatile drilling diameter ranging from 4mm to 50mm, accommodating a wide variety of hole sizes for different industrial needs.
• Automated Stroke Control: With a maximum drilling stroke of 1600mm x 1000mm, the CNC system allows for accurate positioning and seamless execution of complex drilling patterns.
• Variable Speed Regulation: Powered by two 1.1KW water spindle motors (2800 RPM) with frequency converter speed regulation, operators can easily adjust the drilling speed to suit different glass thicknesses and materials.

Built for heavy-duty industrial environments, the machine features a spacious and ergonomically designed working platform to facilitate smooth loading and processing.

• Glass Thickness Compatibility: It is optimized to process glass thicknesses ranging from 4mm to 25mm, making it highly suitable for architectural, furniture, and appliance glass manufacturing.
• Spacious Working Platform: The machine features a working platform size of 1800mm x 1300mm with an ergonomic working height of 920mm, ensuring stable support and ease of operation for operators.
• Extended Arm Reach: Featuring an arm length of 1000mm, the single-head design provides excellent reach and flexibility for precise drilling on various glass dimensions.

Product Specifications
