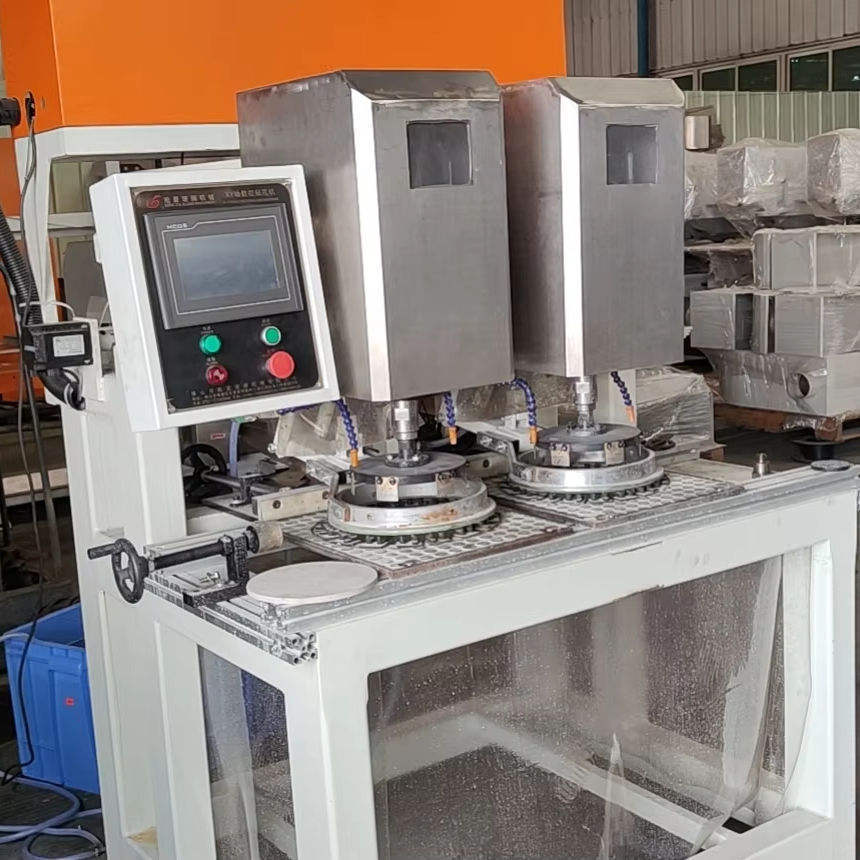

This Fully Automatic Dual-Head Glass Drilling Machine is specifically engineered for gas stove glass panel processing. Equipped with a dual-drill synchronous drilling system, it can accurately complete simultaneous drilling of multiple holes on stove glass panels. The hole distance is adjustable from 350mm to 600mm, compatible with mainstream gas stove models. The machine adopts a PLC intelligent control system with a touch screen display, achieving fully automatic operation throughout the entire process without manual intervention, significantly improving production efficiency and hole position consistency. Built with a robust frame structure and a working platform size of 500*1200mm, it supports glass thickness from 5mm to 25mm, with drilling diameters covering 120-220mm to meet large-diameter hole requirements. The built-in water circulation cooling system and four-motor drive structure ensure long-term stable operation while effectively extending tool life. The overall machine height of 900mm conforms to ergonomic working height standards, making it ideal for mid-size glass deep-processing enterprises and stove panel manufacturing facilities.

Equipped with a PLC intelligent control system and touch screen display, this machine provides fully automatic operation with exceptional reliability and repeatability.

• Synchronous Dual-Head Drilling: Both drill heads operate simultaneously, significantly reducing cycle time per panel and doubling output compared to single-head machines.
• Adjustable Hole Distance: The hole distance is adjustable from 350mm to 600mm, accommodating various gas stove models and panel configurations without the need for custom tooling.
• Large Diameter Drilling Capacity: Supports drilling diameters from 120mm to 220mm, meeting the special large-hole requirements of gas stove glass panels.
• PLC + Touch Screen Control: Fully automated operation with intuitive interface, allowing operators to set parameters, monitor status, and switch recipes with ease. New operators can quickly master the machine.
