Stainless Steel 1/4 to 4 BSP Stainless steel hex hose tail
Stainless Steel 1/4 to 4 BSP Stainless steel hex hose tail
Stainless Steel 1/4 to 4 BSP Stainless steel hex hose tail
Stainless Steel 1/4 to 4 BSP Stainless steel hex hose tail
Stainless Steel 1/4 to 4 BSP Stainless steel hex hose tail
Stainless Steel 1/4 to 4 BSP Stainless steel hex hose tail
Specifications
Model Number :
HT01
Certification :
CE, ISO9001:2008
MOQ :
50pcs
Price :
USD0.2 to USD16
Payment Terms :
T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability :
50 tons/month
Delivery Time :
35 days
Packaging Details :
Neutral Carton Box
Product Name :
Hose Tail
Shape :
Hex
Thread Type :
BSP, BSPT, NPT, DIN2999, G Thread
Pressure :
150LB
Material :
Stainless Steel 304 and Stainless Steel 316
Size Range :
1/4" up to 4"
Description

Product Description

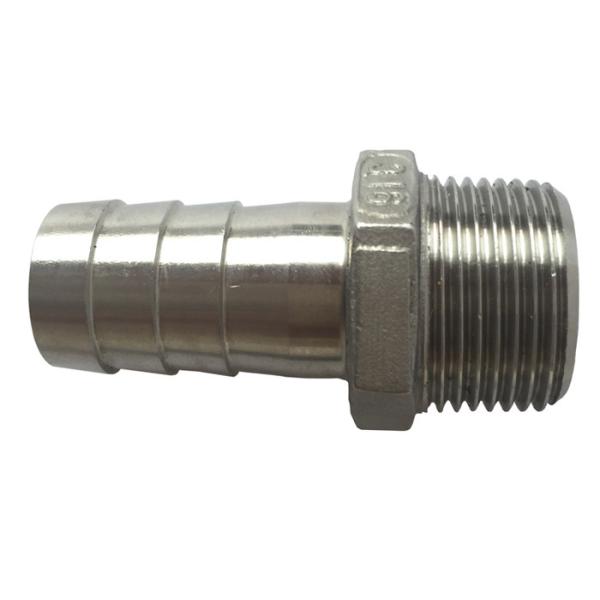

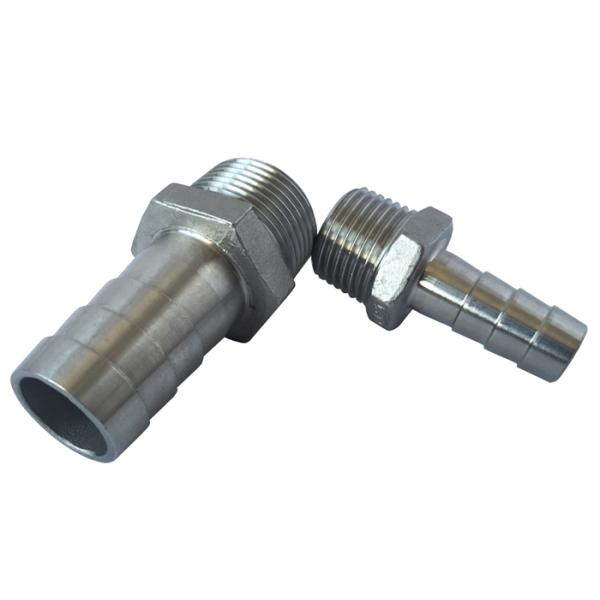

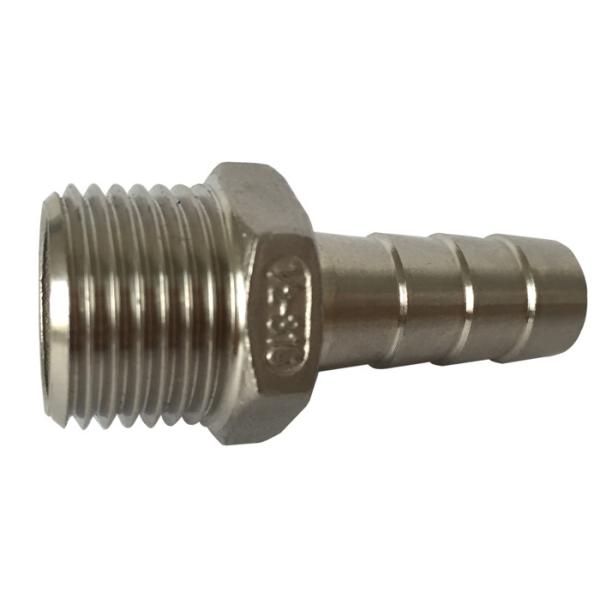

Hexagon Hose Tail is taper shape fitting, with thread end and barb end, which can connect the hose easily. This type of fitting is mainly used on the irrigation equiments or flow control equipments.

The fitting is made of stainless steel 304 or 316.

Thread type: BSP, BSPT, NPT, G thread, DIN2999

Pressure: 150LB

Stainless Steel 1/4

Stainless Steel 1/4

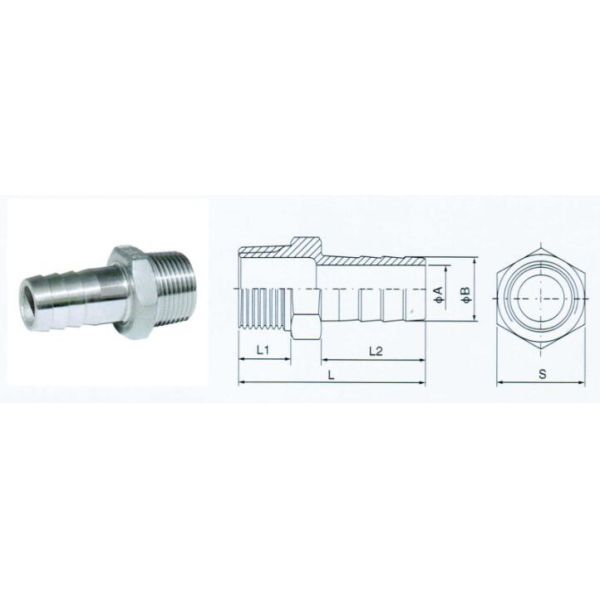

Specification

SIZE 1/8" 1/4" 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" 2-1/2" 3" 4"
A 4 5 6 9 15 21.5 27 33 45 55 68 91
B 7 9 10 14 20 27.5 34 40 52 63.5 76.5 103
L2 20 24 25 26 35 45 45 46 55 67 92 96
L 34 42 45 50 60 70 75 80 90 110 135 150
S 14 16 19 22 27.5 36.5 46 52 63 79 93 118
