Low pressure 304 stainless steel 1-1/2*1/2, bsp, npt bspt threaded octagon reducing nipple
Low pressure 304 stainless steel 1-1/2*1/2, bsp, npt bspt threaded octagon reducing nipple
Low pressure 304 stainless steel 1-1/2*1/2, bsp, npt bspt threaded octagon reducing nipple
Low pressure 304 stainless steel 1-1/2*1/2, bsp, npt bspt threaded octagon reducing nipple
Specifications
Model Number :
YH-RON
Certification :
ISO9001 & CE
MOQ :
10
Price :
USD 1.01-1.35 dollars
Payment Terms :
Western Union, , T/T
Supply Ability :
20 tons per month
Delivery Time :
40 days
Packaging Details :
cartoon or wooden box
Thread type :
BSP, NPT, BSPT
Working pressure :
2 MPa
Working temperature :
25-220 degree
Certificates :
CE
Standard :
ASTM, ANSI, JIS
Materiall :
304, 316, CF8M, 1.4408 etc.
Description

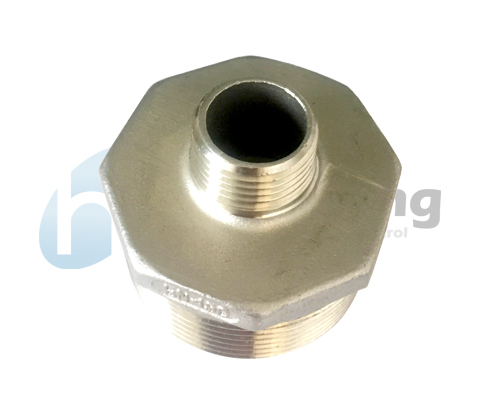

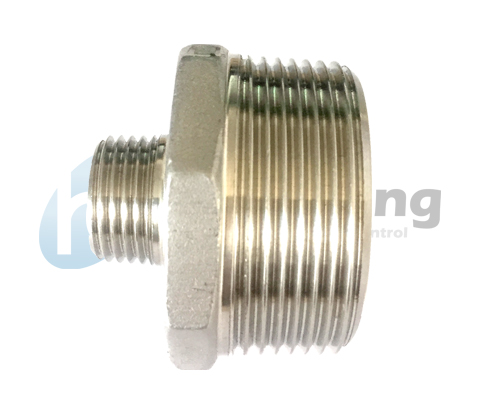

Low pressure 304 stainless steel 1-1/2"*1/2", bsp, npt bspt threaded octagon reducing nipple

Material: 304, 316 or customized.

Thread: BSP, BSPT or NPT.

Low pressure 304 stainless steel 1-1/2

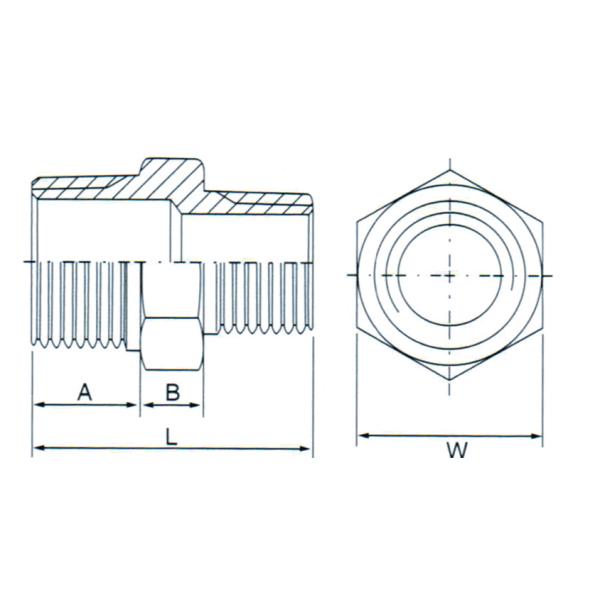

SIZE 1/4"*1/8" 3/8"*1/8" 3/8"*1/4" 1/2"*1/8" 1/2"*1/4" 1/2"*3/8" 3/4"*1/2" 1"*1/2" 1-1/4"*1" 1-1/2"*1-1/4" 2"*1-1/2"
A 12.0 13.0 13.0 16.0 16.0 16.0 18.0 20.0 22.0 23.0 26.0
B 8.0 6.0 6.0 6.0 6.0 6.0 12.0 12.0 10.0 12.5 14.0
L 31.0 30.0 31.0 33.0 34.0 35.0 46.0 48.0 52.0 56.5 63.0
W 16.0 20.0 20.0 23.0 23.0 23.0 29.0 36.0 45.0 52.0 63.0

Low pressure 304 stainless steel 1-1/2

Low pressure 304 stainless steel 1-1/2

The difference between the bsp, bspt and npt thread type are as follows.

Low pressure 304 stainless steel 1-1/2 Low pressure 304 stainless steel 1-1/2
