304 Stainless Steel Octagon Cap Npt Bsp Bspt Threaded 1 Inch Ansi Standard
304 Stainless Steel Octagon Cap Npt Bsp Bspt Threaded 1 Inch Ansi Standard
304 Stainless Steel Octagon Cap Npt Bsp Bspt Threaded 1 Inch Ansi Standard
304 Stainless Steel Octagon Cap Npt Bsp Bspt Threaded 1 Inch Ansi Standard
Specifications
Model Number :
YH-OC
Certification :
ISO9001 & CE
MOQ :
10
Price :
USD 0.67-0.83 dollars
Payment Terms :
Western Union, , T/T
Supply Ability :
20 tons per month
Delivery Time :
40 days
Packaging Details :
cartoon or wooden box
Thread type :
BSP, NPT, BSPT
Working temperature :
25-220 degree
Working pressure :
2 MPa
Certificates :
CE
Material :
304, 316, CF8M, 1.4408 etc.
Standard :
ASTM, ANSI, JIS
Description

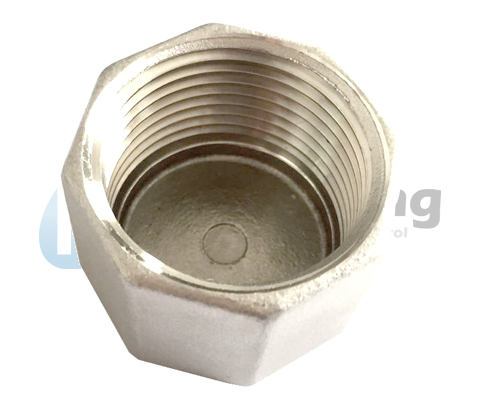

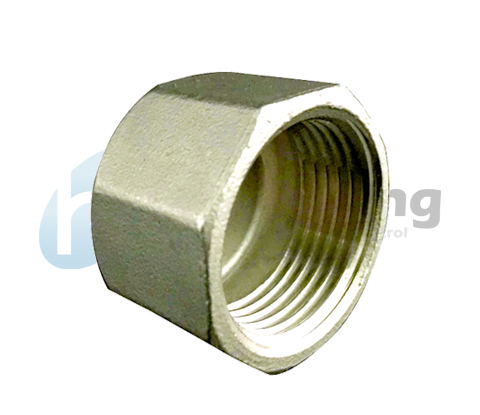

304 stainless steel npt, bsp, bspt threaded 1" inch astm, jis, ansi standard octagon cap

Material: 304, 316 or customized.

Thread: BSP, BSPT or NPT.

304 Stainless Steel Octagon Cap Npt Bsp Bspt Threaded 1

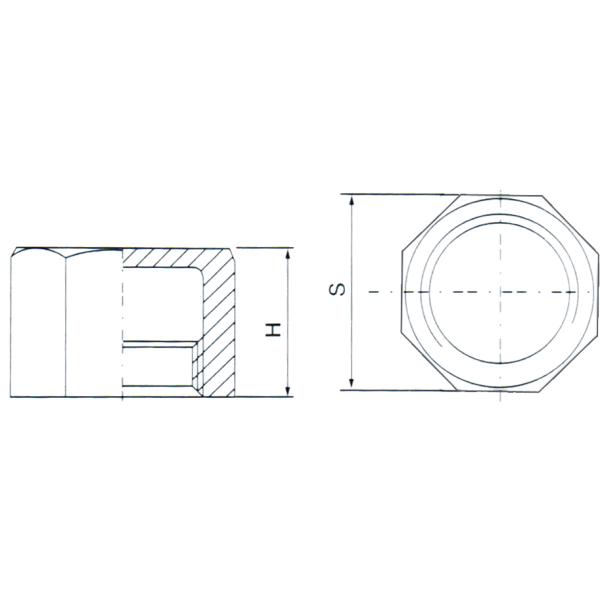

SIZE 1/8" 1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4"
H 14.0 17.0 20.5 25.0 30.0 37.0 46.0 53.0 64.0 82.0 96.0 122.0
S 15.0 15.0 18.0 20.0 21.0 25.0 31.0 33.0 36.0 43.0 45.0 48.0

304 Stainless Steel Octagon Cap Npt Bsp Bspt Threaded 1

304 Stainless Steel Octagon Cap Npt Bsp Bspt Threaded 1

The difference between the bsp, bspt and npt thread type are as follows.

304 Stainless Steel Octagon Cap Npt Bsp Bspt Threaded 1 304 Stainless Steel Octagon Cap Npt Bsp Bspt Threaded 1

Material High quality stainless steel 304,316,316L / CF8, CF8M, CF3M / 1.4308, 1.4408, 1.4404
Size 1/8”,1/4”,3/8”,1/2”,3/4”,1”,1-1/4”,1-1/2”,2”,2-1/2”,3”,4”,5”,6”
Thread ANSI B 1.20.1(NPT), BS21(BSP), DIN259/2999, ISO7/1, ISO228-1, JISB0203
Nominal pressure 150lbs
Certificate ISO9001 & CE
Function Connect the pipeline
Application They are widely used as linkages of pipes for the transportation of water ,oil, gas and every kind of corrosive suitable for stainless steel.
Production process Investment casting, CNC lathe, Test, Cleaning, Packing, Storage
Packing Be packed in standard export polybag, carton and fumigation-free pallet
Delivery time Within 3-45 days after receipt of advance payment.
Trade term FOB/ CIF/ EXW Tianjin Port
Payment term 1)30% T/T down payment, the balance before delivery.
2)Paypal
3)D/P
Pipe fitting type

90 Degree Elbow, 45 Degree Elbow, 90 Degree street Elbow, Tee, Reducing Tee, Cross, FF/FM/MM Union, Barrel Nipple, Thread Nipple, Welding Nipple, Half Coupling,

Full Coupling, Reducing Coupling, Socket Banded,Hose Barb Fitting, Hexagon Nipple, Hexagon Bushing, Hexagon Cap, Round Cap, Y-Strainer

Note We can change the design as per the client’s requirement.
We can produce stainless steel screwed pipe fittings, ball valves, check valve, gate valve, globe valve and camlock etc.pipeline equipments for your choice.
