Stainless Steel 1/4 to 4 BSP Female thread 150LBs Tee coupling
Stainless Steel 1/4 to 4 BSP Female thread 150LBs Tee coupling
Stainless Steel 1/4 to 4 BSP Female thread 150LBs Tee coupling
Stainless Steel 1/4 to 4 BSP Female thread 150LBs Tee coupling
Stainless Steel 1/4 to 4 BSP Female thread 150LBs Tee coupling
Stainless Steel 1/4 to 4 BSP Female thread 150LBs Tee coupling
Specifications
Model Number :
YH-TEE
Certification :
CE, ISO9001:2008
MOQ :
50pcs
Price :
USD 0.35 to USD 21.8
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
50 tons/month
Delivery Time :
35 days
Packaging Details :
Neutral Carton Box
Pressure :
150LB
Connection :
Female Thread
Material :
Stainless Steel
Size Range :
from 1/4" up to 4"
Thread type :
BSP, NPT, DIN2999
Production :
Casting Products
Description

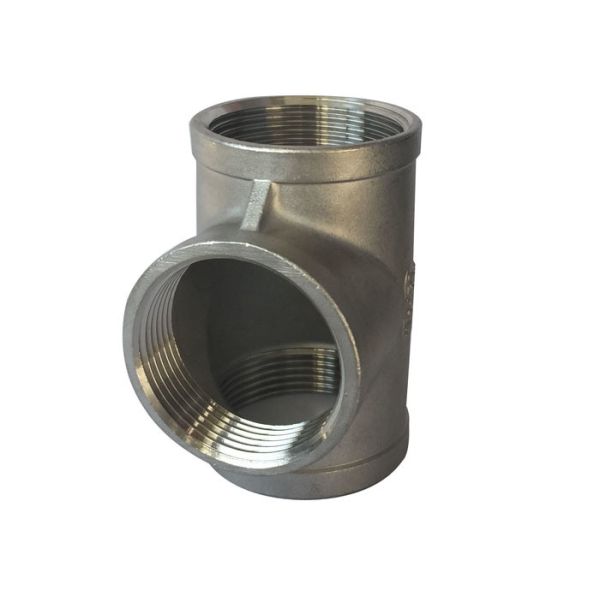

Stainless Steel 1/4" to 4" BSP Female thread 150LBs Tee coupling

Product Description

Stainless Steel Tee Coupling is made by precision casting technology, machined by advanced CNC machines, Tee coupling is used as connection joints where pipe lines have to be divided into 3 flows.

This function provides convenience and flexibility to the pipeline installation projects. The material is stainless steel 304 or 316, high resistance to rust and corrosion. Pressure can bear up to 150LBs.

Product name: Tee coupling

Materail: Stainless Steel

Pressure: 150LBs

Temparature:-60℃ to 450℃

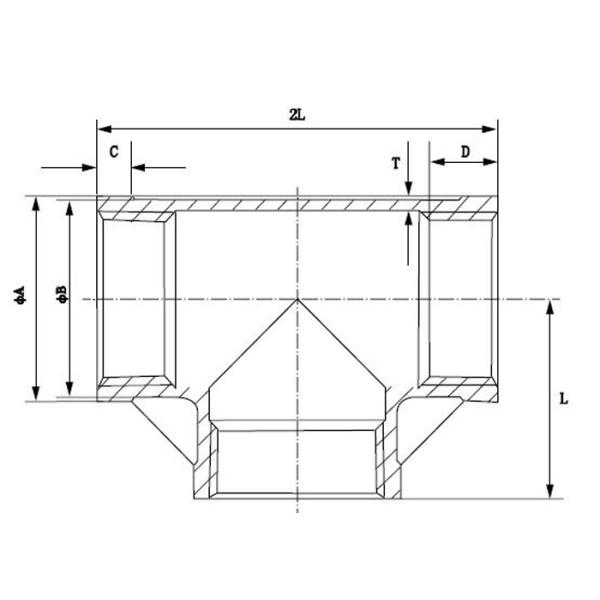

Specification


Stainless Steel 1/4

SIZE 1/8" 1/4" 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" 2 1/2" 3" 4"
A 17.8 19.7 22.6 26 30 36 41.8 48.5 58.6 69.5 74.2 94.9
B 14.6 19.9 23.6 26 31.7 40 49.5 55.7 68.3 87 98.9 123.6
L 36 39.8 46 53 59.7 73 83.7 96 110 139 147 187

How to Choose good quality Tee Couplings?

Stainless Steel 1/4

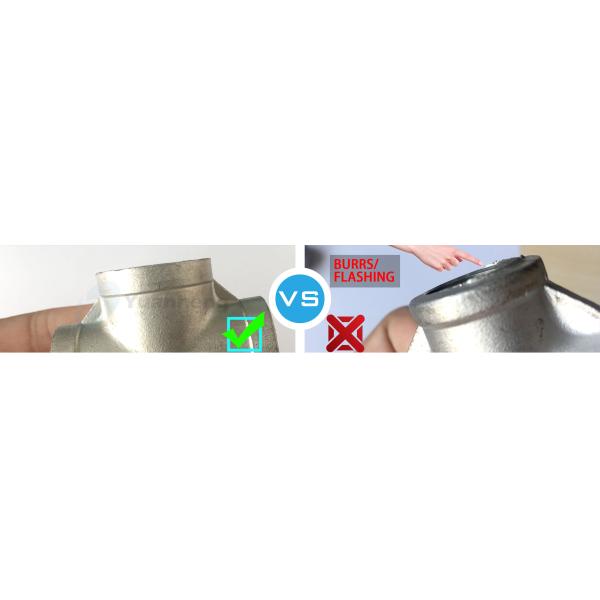

Burrs and flashing

You may get products with burrs and flashing from the market. It is mainly caused by the wax injection, shell making and pouring procedures. A proper grinding shall be given to every single product. The suppliers who allow this kind of flaw to get out of their factory is of low standard or even doesn't have one.

Stainless Steel 1/4

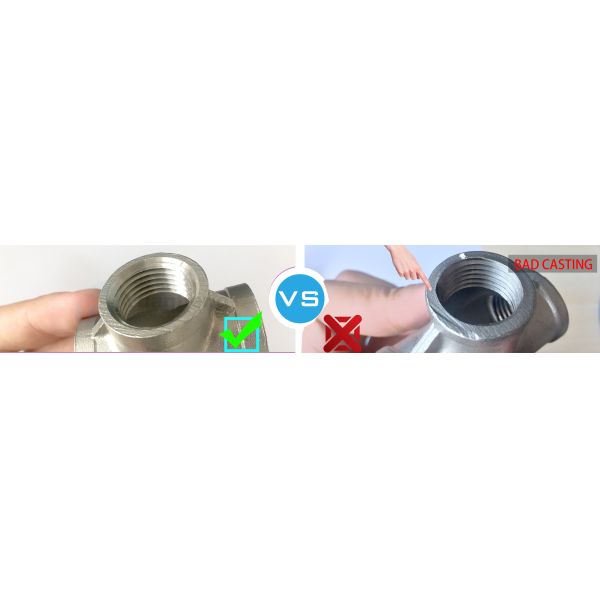

Unflat surface

The casting parts may get could shut, hump, pit or shape deformation on the surface.It is mainly caused by wax injection and pouring procedures. Approvement of this kind of flaw shows the low standard of inspection of the supplier.

Stainless Steel 1/4

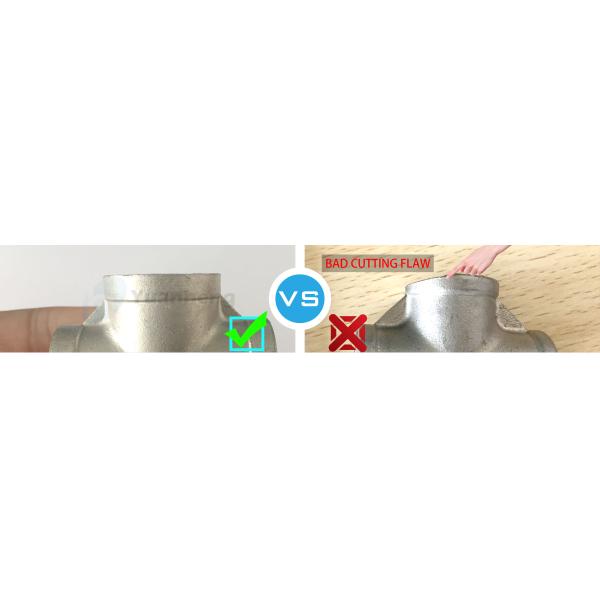

Over grinding or cutting

The parts shall be cut off from the tree after poured, and then grind the surface to make it flat.
Sometimes, the operating worker may over cut or over grind the surface of the parts. This kind of products can’t be repaired. It happens, but a supplier shall not release this kind of product to you.
