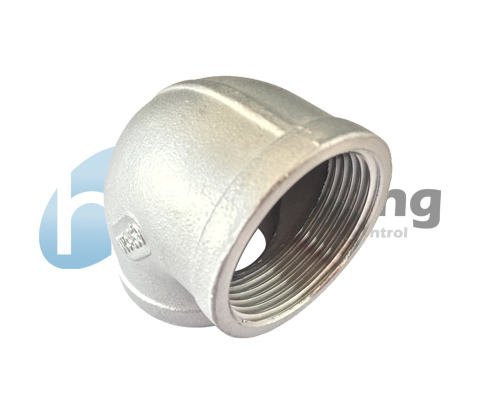

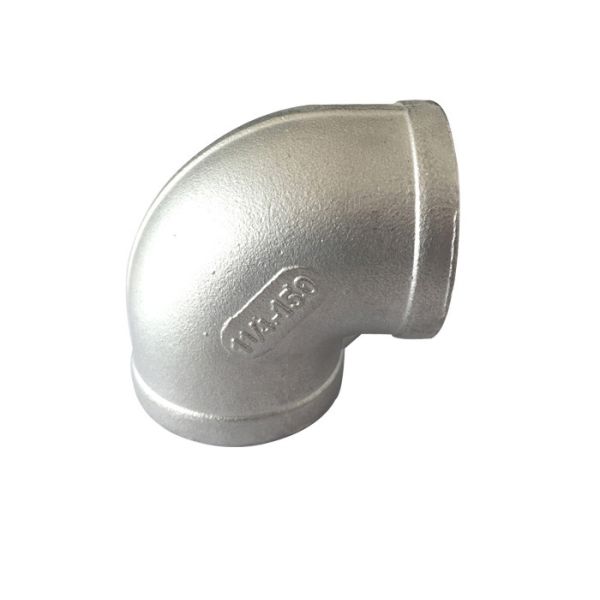

Astm Standard 304 Stainless Steel Pipe Fitting Bpt Or Npt Threaded Low Pressure Elbow
Astm Standard 304 Stainless Steel Pipe Fitting Bpt Or Npt Threaded Low Pressure Elbow
Astm Standard 304 Stainless Steel Pipe Fitting Bpt Or Npt Threaded Low Pressure Elbow
Astm Standard 304 Stainless Steel Pipe Fitting Bpt Or Npt Threaded Low Pressure Elbow
Specifications
Model Number :
YH-SE
Certification :
ISO9001 & CE
MOQ :
10
Price :
USD 1.03-1.25 dollars
Payment Terms :
Western Union, , T/T
Supply Ability :
20 tons per month
Delivery Time :
40 days
Packaging Details :
cartoon or wooden box
Standard :
ASTM, JIS, ANSI etc.
Thread type :
BSP, NPT, BSPT
Working temperature :
25-180 degree
Working pressure :
2 MPa
Sturcture type :
elbow
Connection type :
Thread
Description

Astm Standard 304 Stainless Steel Pipe Fitting Bpt Or Npt Threaded Low Pressure Elbow


Material: 304, 316 or customized.
Thread: BSP, BSPT or NPT.
Tolerance: ±1 mm.
Astm Standard 304 Stainless Steel Pipe Fitting Bpt Or Npt Threaded Low Pressure Elbow

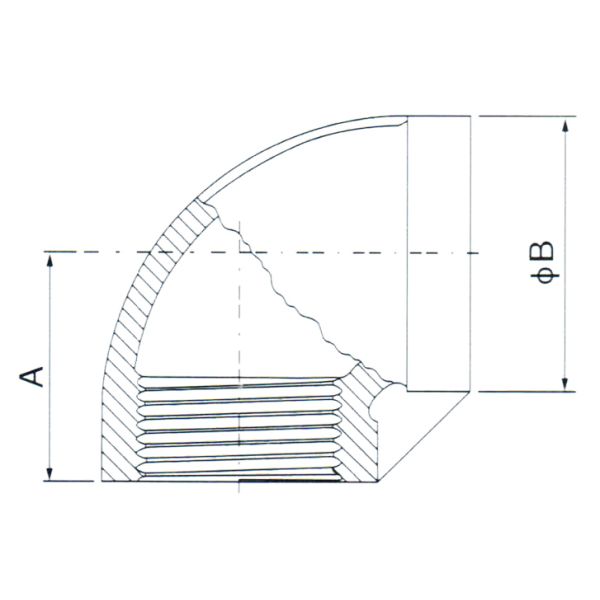

size1/8"1/4"3/8"1/2"3/4"1"1-1/4"1-1/2"2"2-1/2"3"4"
A19.019.723.028.032.835.544.748.057.068.675.586.5
B15.019.823.026.032.040.049.055.0

68.7

87.095.0123.0

Astm Standard 304 Stainless Steel Pipe Fitting Bpt Or Npt Threaded Low Pressure Elbow

Astm Standard 304 Stainless Steel Pipe Fitting Bpt Or Npt Threaded Low Pressure Elbow


The difference between the bsp, bspt and npt thread type are as follows.

Astm Standard 304 Stainless Steel Pipe Fitting Bpt Or Npt Threaded Low Pressure ElbowAstm Standard 304 Stainless Steel Pipe Fitting Bpt Or Npt Threaded Low Pressure Elbow


STAINLESS STEEL PIPE FITTINGS DETAILS
MaterialHigh quality stainless steel AISI 304,316,304L,316L
StandardANSI,DIN,JIS,BS
ThreadNPT,BSP,BSPT,DIN2999
Size1/4",3/8",1/2",3/4",1",11/4",11/2",2",21/2",3",4",5",6".
Model

Elbows, Tees, Crosses, Bends, Unions, Bushings, Lateral Y Braches,
Sockets, Nipples, Hexagon/Round Caps, Plugs, Locknuts, Flanges,
Side Outlet Tees, Side Outlet Elbows, etc.

Related products1. Carbon steel nipples and sockets2. Flanges
3. Carbon steel butt-welding fittings4. Pipes
5. High-pressure fittings6. Valves
7. P.T.F.E .thread seal tape8. Brass fittings
9. Ductile iron pipe fittings10. Copper fittings
11. Grooved fittings12. Sanitary fittings.
TechnicsCasting,Welding
ConnectionMale, Female
ShapeEqual, Reducing
CertificateBSI, ISO9001
ApplicationsSuitable for Pipe lines connect of water, steam, air, gas, oil and so on.
Buyer’s drawings or designs are available.
Package1. Cartons without pallets.
2. Cartons with pallets.
Or as buyer’s requirements.
Delivery detail
According to the quantities and specifications of each order.
Normal delivery time is from 30 to 45 days after receiving the deposit.
