1000 Wog Hose Nipple Stainless Steel CF8M And CF8 Material
1000 Wog Hose Nipple Stainless Steel CF8M And CF8 Material
1000 Wog Hose Nipple Stainless Steel CF8M And CF8 Material
1000 Wog Hose Nipple Stainless Steel CF8M And CF8 Material
1000 Wog Hose Nipple Stainless Steel CF8M And CF8 Material
1000 Wog Hose Nipple Stainless Steel CF8M And CF8 Material
Specifications
Model Number :
YH-01-03
Certification :
CE&ISO
MOQ :
5 PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50Ton/ Month
Delivery Time :
30-40 days
Packaging Details :
Polywood box/ Pallet
Material :
CF8M And CF8
Certificate :
CE&ISO
Sealing :
PTFE
Thread Type :
NPT/BSPT/ISO/DIN Thread
MOQ :
5 PCS
Package :
Polywood box/ Pallet
Operation Type :
Manual Lever/ Gear
Description

CE And ISO Certificate Stainless Steel CF8M And CF8 1000 Wog Hose Nipple BSP JIS Thread

1. Description

Hose Nipple is used for connecting two different diameter pipes. The pipe fittings are manufactured using

in accordance with ANSI B16.34 international standards. It is also used for water soft pipes and connect with other kind of pipes.

2. Application

  • Food and Beverage
  • Irrigation and Pumping
  • Petrochemical
  • Geothermal
  • Marine
  • Agriculture and Machinery
  • Motoring

3. Testing

  • All fittings are made from CF8M (316) Stainless Steel material and conform to ISO 9001 standard
  • Material certificates available on request
  • All fittings are manufactured by investment cast process, nipples produced from welded tube
  • All items are tested & inspected prior to dispatch
  • CE approved

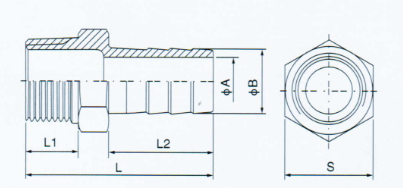

4. Specification and Pictures

Size 1/8" 1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4"
A 4.0 5.0 6.0 9.0 15.0 21.5 27.0 33.0 45.0 55.0 68.0 91.0
B 7.0 9.0 10.0 14.0 20.0 27.5 34.0 40.0 52.0 63.5 76.5 103.0
L2 20.0 24.0 25.0 26.0 35.0 45.0 45.0 46.0 55.0 67.0 92.0 96.0
L 34.0 42.0 45.0 50.0 60.0 70.0 75.0 80.0 90.0 110.0 135.0 150.0
S 14.0 16.0 19.0 22.0 27.5 36.5 46.0 52.0 63.0 79.0 93.0 118.0

1000 Wog Hose Nipple Stainless Steel CF8M And CF8 Material

1000 Wog Hose Nipple Stainless Steel CF8M And CF8 Material
