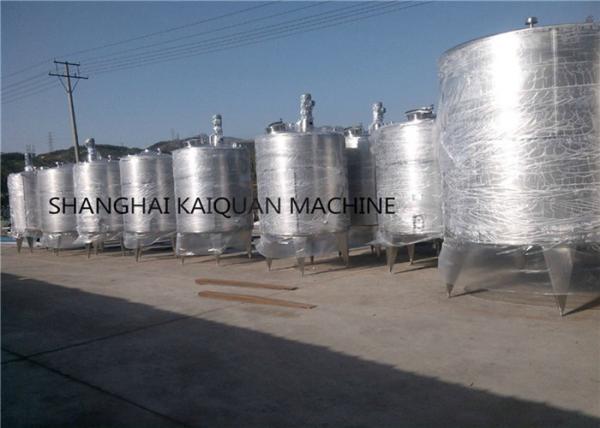

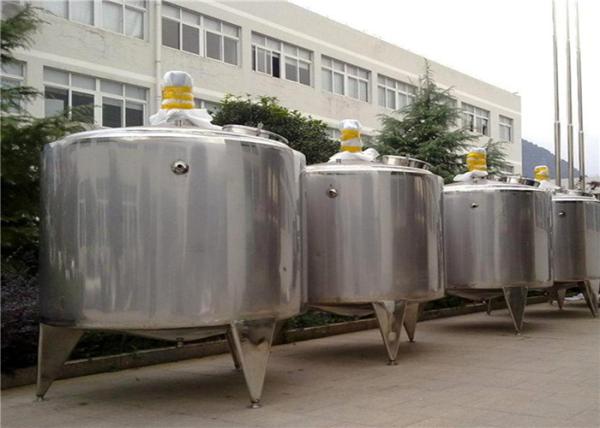

Inox Stainless Steel Liquid Storage Tanks For Food Chemistry Industry
Inox Stainless Steel Liquid Storage Tanks For Food Chemistry Industry
Inox Stainless Steel Liquid Storage Tanks For Food Chemistry Industry
Inox Stainless Steel Liquid Storage Tanks For Food Chemistry Industry
Inox Stainless Steel Liquid Storage Tanks For Food Chemistry Industry
Inox Stainless Steel Liquid Storage Tanks For Food Chemistry Industry
Specifications
Model Number :
KQ Series
Certification :
ISO , CE
MOQ :
1 Sets
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Sets / Month
Delivery Time :
25 days after get your advance payment
Packaging Details :
Standard Export Wooden Cases
Name :
stainless steel liquid mixing tank
Material :
Sanitary Stainless Steel 304 / 316
Heating :
Steam /Electric Heating
Level Meter :
Standard or Digital
Air Vent :
Yes / No
Butterfly Valve :
Yes /NO
Thermometer :
Yes / No
Cleaning :
CIP Cleaning Ball
Description

Sanitary Stainless Steel Inox Liquid Mixing Tank For Food Chemistary Industry

1. Introduction of Stainless Steel Inox Liquid Mixing Tank :

Specification: 10L~30000L
Material: SS316L or SS304
Surface finish: Inside surface is Ra0.28~0.6μ M by mechanical Polish. (passivation or electropolish are optional). Outside surface is Ra0.6~0.8μ M by satin finish.
Pressure: ATM or pressure vessel (-0.1~1Mpa)
Structure: Single layer vessel, vessel with jacket, vessel with jacket and insulation
Jacket type: Dimple jacket, full jacket, or coil jacket
Insulation material: Rock wool
Components can be equipped as request:
Standard components: Manhole or handhole, sight glass, cleaning ball
Optional components:
Vent filter with Pall cartridge or China brand cartridge
Temp. Gauge, display on the gauge directly on the vessel
Temp sensor PT100, digital display on the control cabinet by instrument
Temp sensor with control for heating and cooling
Level gauge with digital display on the control cabinet by instrument
Load cell
Valves

2. Technical Parameter :

Parameters Model JTRCL-100 JTRCL-150 JTRCL-300 JTRCL-500
Effective volume:L 100 150 300 300
Tank Diameter:mm Φ500 Φ550 Φ750 Φ900
Height:mm 500 650 700 650
Mixing Power:kW 0.25 025 0.37 0.75
RPM:r/min 20~400(Can adjust the design according to the customer's usage)
JTRCL-800 JTRCL-1000 JTRCL-1500 JTRCL-2000
800 1000 1500 2000
Φ1000 Φ1100 Φ1300 Φ1300
1000 1000 1000 1500
1.1 1.5 2.2 2.2
20~400(Can adjust the design according to the customer's usage)
