Specifications
Model Number :
RGZ Series
Certification :
CE ISO
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
30 Set per month
Delivery Time :
20 to 35 days after get your advance payment
Packaging Details :
Standard Wooden Box
Name :
Beverage Plastic Bottle Filling Machine
Material :
Sanitary Stainless Steel 304 / 316
Bottle Material :
Plastic & PVC
Capacity :
150MLto 5000ML
Bottle /Hour :
3000-12000 Bottles /Hour
Air supply pressure :
0.7MPa
Air consumption :
0.8M3/min
Rinsing water pressure :
0.2-0.25 MPa
Description

Full Automatic Stainless Steel Beverage PVC Plastic Bottle Filling Machine

1. Picture and instruction of the machine :

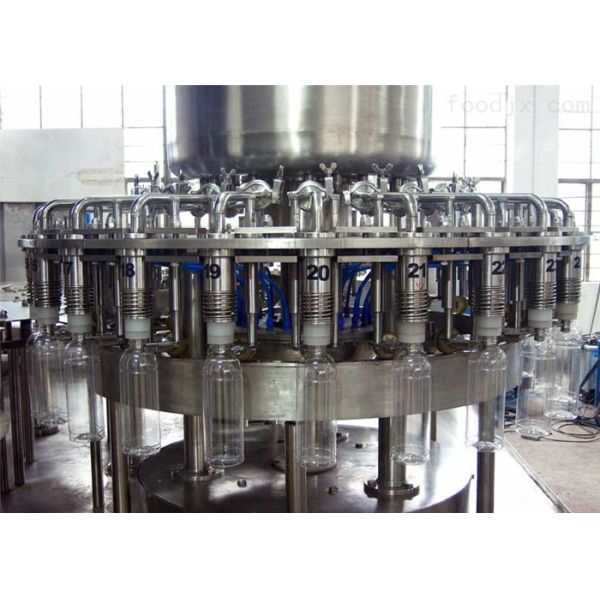

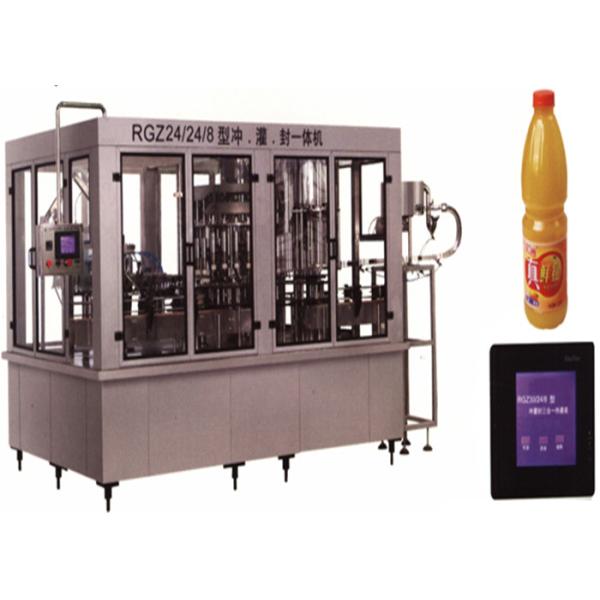

Stainless Steel Beverage Filling Machine 150 ML - 5000 ML Capacity With PVC Plastic Bottle

Stainless Steel Beverage Filling Machine 150 ML - 5000 ML Capacity With PVC Plastic Bottle

This series of equipment is used for the production of non-gas beverages such as fruit juice, fruit wine, mineral water and purified water in polyester bottles. It can be used for flushing, filling and capping in one machine.
Introducing the latest technology from Japan and Italy, adopting the pressure-type constant-liquid filling principle, with high filling speed, stable liquid level control, and no leakage.
Spring-type flushing pliers, the empty bottle is automatically rotated 180° along the track, flushed inside and outside, and the flushing bottle has high efficiency.
The magnetic torque type capping head is used to realize the functions of capping and capping. Capping torque can be adjusted steplessly, with a constant torque screw cap function, and does not damage the cap, seal tight and reliable.
The whole machine adopts PLC computer program control and man-machine interface touch screen buttons, with automatic control of liquid level in material tank, no bottle filling, no bottle filling, no bottle without capping, etc. Digital display of production capacity, adjustment is extremely convenient.

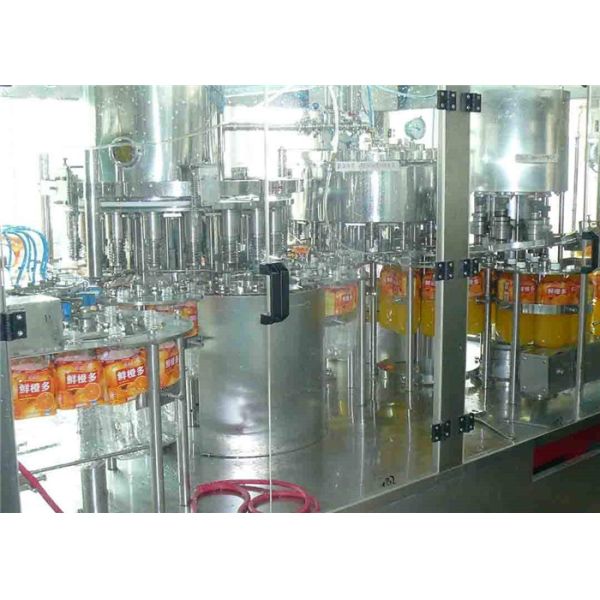

Stainless Steel Beverage Filling Machine 150 ML - 5000 ML Capacity With PVC Plastic Bottle

2. Technical Parameter :

Item Model ZGF16-12-6 ZGF18-18-6 ZGF24-24-8 ZGF32-32-8
1 Production Capacity(600ml)(b/h) 3000 5000 10000 12000
2 Filling Precision ≥±5mm Liquid level
3 Polyester Bottle Standard(mm) BottleDiameter∮50-∮100;Height :150-310
4 Suitable Cap Shape Plastic Screw Cap
5 Water Pressure of Washing Bottle(Mpa) 0.18
6 Water Consumption for Water Bottle(Kg/h) 800 1600 2500 3500
7 Spraying Position 5 5 6 12
8 Dripping Bottle Position 3 3 3.5 7
9 Gas Cource Pressure(Mpa) 0.4
10 Gas Consumption(m3/min) 0.3 0.3 0.4 0.5
11 Total Power(kW) 4.23 5.03 6.57 8.63
12 Total Weight(Kg) 2500 3500 5500 8000
13 Dimension(L×W×H)(mm) 2300×1550×2200 2350×1650×2200 3200×2100×2250 3500×2200×2250

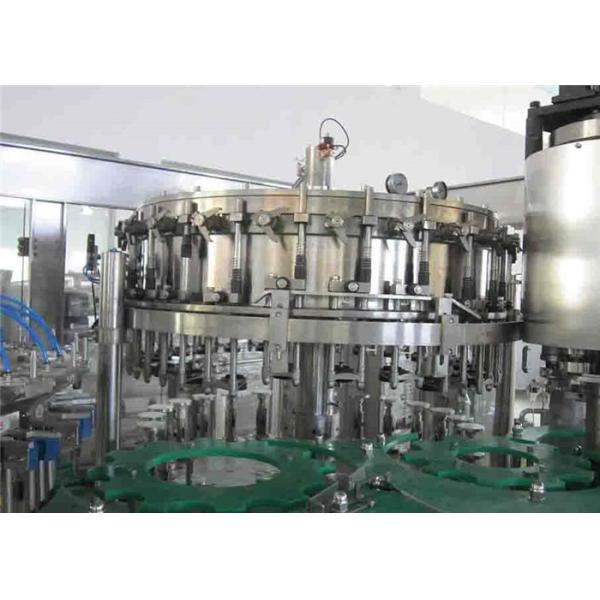

Stainless Steel Beverage Filling Machine 150 ML - 5000 ML Capacity With PVC Plastic Bottle
