Specifications
Model Number :
KQ Series
Certification :
ISO
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
30 Set per month
Delivery Time :
25 days after get your advance payment
Packaging Details :
Standard Wooden Box
Name :
Beverage Filling Machine
Material Type :
Liquid
Bottle Material :
Plastic & PVC
Capacity :
150MLto 5000ML
Bottle /Hour :
3000-12000 Bottles /Hour
Gas Source Pressure :
0.6Mpa
Packing :
Wooden Box
Warranty :
One year
Description

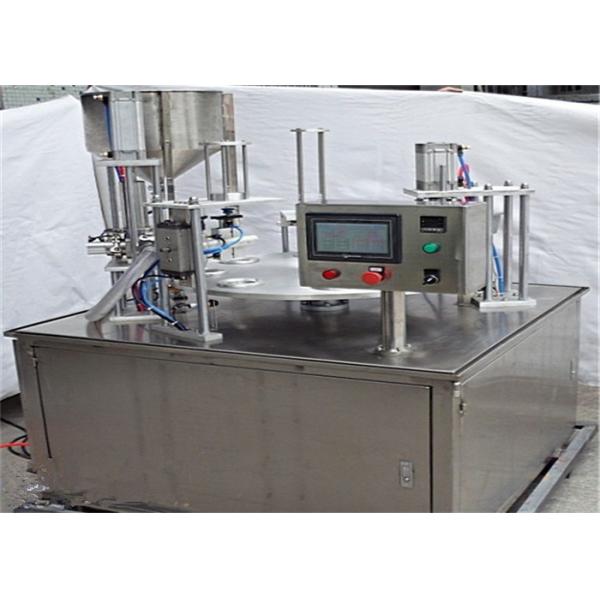

Professional Beverage Filling Machine Plastic PVC Bottle Material For Industry

1. Introduction :

The machine is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic. The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device.

The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles. The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications.

The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably. It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity.

On the bases, the filling parts of the machine can be changed into filling methods of lower vacuum. The filling category of lower vacuum (Z type machine) is applicable in glass bottles, filling alcohol, soy and such like materials. The aluminum theft proof cap and plastic cap can be adopted. The machine is an idea-preferred equipment for beverage makers.

2. Technical Parameter :

Item Technical Parameter
Production Output 16000BPH @ 500ml PET bottle
Rinsing heads 10pcs
Filling nozzles 8pcs
Capping heads 4pcs
Suitable to PET bottle Size Diameter Φ50~Φ95mm
Highness:160~320mm,
Bottle neck: 28mm,
Bottle volume from 200 to 2250ml
Suitable to Caps PCO28
Washing Water Required 2000 liter per hour
Washing Pressure Required 0.2Mpa
Washing time 3 second
Drip water time 3 second
Working Power 380V AC 3-phase
Compressed Air Pressure (for caps arranger) 0.8MPa
Compressed Air Consumption (for caps arranger) 2m3/min
Control Panel Power 24V DC
Filling Pressure gravity
Filling temperature 85 degree
Machine Size 2800x2650x2700mm
Gross Weight 6,000kg approximately
Total Power 3.92KW

Professional Beverage Filling Machine Plastic PVC Bottle Material For Industry
