Specifications
Model Number :
ZC
Certification :
ISO
MOQ :
Mineral Water Pure Water Packing Filling Production Filling Machine
Price :
Negotiable based on your special requirement
Payment Terms :
T/T, L/C
Supply Ability :
30 Set / Month
Delivery Time :
30 to 40 days
Packaging Details :
Standard Export Wooden Box
Name :
Beverage Packing Filling Machine
Material :
Sanitary Stainless Steel 304 / 316L
Production :
2000-8000Bottle / Hour
Application :
Mineral Water ,Pure Water ,Fruit Juice .
Height of bottle :
160 to 340mm
Packing :
Wooden Box
Main moto :
ABB OR SEW .
Description

Mineral Water Yogurt Pure Water Packing Filling Production Filling Machine

1. Technical Parameter :

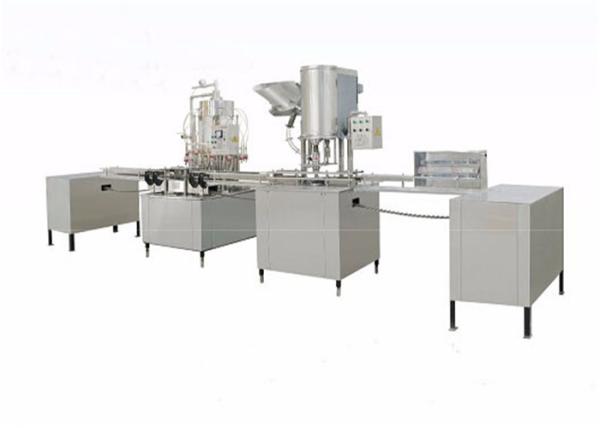

Mini Mineral Drinking Water Filling Machine / Bottling Plant, For Small Factory, 1000-2000BPH

1. Product: drinking water
2. Suitable bottle: 0.25-2L
3. Productivity: 1000-2000bph(@ 0.5L)
4. Authentication: ISO,CE,SGS

Mini Mineral Drinking Water Filling Machine / Bottling Plant, For Small Factory, 1000-2000BPH

characteristics:

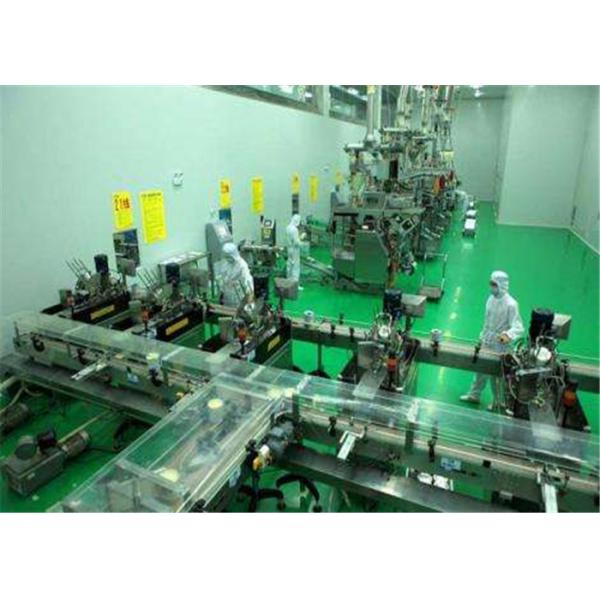

(1) Whole water production line process:

Raw mineral water→ raw water tank→ raw water booster pump→mechanical filter→activated carbon filter→precise filter →UF Components→mineral water tank(→Ozone device/UV device)

→Mineral water → Bottle filling machine(lamp-checking+bottle dryer)

→ Code printer → Bottle labeling machine →Bottle packing machine → Bottle blow molding machine

(2) The system description:

About the water treatment machine:

Raw water tank to prevent the shortage of the raw water and unsteady pressure. It has the floater ball valve and liquid level sensor.

Raw water tank to guaratee the water supply and steady pressure

Pre-treatment:

the mechanical filter to remove the big particle, suspended matter, sediment.

the activated carbon filter to get rid of the odour, organic substance, organic substance, residual chlorine etc.

the precise filter to filter the particles from the pre-treatment part.

UF system: filter particles and colloid in the mineral water and retain mineral element.

the Ozone which makes pure water fresh and UV which sterilizer the bacteria and finally flow the pure water tank.

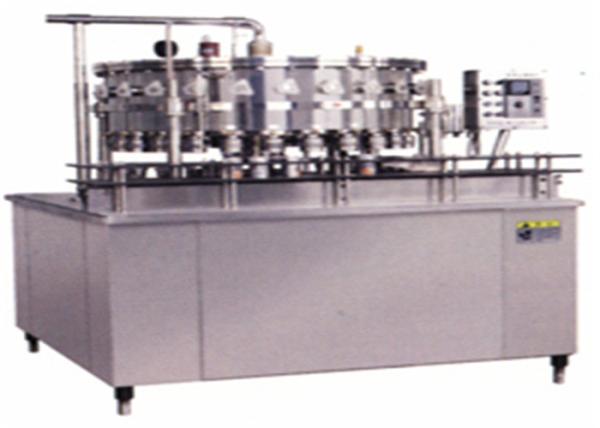

About the bottle filling machine: (optional item:Lamp-checking and bottle dryer)

(takes bottles from the blow molding machine to the air conveyor)

Firstly, washing the bottles. Secondly, filling water into the bottles. Lastly capping the bottles.

Lamp-checking to watch wherther it has the impurity.

Bottle dryer to get rid of the droplet on the bottle.

Mini Mineral Drinking Water Filling Machine / Bottling Plant, For Small Factory, 1000-2000BPH

main technical parameters:

Capacity 1000-2000 Bottle per hour on basis of 500-2000ml bottle.adjustable
Rinsing & Filling & Capping heads 8pcs rinsing heads, 8pcs filling heads, 3pcs capping heads
Suitable PET bottle size Diameter Φ50~Φ110mm Highness:150~320mm, for bottle 250-2000ml
Suitable to fill Water & non-carbonated drink
Washing Water Required 400 liter to 500 liter per hour
Washing Pressure Required 0.4Mpa
Filling Pressure Gravity filling
Working Power 380V AC 50HZ 3-phase, (other power supply is available)
Control Panel Power 24V DC
Machine Size 1750×1550×2250 mm
Gross Weight 2000kg approximately
Total Power 3.0Kw

Mini Mineral Drinking Water Filling Machine / Bottling Plant, For Small Factory, 1000-2000BPH

Mineral Water Bottling Machine , Yogurt Pure Water Packaging Machine

Item Model DY-12 DY-18 DY--24 DY-32
1 Production Capacity 800-2000B/H 1200-3000B/H 2000-5000B/H 3000-8000B/H
2 Can type Glass,PE,Can
3 Filling Pressure 0.2-0.3Mpa
4 Filling temperature 2-6℃
5 Power 1.1KW 1.5 KW 1.5 KW 2.2 KW
6 Weight 1500kg 1800kg 2700kg 3300kg
7 Dimension (mm) 1060×1200×1900 1280×1100×2000 1500×1280×2000 1900×15
