Kaiquan Beverage Filling Machine / Juice Bottle Filling Machine For Food Factory
Kaiquan Beverage Filling Machine / Juice Bottle Filling Machine For Food Factory
Kaiquan Beverage Filling Machine / Juice Bottle Filling Machine For Food Factory
Kaiquan Beverage Filling Machine / Juice Bottle Filling Machine For Food Factory
Kaiquan Beverage Filling Machine / Juice Bottle Filling Machine For Food Factory
Kaiquan Beverage Filling Machine / Juice Bottle Filling Machine For Food Factory
Specifications
Model Number :
CG
Certification :
ISO
MOQ :
CG Series Fruit Juice Milk Beverage Bottle Washing Filling Package Machine
Price :
Negotiable based on your special requirement
Payment Terms :
T/T, L/C
Supply Ability :
30 Set / Month
Delivery Time :
30 to 50 days
Packaging Details :
Standard Export Wooden Box
Name :
mineral water bottling machine
Structure :
Linear
Production :
2000 - 8000 Bottle / Hour
Power :
1.12-1.87Kw
Height of bottle :
160 to 340mm
Application :
Mineral Water ,Pure Water ,Fruit Juice .
Packing :
Wooden Box
Specification :
CE, ISO, CCC, GSG
Description

Stainless Steel Juice Beverage Filling Machine For Food Factory Make to Order

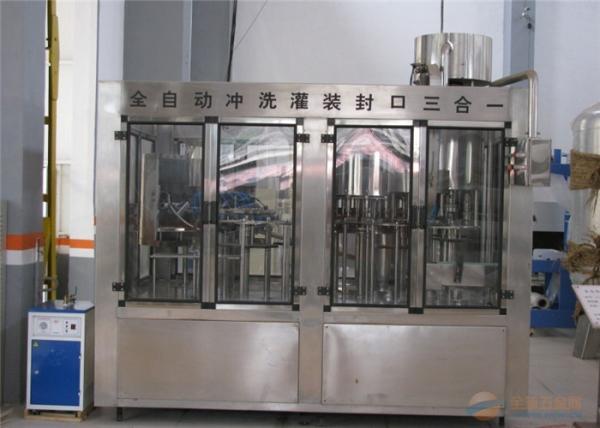

1. Introduction of Beverage Filling Machine :

This series machine integrates washing, filling and capping into one unit. It can be used for hot filling production of different kinds of fruit juice, tea. This series machine can also be used for filling purified and mineral water.
Features:

1. The suspending bottleneck clamping design make the bottle stable during the high speed moving conditions. By changing a few parts, it can meet the need of production of different types of bottles easily.

2. The new generation of stainless steel grab is adopted and the grabs have no contact with the area above the bottle's screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.

3. The advanced micro negative-pressure filling technology used in this machine makes the filling quick, steady and accurate. The beverage -holding tank is fully-closed and also, temperature control device and CIP washing interface are intalled.

4. This machine can meet all the technical requirements for hot filling below 95 degree. And before capping, bottle mouth will be cleaned by RO washing device.

5. Advanced technologies, such as human-machine interface touch-screen and PLC computer program control are adopted in this machine.

2. Details :

Model
KQG8-8-3
KQG16-12-6		 KQG18-18-6
KQG24-24-8
KQG32-32-10
KQG40-40-12

Production Capability(500ml b/h)
2000
2500
3500-4000
7000-7500
8000-10000
10000-12000

Filling precision
≤+5mm(Liquid Level)

Filling pressure(Mpa)
≤0.4

PET bottle specification(mm)
(Bottle diameter):Ø50- Ø110;(Height):150-320

Suitable cap shape
Plastic Screw Cap 28MM Or 30MM

Total Power(kw)
3.2
3.5
4
4.8
7.6
8.3

Weight(kg)
2000
3000
3500
4000
4500
5000

Dimension (mm)
1750*1550
*2400
2450×1800
×2400
2650×1900
×2400
2900×2100
×2400
4100×2400
×2400
4550×2650
×2400
