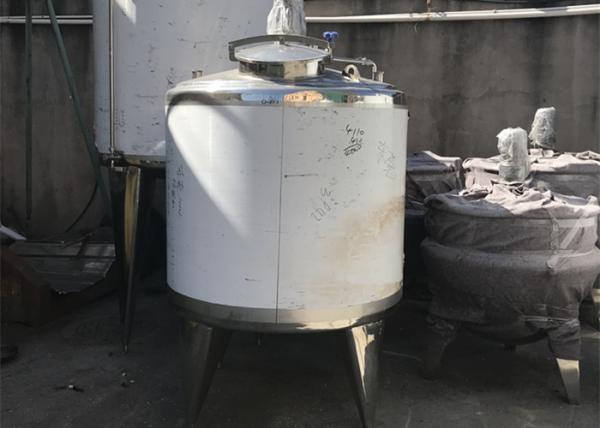

Large Stainless Steel Tank , Steam Heating Milk Storage Tank For Production Line
Large Stainless Steel Tank , Steam Heating Milk Storage Tank For Production Line
Large Stainless Steel Tank , Steam Heating Milk Storage Tank For Production Line
Large Stainless Steel Tank , Steam Heating Milk Storage Tank For Production Line
Specifications
Model Number :
KQ 1000L ,KQ 2000L ,KQ 3000L
Certification :
ISO ,CE
MOQ :
1Set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Sets / Month
Delivery Time :
25 days after get your advance payment
Packaging Details :
Standard Export Wooden Box
Name :
stainless steel milk tank
Capacity :
100L - 30000L
Material :
Food Grade Stainless Steel 304 / 316
Motor :
Siemens ,ABB , SEW
Speed of mixer :
36RPM ,48RPM ,72RPM ,2900RPM
Make to drawing :
Yes
Warranty :
One year
Payment :
TT ,30% in advance ,the rest before shipment .
Description

Big Capacity Stainless Steel Steam Heating Milk Mixing Tank For Production Line

1. Introduction of Milk Mixing Tank :

Feature

1. There are 600L-20000L variety of specifications, it can be designed, customized according to the customers' requirements.
2. Nsulation material is rock wool (keep warm) or PU (Keep cool)
3. Connector use tri-clamp, inner tank use SS304 OR SS316L, the inner surface mirror .
4. Ra≤0.4μm, outer surface can be polishing, wiredrawing, sandblasting according to customers' requirement.

Application :

• Water treatment: NF, UF, RO and ion exchange resin, etc.
• Food and beverage industry: filtration of juice, tea drinks, beer, liquor, wine, rice wine, healthy drinks and bottled purified water, etc.
• Drugs industry: injections, medical filtration, biologic extraction, purification and concentration.
• Petrochemical industry: oil extraction reinjection, chemical reagents, lubricant and high-purity chemical was filtered.
• The electronic industry: electronic and microelectronics, semiconductor industry water filtration.
• Fine chemicals industry: bio-engineering, oil refined, cleaning mixture, scientific experiments, etc.

2. Technical Parameter :

Parameter Model KQ-75 KQ-150 KQ-300 KQ-600 KQ-1000 KQ-2000
Effective volume:L 75 150 300 600 1000 2000
Barrel Diameter:mm Ф250 Ф600 Ф800 Ф1000 Ф1100 Ф1300
Height:mm 460 550 600 800 1000 1500
Mixing Motor power:KW 0.37 0.55 0.75 0.75 1.1 1.5
Mixing work RPM :r/min 200(propeller) (The design can be adjusted according to customers' usage)
Volume Dimension of tank (Dxh) Total height(H) Insulate layer Inlet&Outlet
(L) (mmxmm) (mm) (mm) (mm)
100 550*550 1450 60 25
200 700*800 1500 60 25
500 840*1000 1950 60 38
1000 1060*1220 2750 60 38
2000 1340*1500 3000 60 38
3000 1410*2000 3600 60 38
5000 1810*2000 4000 60 51
10000 2300*2440 4600 60 51
15000 2530*3000 5200 60 51
20000 2640*3660 5760 60 51

Large Stainless Steel Tank , Steam Heating Milk Storage Tank For Production Line

Large Stainless Steel Tank , Steam Heating Milk Storage Tank For Production Line
