500 - 2000 Gallon Stainless Steel Tank , Milk Cooling Tank For Beverage Factory
500 - 2000 Gallon Stainless Steel Tank , Milk Cooling Tank For Beverage Factory
500 - 2000 Gallon Stainless Steel Tank , Milk Cooling Tank For Beverage Factory
500 - 2000 Gallon Stainless Steel Tank , Milk Cooling Tank For Beverage Factory
Specifications
Model Number :
KQ 500 KQ 1000 KQ3000
Certification :
ISO ,CE
MOQ :
1Set
Price :
Negotiable based on special order
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200 Set Per Month
Delivery Time :
15 days after get your advance payment
Packaging Details :
Standard Export Wooden Box .
Name :
stainless steel milk tank
Material :
Stainless Steel 304 /304L /316 /316L
Heating :
Steam Heating / Gas Heating / Electric Heating
Motor :
ABB , Siemens , SEW
Speed of mixer :
18RPM ,36RPM ,48RPM ,72RPM
Treatment :
Inside Mirror and Outside Polished
Description

500 Gallon 1000Gallon 2000Galon Milk Cheese Yogurt Heating Cooling Mixing Tank

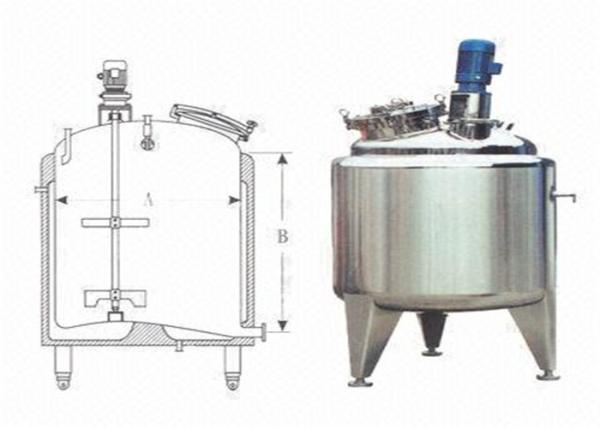

1. Introduction of the mixing tank .

The tank is mainly used for storing, mixing and heating liquid. It's the ideal mixing, heating and cooling equipment for chemical, food and beverage factory and pharmacy industry.

Capacity: 3000Litres

Material: Sanitary Stainless Steel 316

* Type: with Jacket and insulation

*Internal shell thickness: 4 mm (316)

* Jacket thickness: 3mm(304)

*PU insulation wall: 50mm

* Out shell thickness: 2 mm(304)

*Appearance:

Ellipsoidal head top and down

* Accessories Included:

(1) Manhole

(2) Liquid Inlet / Outlet

(3) Electric Heating Resistance

(4) Glycerin Inlet /Outlet

(5) Temperature Gauge

(6) Electric Motor & Inverter

(7) High Speed Mixer (1600RPM)

(8) CIP Auto Cleaning Ball System

(9) Four Legs

(10)Electric Control Board

(11) Level Meter & Digital Level Meter

2. Technical Parameter :

Tank Theory Capacity(L) 3200L
Tank Working Capacity (L) 3000L
Working Temperature 80℃
Material Internal : SS.316 4mm,The rest SS.304
Surface Treatment Inside Mirror & Polished Outside
Voltage /Hz /Phase Make to your order .
Feeder (Manway ) 450mm (Can removed easily by Worker .)
Heating Electric Heating
Speed of Mixer( Three Blades) and Power of Motor 36RPM. 4Kw
Electric Heating Resistance (Can be removed ) 12Kw * 6Pieces = 48KW
Heating Area(M2) 6
Manhole Φ450mm
Glycerin Inlet /Outlet (Clamp Type ) Φ51mm
Stirrer Type :
Dimension(CM) 1.55*1.55*260 (Included The Motor 25CM )
Package Wrap with Soft material then put to wooden box .
Weight (Kgs ) 1500Kg

500 - 2000 Gallon Stainless Steel Tank , Milk Cooling Tank For Beverage Factory
