Fruit Juice Milk Mixing Tank / Stainless Steel Process Tanks 1000L 2000L 3000L
Fruit Juice Milk Mixing Tank / Stainless Steel Process Tanks 1000L 2000L 3000L
Fruit Juice Milk Mixing Tank / Stainless Steel Process Tanks 1000L 2000L 3000L
Fruit Juice Milk Mixing Tank / Stainless Steel Process Tanks 1000L 2000L 3000L
Fruit Juice Milk Mixing Tank / Stainless Steel Process Tanks 1000L 2000L 3000L
Fruit Juice Milk Mixing Tank / Stainless Steel Process Tanks 1000L 2000L 3000L
Specifications
Model Number :
KQ1000L , KQ2000L ,KQ3000L
Certification :
ISO ,CE
MOQ :
1 Set
Price :
2600USD /Set
Payment Terms :
T/T, L/C, Western Union
Delivery Time :
15 to 20 days after get your advance payment
Packaging Details :
Standard Export Wooden Box
Name :
jacketed stainless steel tank
Material :
Stainless Steel 316 /304
Type :
Jacketed & Food Grade
Tank Wall :
Inner wall ,Jacketed Wall , Outside Wall
Motor :
0.55 to 7.5Kw
Pressure :
0.2Mpa
Manhole :
Yes
Air Vent :
Yes
Description

Fruit Juice Processing Stainless Steel Milk Mixing Tank 1000L 2000L 3000L

1. Tank Picture and Instruction :

sanitary juice liquid mixing tank stainless steel storage tank
sanitary juice liquid mixing tank stainless steel storage tank can be used as liquid storage tank, liquid mixing tank ,liquid heating or cooling tank and so on.It is suitable for food, dairy products, fruit juice beverage, pharmaceutical and chemical and biological engineering.
Finish:Mirror or Matt Polish; Ra<0.4um
1. Material:Stainless steel, austenitic stainless steel 304, 316L etc, with insulating material or not
2. Tank shell thickness:3mm at least (according to the design or your required)
3. Design work pressure (MPa):-0.1~~1.6MPa (According to the China national standard, breakthroughs in the foregoing measurements are allowed in special cases)
4. Design work temperature:-4~~+150C
5. General accessories(If required):Manhole, CIP, respirator, sight glass, mixing(Top side or bottom)
Certification: CE ISO9001:2000.

Have different kinds of agitators:
1, Bottom magnetic agitator with propeller impeller, speed from 50-400rpm or 50-800rpm. this kind of agitator is mixing thin viscosity , such as eyedrop, injection, CIP liquid, water, etc.
2, Top mechancial agitator with propeller impeller, speed at fix 71rpm or adjustable 20-200rpm or special requirement. this kind of agitator is mixing syrup, injection, blood, oral liquid, culture media, etc.
3, Top mechanical agitator with anchor or frame impeller, speed is from 10-70rpm. it is mixing higher viscosity , such as sediment or viscosity oral liquid, etc.
4, Top emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing most high viscosity , such as suspension, oil, fat emulsification , etc.
5, Bottom emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing most high viscosity , such as suspension, oil, fat emulsification , etc.

Fruit Juice Milk Mixing Tank / Stainless Steel Process Tanks 1000L 2000L 3000L

Fruit Juice Milk Mixing Tank / Stainless Steel Process Tanks 1000L 2000L 3000L

2. Technical Parameter :

cooling and heating tank with scraper agitator or with mixer
Effective
Volumn(L)		 Dimension of
Tank(mm*mm)		 Total Height
(mm)		 Diamension
of inlet&outlet
(mm)		 Heat
preservation
layer(mm)
500 840*1000 2250 38 60
600 920*1000 2300 38 60
700 990*1000 2300 38 60
800 950*1220 2500 38 60
900 1010*1220 2500 38 60
1000 1060*1220 2550 51 60
1500 1160*1500 2850 51 60
2000 1340*1500 2900 51 60
3000 1410*2000 3400 51 60
4000 1620*2000 3450 51 60
5000 1810*2000 3500 51 60
6000 1980*2000 3550 51 60
7000 1930*2440 4000 51 60

3. Inside of the tank :

Fruit Juice Milk Mixing Tank / Stainless Steel Process Tanks 1000L 2000L 3000L

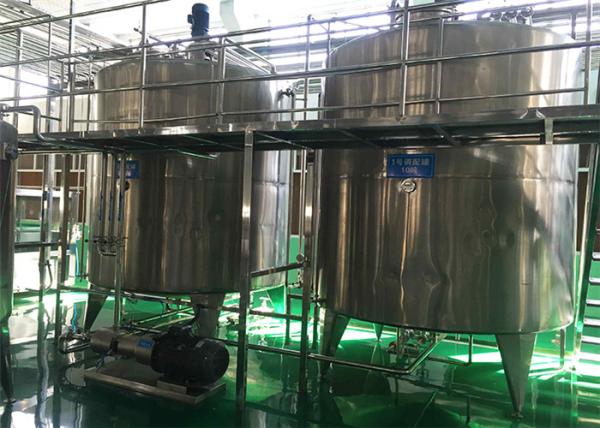

4.Factory :

Fruit Juice Milk Mixing Tank / Stainless Steel Process Tanks 1000L 2000L 3000L

Fruit Juice Milk Mixing Tank / Stainless Steel Process Tanks 1000L 2000L 3000L
