High Efficiency Stainless Steel Jacketed Kettle 300L 400L 500L 1000L
High Efficiency Stainless Steel Jacketed Kettle 300L 400L 500L 1000L
High Efficiency Stainless Steel Jacketed Kettle 300L 400L 500L 1000L
High Efficiency Stainless Steel Jacketed Kettle 300L 400L 500L 1000L
Specifications
Model Number :
KQ100L
Certification :
ISO
MOQ :
1Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
1000Set per month
Delivery Time :
15 days after get your advance payment .
Packaging Details :
Standard Export Wooden Box .
Name :
electric steam kettles commercial
Material :
Sanitary Stainless Steel 304 / 316 / 316L
Type :
Titling Type / Vertical Type
Wall Thickness :
Inner Wall :3 mm ,Outside Wall :2mm
Mixer :
Blade Mixer ,Mixer with Scraper
Application :
Jam ,Sauce ,Meat ,Milk etc .
Heating :
Electric Heating /Steam Heating
Motor :
ABB / Siemens / China Brand
Packing :
Wooden Box
Description

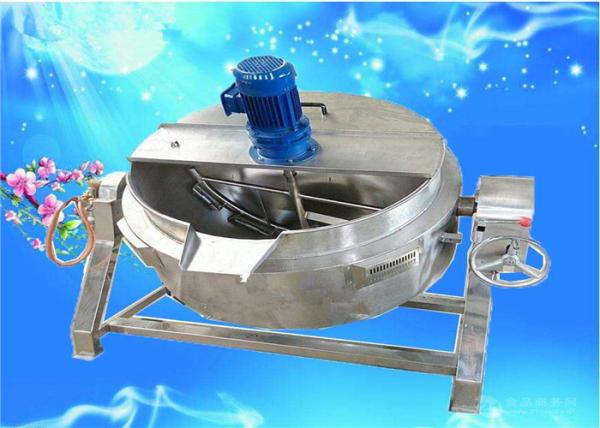

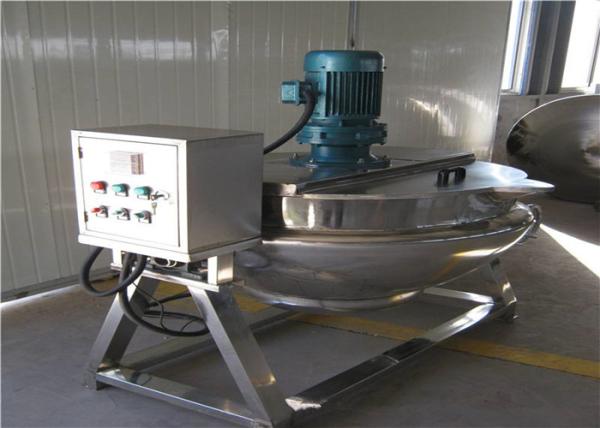

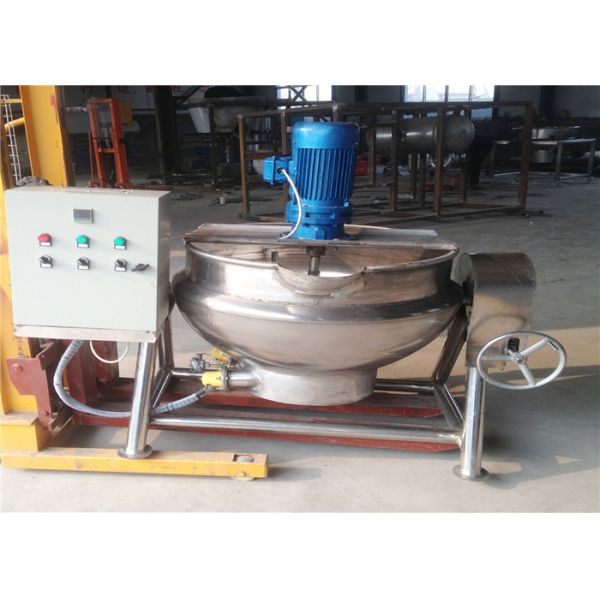

300L 400L 500L 1000L Stainless Steel Electric Heating Jacketed Kettle

1. Specifications


1. Use electricity as heating source
2. Large heating surface
3. High heat efficiency
4. Beautiful surface

The usage of the stainless steel jacket kettle:


The stainless steel jacket kettle can be applied to a wide variety of foods processing, such
as candy, medicine, dairy, liquor, cake, candied fruit, drink, canned goods, sauced meat etc.
It also can be used in making soup, cooking stir-fry, stewing meat, cooking porridge and so
on, and it is a wonderful equipment to improve quality, reduce time and improve working
conditions during foods processing.

The features of the stainless steel jacket kettle:


The voltage is 380V, and it is equipped with electrical bar. Heat transfer oil in the interlayer.
Big heating surface, high heat efficiency, short boiling time, temperature easy to be controlled.

The structure of the stainless steel jacket kettle:
The surface of this stainless steel jacket kettle selected 304 stainless steel, this material is
corrosion resistant and it is convenient to install and operate the electric cooking pot.
The material of the out pot can be chosen from the followings:

1) Stainless Steel 316 / 316L
2) Stainless steel SUS304

2. Teachnical Parameters

Effective volume(L) Heating area(m2) Jacket working pressure(Mpa) Dimension(mm)
50 0.4 <0.2 720*600*830
100 0.45 <0.2 800*650*950
150 0.76 <0.2 1350*660*1000
200 1.0 <0.2 1400*700*1100
300 1.15 <0.2 1450*800*1110
400 1.44 <0.2 1500*850*1140
500 1.65 <0.2 1600*900*1150

3. Application


Mainly used for opean concentration of liquids in industries of pharmaceutical industry,
chemical industryy,food indusry,light industry etcs.


Structure


sugar cooking pot is composed of kettle,bracket,worm wheel and worm etc. The kettle can revolve within 180°, the equipment is used for open concentration,mainly for decocting and concentration of liquid in industries of pharmaceutical industry,food industry,chemical industry and light industry etc.Contact area of the equipment with aterials is made of stainless steel SUS304,which has perfect corrosion-proof performance,and is highly endurable according to GMP requirements.Blender also can be added according to customer requirements.


Features


The pot can 220v / 380v electricity or steam as the heat source. Electric heating sandwich Built-in electric heating rods, thermocouple and thermal oil, up to 150 ºC, controlled by the electronic control box. Equipment There are heating area, high thermal efficiency, uniform heating, the liquid material boiling time is short, the heating temperature is easy Control and other features. The pot pot body layer (the inner pot) using acid resistant stainless steel body's proud Made with pressure gauge and safety valve, electric control box. Equipment and beautiful, easy to install.
