Easy Operation Stainless Steel Jacketed Kettle / Jam Kettle KQ-500 ISO Certification
Easy Operation Stainless Steel Jacketed Kettle / Jam Kettle KQ-500 ISO Certification
Easy Operation Stainless Steel Jacketed Kettle / Jam Kettle KQ-500 ISO Certification
Easy Operation Stainless Steel Jacketed Kettle / Jam Kettle KQ-500 ISO Certification
Easy Operation Stainless Steel Jacketed Kettle / Jam Kettle KQ-500 ISO Certification
Easy Operation Stainless Steel Jacketed Kettle / Jam Kettle KQ-500 ISO Certification
Specifications
Model Number :
KQ100L to KQ 1000L
Certification :
ISO
MOQ :
1 Set
Price :
2500USD /Set
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100 Set Per Month
Delivery Time :
10 to 15 days after get your advance payment
Packaging Details :
Standard Export Wooden Box
Name :
electric steam kettles commercial
Material :
Food Grade Stainless Steel 304
Capacity :
100L to 600L
Heating :
Steam Heating or electric heating
Motor :
ABB / Siemens / China Brand
Speed of mixer :
36RPM
Titling Wheel :
Yes / No
Description

Stainless Steel Stainless Steel 500L Jam Jacketed Cooking Kettle (KQ-500)

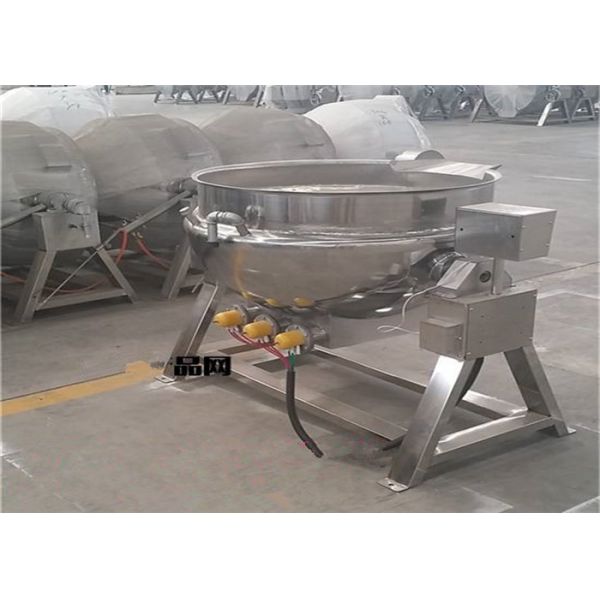

1. Jam Kettle Picture :

Product Application:

1. Beverage,milking,wine brewing, liquid items mixed and boiling ect.
2. Chilli sauce,jam,ketchup,sugar,cakes,confection,glace fruit such sticky liquid production .
3. Meat,seafood,braised food ect. canned food braising production .
4. Soup cooking,fried,stewing,boiling in large hotel,canteens,schools where there so many people.
Easy Operation Stainless Steel Jacketed Kettle / Jam Kettle KQ-500 ISO Certification
Product Introduce:

We have the jacketed kettle with oil heating and gas heating.For the oil heating,the jacketed kettle is consist of pan, plank ,worm wheel and worm. The Stainless steel jacketed kettle with mixer for food processing avoids material burning and make food pretty and tasty. The gas heating jacketed kettle combine the advanced perfect combustion system and the pot body materials . energy saving no waste gas,no waste residue and noise pollution. The mixing system according to diffeent craft demand Steam heating and electric heating and gas heating are for your options.

Product Feature:

Applicable range:

1. Used as liquid storage tank, liquid composing tank, liquid blending tank, temporary storage tank and hot water tank etc.
2. Ideal in field such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.

Structure characteristics:
1. Adopt structure of internal tank and external package, with heat preservation materials inside.
2. Material are all sanitary stainless steel.
3. Humanized structure design and easy to operate.
4. Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.

Configuration of tank:

1. Quick open manhole.
2. Various types of CIP cleaners.
3. Fly and insect resistant sanitary breathing cover.
4. Adjustable triangular bracket.
5. Dismountable materials input pipe assembly.
6. Thermometer (According to customer requirements ).
7. Ladder (According to customer requirements ).
8. Liquid level meter and level controller (According to customer requirements ).
9. Eddy-proof board.
The Planetary stirring mixing more throughly.
Variable mixing speeds meet different cooking processes.
The Mixing Scrapers touch the Bowl thoroughly,make the material not sticky paste.
The SUS304 body is not easy to rust and easy to clean.
With ISO certification.

The mixing head can be lifted 45° by hydraulic cylinder.
Easy operation with moveable control panel and save manpower.
Model GTJ-100 GTJ-200 GTJ-300 GTJ-500 GTJ-600
Volume (L) 100 200 300 500 600
Pot Size (mm) Φ700×530 Φ800×580 Φ900×630 Φ1100×730 Φ1200×780
Working Pressure(MPa) ≤0.3(jacket)
Working Temperature ≤100 degree C (material in pot)
≤143 degree C(jacket)
Blending Speed (r/min) 35
Steam Inlet(DN) 20 20 20 25 25
Heating Area(m2) 0.7 0.95 1.2 1.8 2.2
Evaporative Power(kg/h) 45 80 100 140 160
Steam Consumption (kg/h) 50 90 112 160 182
Motor Power (KW) 0.37 0.55 0.55 1.1 1.1
Dimension(cm) 115×80×100 135×90×107 145×100×115 165×120×136 176×130×146
Weight(kg) 180 200 220 290 320

Easy Operation Stainless Steel Jacketed Kettle / Jam Kettle KQ-500 ISO Certification

Easy Operation Stainless Steel Jacketed Kettle / Jam Kettle KQ-500 ISO Certification

Easy Operation Stainless Steel Jacketed Kettle / Jam Kettle KQ-500 ISO Certification

Stainless steel steam jacketed kettle cooking kettle
Stainless steel steam jacketed kettle cooking kettle is widely applied in food processing such as viscous syrup,jam,paste, jam, etc. also can be used to boil soup ,water ,cook food, stew and porridge.it's also the best choice for heating and mixing thick products. it is considered to be the ideal equipment in the area of improving quality, shortening the time and improving working conditions.
1. It is the best choose for sugar melting and jam making such as the matt jam and strawberry jam making, tomato sauce making and candy, medicine, dairy, alcohol, cake, beverage, sweetmeat.
2. This machine is composed of kettle ,backet ,worm wheel and worm etc.
3. The melting machine can revolve with 180 degree.
4. The machine is made of stainless steel SUS304 and 316L, which has perfect corrsion-proof performance, and is highly endurable according to GMP requirements.
5. Blender also can be added according customer requirements.
