Stainless Steel Sanitary Industrial Mixing Kettle For Juice Milk Sauce Ketchup
Stainless Steel Sanitary Industrial Mixing Kettle For Juice Milk Sauce Ketchup
Stainless Steel Sanitary Industrial Mixing Kettle For Juice Milk Sauce Ketchup
Stainless Steel Sanitary Industrial Mixing Kettle For Juice Milk Sauce Ketchup
Stainless Steel Sanitary Industrial Mixing Kettle For Juice Milk Sauce Ketchup
Stainless Steel Sanitary Industrial Mixing Kettle For Juice Milk Sauce Ketchup
Specifications
Model Number :
KQ 100L -KQ600L
Certification :
ISO ,FDA
MOQ :
1 Set
Price :
2000USD -3500USD
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 Sets Per Month
Delivery Time :
15 to 30 days after get your advance payment
Packaging Details :
Standard Wooden Box .
Name :
cooker mixer kettle
Material :
Sanitary Stainless Steel 304 / 316
Heating :
Steam Heating
Capacity :
100L to 1000L
Speed of mixer :
36RPM /48RPM
Motor :
ABB/ Siemens / China Brand
Application :
Food Industry
Description

Stainless Steel Sanitary Mixing Jacketed Kettle For Juice Milk Sauce Ketchup

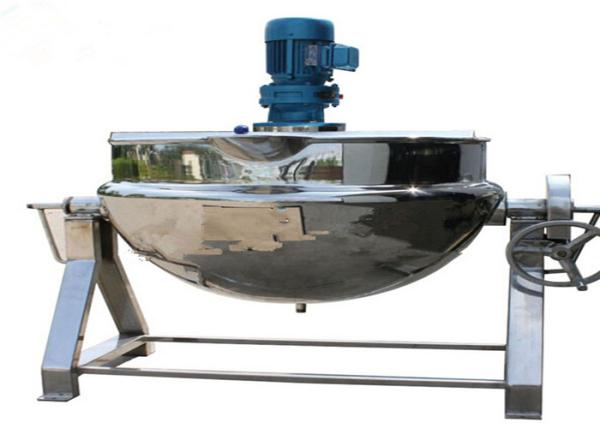

Tilting Steam Jacketed Cooking Kettle

Metric volume(L) 50 100 200 300 400 500 600 800 1000
Caliber (mm) Φ 600 Φ 700 Φ 800 Φ 900 Φ 1000 Φ 1100 Φ 1200 Φ 1300 Φ 1400
Depth of pot(mm) 400 450 530 630 680 730 780 830 900
Heating area(m2) 0.45 0.58 1.12 1.42 1.75 2 2.3 3.2 3.9
Pipe size Steam pipe 3/4" 1" 2"
Condensate pipe 3/4" 1"
Interlayer work pressure ≤ 0.09Mpa(can be adapted according to customer requirement)
Mixing speed 36 r/min(can be adapted according to customer requirement)
Mixing power(Kw) 0.55 0.55 0.75 1.1 1.1 1.5 1.5 2.2 2.2

Tilting Steam Jacketed Cooking Kettle

1. Brief Introduce for Jacketed Kettle

Jacketed Kettle Pan is widely use for food processing, cook and boil. You can choose tilting type or stationary type according your requirement. Steam heating and electric heating for choose.

2. Features Of Jacketed Kettle

1.Low cost, easy operation, large heating area, high thermal efficiency

2.Temperature raising rapidly ,heating evenly ,the heating temperature is easily controlled.

3.Improve quality of finished products,shorten cooking time, improve working condition.

3. Equipment Application Of Jacketed Kettle

Applied in food processing such as candy, cake ,beverage, juice, jam, conserve, dairy product, canned food.Also suitable for brewing, wine, pharmacy and daily chemical industry,etc.

Used for melting, disinfecting, heating,warming, pre-cooking, compounding,stewing,cooking and concentrating. Suitable place :large-scale hotel, restaurant,hostel,canteen(enterprise,state organs,armed forces, universities), can be used for cooking porridge, stewinng, boiling dumplings, frying ,etc.

Stainless Steel Sanitary Industrial Mixing Kettle For Juice Milk Sauce KetchupStainless Steel Sanitary Industrial Mixing Kettle For Juice Milk Sauce Ketchup

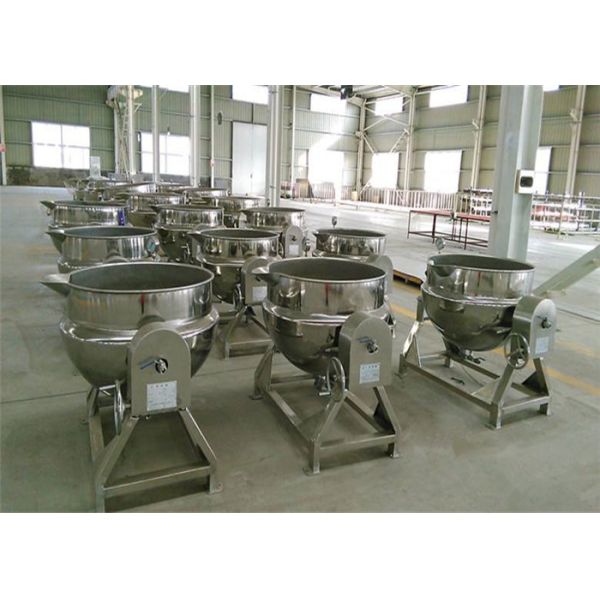

2. Factory :

Tilting Steam Jacketed Cooking Kettle


a) Stainless steel inner pot(SUS304/SUS316L) .
b) The whole machine is made of stainless steel ( SUS304/SUS316L)


Tilting Steam Jacketed Cooking Kettle


Stainless Steel Sanitary Industrial Mixing Kettle For Juice Milk Sauce Ketchup

1. Be widely applied in food processing such as candy, medicine, dairy, alcohol, cake, sweetmeat, beverage, can, etc.
2. Can be used to boil soup, cook, stew and porridge in some large restaurants and canteens. It is considered to be the ideal equipment in the area of improving quality, shortening the time and improving working conditions.

Tilting Steam Jacketed Cooking Kettle


1. Efficient Heating
Steam heating jacketed kettle takes a certain pressure of steam as heat source. It has characteristics such as big heating area, uniform heating, high thermal efficiency, short boiling time, easy control of the heating temperature etc.

2. Safety and Convenience


Steam heating jacketed kettle adopts stainless steel 304 as production material, which is resistant to heat and acid. The machine is equipped with pressure gauge, safety valve or electrical control box. Not only has good-appearance, but also easy to install and operate. It is safe and convenient.

Stainless Steel Sanitary Industrial Mixing Kettle For Juice Milk Sauce Ketchup
