Sanitary Stainless Steel Jacketed Kettle Cooking Pot Heating Transfer Oil
Sanitary Stainless Steel Jacketed Kettle Cooking Pot Heating Transfer Oil
Sanitary Stainless Steel Jacketed Kettle Cooking Pot Heating Transfer Oil
Sanitary Stainless Steel Jacketed Kettle Cooking Pot Heating Transfer Oil
Sanitary Stainless Steel Jacketed Kettle Cooking Pot Heating Transfer Oil
Sanitary Stainless Steel Jacketed Kettle Cooking Pot Heating Transfer Oil
Specifications
Model Number :
KQ100L to KQ 800L
Certification :
ISO
MOQ :
1 Set
Price :
2500USD /Set
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100 Set Per Month
Delivery Time :
10 to 15 days after get your advance payment
Packaging Details :
Standard Export Wooden Box
Name :
Sanitary Stainless Steel Jacketed Cooking Pot Kettle
Material :
Food Grade Stainless Steel 304
Capacity :
100L to 600L
Heating :
Steam Heating or electric heating
Motor :
ABB
Speed of mixer :
36RPM
Titling Wheel :
Yes / No
Warranty :
One year .
Description

Sanitary Stainless Steel Heating Transfer Oil Jacketed Cooking Pot Kettle

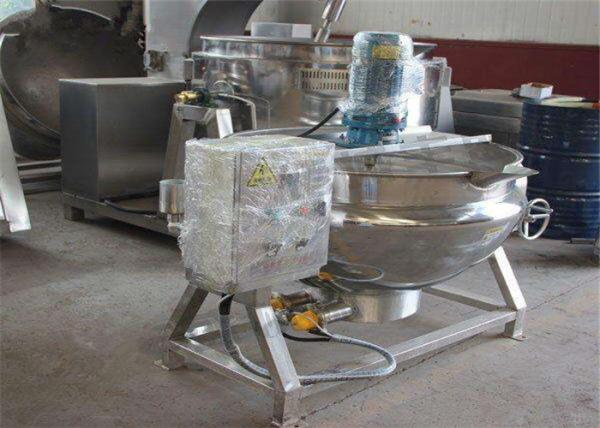

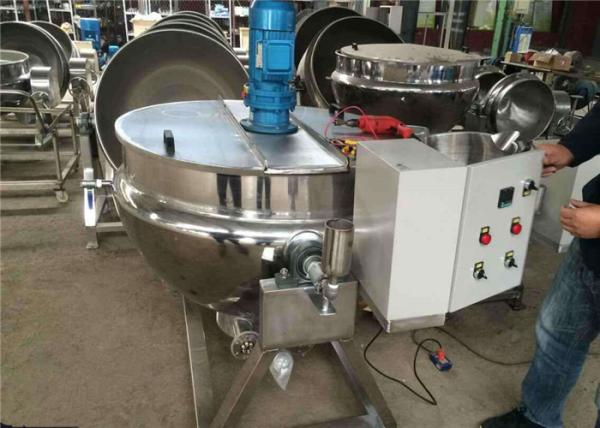

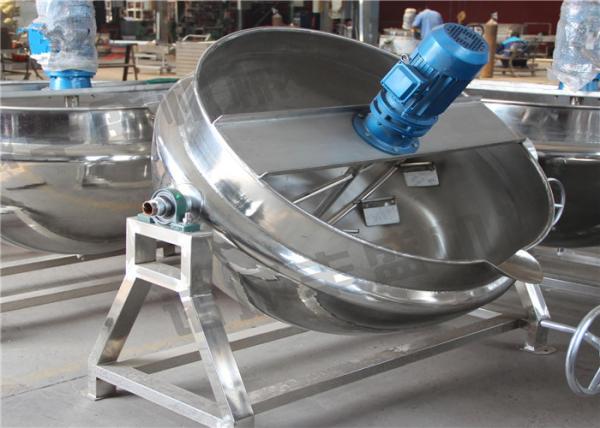

1. Jam Kettle Picture :

Structure:
Tilting Jacketed Kettle is mainly composed of pot and tilting frame; And the pot is the double layer structure formed by inside and outside spherical pot; Middle layer can add steam to heat.


Sanitary Stainless Steel Jacketed Kettle Cooking Pot Heating Transfer Oil
Material:
A) Common Jacketed Kettle Stainless steel inner pot(SUS304/SUS316L)
B) All Stainless Steel Jacketed Kettle The whole machine is made of stainless steel (SUS304/SUS316L)

Usage:
1. Be widely applied in food processing such as candy, medicine, dairy, alcohol, cake, sweetmeat, beverage, can, etc.
2. Can be used to boil soup, cook, stew and porridge in some large restaurants and canteens. It is considered to be the ideal equipment in the area of improving quality, shortening the time and improving working conditions.

Sanitary Stainless Steel Jacketed Kettle Cooking Pot Heating Transfer Oil
Product Feature:
Applicable range:
1. Used as liquid storage tank, liquid composing tank, liquid blending tank, temporary storage tank and hot water tank etc.
2. Ideal in field such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.
Sanitary Stainless Steel Jacketed Kettle Cooking Pot Heating Transfer Oil
Structure characteristics:
1. Adopt structure of internal tank and external package, with heat preservation materials inside.
2. Material are all sanitary stainless steel.
3. Humanized structure design and easy to operate.
4. Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.
Food Grade Stainless Steel 500L Jam Jacketed Cooking Kettle (KQ-600)
Configuration of tank:
1. Quick open manhole.
2. Various types of CIP cleaners.
3. Fly and insect resistant sanitary breathing cover.
4. Adjustable triangular bracket.
5. Dismountable materials input pipe assembly.
6. Thermometer (According to customer requirements ).
7. Ladder (According to customer requirements ).
8. Liquid level meter and level controller (According to customer requirements ).
9. Eddy-proof board.
The Planetary stirring mixing more throughly.
Variable mixing speeds meet different cooking processes.
The Mixing Scrapers touch the Bowl thoroughly,make the material not sticky paste.
The SUS304 body is not easy to rust and easy to clean.
With ISO certification.
The mixing head can be lifted 45° by hydraulic cylinder.
Easy operation with moveable control panel and save manpower.
Model GTJ-100 GTJ-200 GTJ-300 GTJ-500 GTJ-600
Volume (L) 100 200 300 500 600
Pot Size (mm) Φ700×530 Φ800×580 Φ900×630 Φ1100×730 Φ1200×780
Working Pressure(MPa) ≤0.3(jacket)
Working Temperature ≤100 degree C (material in pot)
≤143 degree C(jacket)
Blending Speed (r/min) 35
Steam Inlet(DN) 20 20 20 25 25
Heating Area(m2) 0.7 0.95 1.2 1.8 2.2
Evaporative Power(kg/h) 45 80 100 140 160
Steam Consumption (kg/h) 50 90 112 160 182
Motor Power (KW) 0.37 0.55 0.55 1.1 1.1
Dimension(cm) 115×80×100 135×90×107 145×100×115 165×120×136 176×130×146
Weight(kg) 180 200 220 290 320

Sanitary Stainless Steel Jacketed Kettle Cooking Pot Heating Transfer Oil

Sanitary Stainless Steel Heating Transfer Oil Jacketed Cooking Pot Kettle
