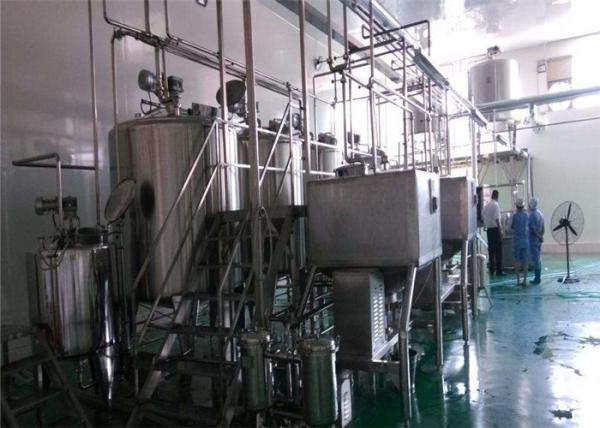

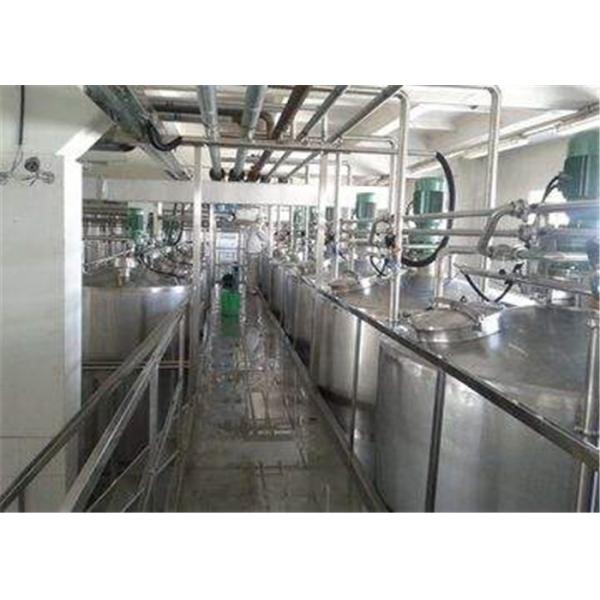

304 316 Stainless Steel Packing Milk Dairy Milk Yogurt Production Line Design

1. Introduction of Milk Production line :

Turnkey pasteurized milk production line/UHT milk processing line/milk drink processing machines.
The whole milk production line consists of the following systems:
1. Water treatment system
2. Suger melt system
3. Sterilizer system

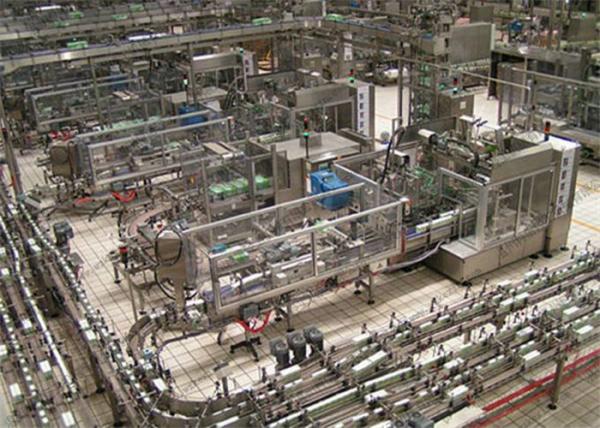

4. Filling and packing system
5. CIP cleaning system
6. After treatment equipments, like conveyor, package or pallet, etc.
7. There are other assistant equipments used such as steam boilers, air compressor, cold water unit, etc.
8. Installation materials for the process pipline, utility pipeline as well as electrical installation are provided.
Filling and packing types can be decided by the customer then designed accordingly.
Our company can design customized milk production lines in accordance to the customers' requirements. The production capacity varies from 1000L/h to 10000L/h according to customer's need .

Notes for Inquiry:
1. Liquid material name and physical properties: Solid contents (or moisture contents), viscosity, surface tension, pH value, etc. If there's any other liquid, such as organic solvent, please specify the name and percentage clearly.
2. Product characteristics: Final moisture content required, the range of particle size, and heat sensitive temperature etc.
3. Special requirements (if any): Range of specific bulk density, color, and flavor etc.
4. Working capacity (kg/h or ton/h). If the capacity is based on per day, per month or per, please also indicate the working hours.
5. Heat source: It could be the pressure of steam, electricity, coal, oil, natural gas, LPG and other combustible materials.
6. Control requirements: The way to control the air inlet temperature, liquid supply system, pneumatic hammer etc, and the type of the system control (normal push button type, PLC+HMI, and PC system etc)
7. Fines collection type: Depending on the product characters and environment protection requirements, we have following options, cyclone, bag filter, wet scrubber and their combinations.
8. Other special requirements: Dimensions of the workshop, height limit and special electricity requirements etc.
Our company can design customized milk production lines in accordance to the customers' requirements. The production capacity varies from 1000L/h to 10000L/h according to customer's need.

This production line is used for the production of pasteurized milk, yogurt, lactobacillus drinks, dairy drinks.
According to customers' requirement, we can design the capacity of the production line from 1000L/H to 10 tons/H,
The complete production line including milk collection system/power reduction system/, water treatment system, sugar milting and blending system,
ilter, degas, homogenization & sterilization, temperature holding, fermentation, CIP washing, filling, coding, packing, etc.

2. Technical Parameter :
