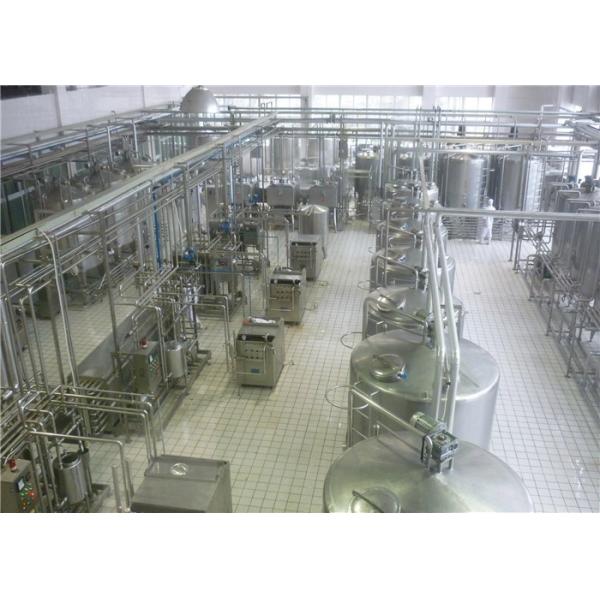

Low Fat Milk Production Line Fruit Flavored UHT Dairy Processing Machinery
Low Fat Milk Production Line Fruit Flavored UHT Dairy Processing Machinery
Low Fat Milk Production Line Fruit Flavored UHT Dairy Processing Machinery
Low Fat Milk Production Line Fruit Flavored UHT Dairy Processing Machinery
Specifications
Model Number :
KQ 200L KQ 8000L
Certification :
CE .
MOQ :
One set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
20 Set / Month
Delivery Time :
10 to 30 days
Packaging Details :
Standard Export Wooden Box
Name :
dairy milk processing plant
Material :
Sanitary Stainless Steel 304 / 316 / 316L
Flow :
300L/Hour -15000L /H
Application :
Milk ,Yogurt and Yogurt production
Voltage /hz /phase :
ISO ,CE
Turn key Project :
Yes
Packing :
Pallets
Warranty :
Two year One year
Delivery :
40 days after get your advance payment
Description

Fruit Flavored UHT Dairy And Low Fat Production Line Milk Processing Line

I. Introcution of milk production line :

Ultra high temperature type milk production line is for all kinds of dairy products and juice, such as pure milk, flavored milk, sour milk, yogurt, milk drinking and ice cream, butter,cheese etc, others like the juice and all kinds of drinking such as soy milk and tea drinking, energy drinking etc.

The whole milk line includes the following units:

1. Milk reception or powder & water mixing unit.

2. Mixing and sugar melting unit.

3. Pasteurizer and homogenizer.

4. Storage or yogurt producing unit.

5. Filling or packing unit.

6. CIP cleaning system.

7. After treatment equipments: like the conveyer, package or pallet etc.

8. Installation materials for the product pipes and power pipes and also electrical installation.

9. Other requirements from clients.

2. Technical Parameter :

Equipment list of dairy processing line
No. Name Size Main parameter
1 Milk reception and storage unit
2 Milk acceptor 300L SUS304 stainless steel, single layer, CIP spraying ball
3 Milk pump 3T/H SUS304, pump lift 24m, hard alloy mechanical seal, inner shell mirror polished
4 Single piping filter 3T/H SUS304, single pipe, stainless steal filter element of 100 mesh
5 Milk storage tank 1000L SUS304, heat insulated, dimple padjacket, vertical agitator, CIP spraying ball, breather valve, digital show thermometer, sampling point
6 Milk pump 3T/H SUS304, pump lift 24m, hard alloy mechanical seal, inner shell mirror polished
7 Blending unit
8 Storage tank 500L SUS304, heat insulated, dimple padjacket, vertical agitator, CIP spraying ball, breather valve, digital show thermometer, sampling point
9 Milk pump 3T/H SUS304, pump lift 24m, hard alloy mechanical seal, inner shell mirror polished
10 Single piping filter 3T/H SUS304, single, stainless steal filter element of 100 mesh
11 Plate-type exchanger 1.5T/H SUS304, double pipes
12 High pressure homogenizer 500L/H 40MPa
13 Cream separtor unit
14 Milk separator 500L/H The content of dried skim milk (%)<0.03, the speed of rotator is 8000rpm
15 Buffer container 100L SUS304, with a cover, single layer
16 Buffer & cooling container 100L SUS304, with a cover, single layer
17 Milk pump 3T/H SUS304, with a cover, heat insulated, dimple pad jackets
18 Butter churner 100L SUS304
19 Yogurt storage, ferment and filling unit
20 Temporary and ferment storage tanks 500L SUS304, heat insulated, dimple padjacket, vertical agitator, CIP spraying ball, breather valve, digital show thermometer, sampling point
21 Milk pump 3T/H SUS304, pump lift 24m, hard alloy mechanical seal, inner shell mirror polished
22 Rotor pump 1T/H SUS304, hard alloy mechanical seal,adjustment speed by manual
23 Plastic pouch filling machine
24 Plastic cup-shaped filling machine
25 CIP system unit
26 Manual CIP system 3×500L SUS304, single clening circulation, with CIP pump of connected tanks
27 CIP return pump 10T/H SUS304, pump lift 24m ,hard alloy mechanical seal, inner shell mirror polished
28 Power system unit
29 Cold water equipment 7000 kcale per hour, air cooling refrigeration
30 Hot water boiler 1000Kg/h, outlet temperature is 90°C
31 Installation system Stainless steel piping system,power piping system, electric controlling box, electric installation material,installation and commissioning
