Specifications
Model Number :
KQ 500L KQ 8000L
Certification :
CE .
MOQ :
One production line
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
20 Set / Month
Delivery Time :
10 to 30 days
Packaging Details :
Standard Export Wooden Box
Name :
pasteurized milk processing line
Material :
Sanitary Stainless Steel 304 / 316 / 316L
Flow :
300L/Hour -15000L /H
Application :
Milk ,Yogurt and Yogurt production
Turn key Project :
Yes
Delivery :
30 days after get your advance payment
Description

UHT Milk And Pasteurized Sterilized Production Line Milk Processing Machines

1. Intruction of milk production line :

Shanghai Kaiquan Machine Valve Co., Ltd., with registered capital of 1 million, target to develop all kinds of food machenes,insist on the policy of "taking the quality as the life ,seeking the development with credit",our cheangeless goal is to satisfy our customers with high quality products,6000 square meters of processing workshop, producing machines over ten of thousands sets annually, passed the CE quality certification. Every machine is processed finely and being sold to Southeast Asia, Europe & America, the Middle East, South America and other overseas markets, with a complete and scientific quality management system, professional sales team, a mature logistics channels, Alchemy will to provide various types of machines,to meet customer needs.

2. Technical Parameter :

UHT Milk And Pasteurized Sterilized Production Line Milk Processing Machines
No. Name Main Technology Parameters
1 Milk Receive/Storage and Cream Separator Unit
2 electron pound scale maximum weighing 500KG
3 milk weighing tank made of SUS stainless steel, single layer, product feeded in through 40 mesh filter net, CIP cleaning ball
4 milk acceptor SUS304 stainless steel, single layer, CIP cleaning ball
5 milk pump SUS304 stainless steel, pump lift 24M, Hard Alloy Mechanical Seal, Inner Shell Bright-Polished
6 twin piping filter SUS304 stainless steel, two pipes, stainless steel filter element 100 mesh
7 dish separator auto residue discharge
8 chilling tank SUS304 stainless steel , alveolate jacket, attached with compressor
9 milk pump SUS304 stainless steel, pump lift 24M, hard alloy mechanical seal , inner shell bright-polished
10 Preparing Unit
11 blending tank SUS304 stainless steel, heating insulated, top off-center vertical agitator, conical head, airtight manhole, breather valve, digital readout thermometer, anti-eddy baffle, supporters with adjustable feet
12 milk pump SUS304 stainless steel, pump lift 24M, hard alloy mechanical seal , inner shell bright-polished
13 mini set of plate-type heat SUS304 stainless steel, two stages
14 high speed emulsification tank SUS304 stainless steel, heat insulated, bottom high speed emulsification, digital readout thermometer, supporters with adjustable feet
15 milk pump SUS304 stainless steel, pump lift 24M, hard slloy mechanical seal, inner shell bright-polished

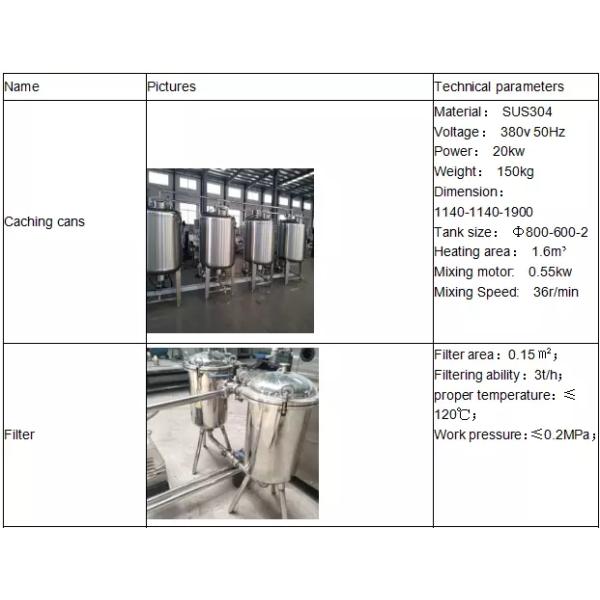

16 two piping filter SUS304 stainless steel, stainless steel filter element 100 mesh
17 Sterilizing, homogenizing unit
18 UHT sterilizer tube type, sterilizing temperature 137℃, holding time 4s, fully automatic control

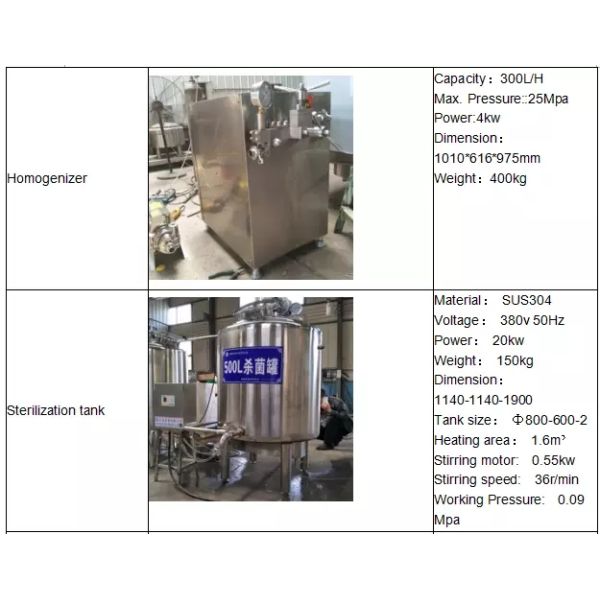

19 high pressure homogenizer 40MPa,(starting box included)
20 temperature holding SUS304, holding 300S
21 distributing plate SUS304, 3 holes
22 Cheese/Butter processing plant
23 bufferying tank SUS304 stainless steel, heat insulated, top off-center vertical agitator, conical head, airtight manhole, breather valve, digital readout thermometer, anti-eddy baffle, supporters with adjustable feet
24 milk pump SUS304 stainless steel, pump lift 24M, Hard Alloy mechnical seal inner Shell bright-polished
25 cream seperator
26 bufferying contanier SUS304, with cover
27 milk pump SUS304 stainless steel, pump lift 24M, hard alloy mechnical seal, shell bright-polished
28 butter-churner SUS304, stepless timing
29 cheese vat SUS304, with heating jacket and insing device
30 pressor SUS304 6 heads
31 mould SUS304, 10L, with cover
32 Yogurt fermentation unit
33 fermentation tank SUS304 stainless steel, heat insulated, top off-center vertical agitator, conical head, airtight manhole, breather valve, digital readout thermometer, anti-eddy baffle, supporter with adjustable feet
34 rotary pump SUS304 Stainless Steel,Hard alloy Mechnical Seal , Manual steppless shift
35 plate cooler SUS304, single stage, milk discharge at 4 degree centigrade
36 rotary pump SUS 304 stainless steel Hard alloy mechnical seal, manual steppless shift
37 Filling Unit
38 higher positation tank SUS304, stainless steel, heat insulated, top off-center vertical agitator, conical head, airtight manhole, breather valve, digital readout thermometer, anti-eddy baffle, supporters with adjustable feet
39 pasteurized milk filling machine
40 yogurt filling machine
41 CIP system
42 Semi-auto CIP system Outer coat of SUS304 stainless steel matereial. Inner shell of SUS316. Single cleaning way. Concentrated acid/alkali tank.
43 CIP return pump Stainless steel 304L, pump lift 24M, hard alloy mechnical seal, inner Shell bright-polished
44 Installation Part Project installation and commissioning
