Hot Rolled AR400 Abrasion Resistant Steel Plate with 5mm-80mm Thickness and Width 10-2600mm
Hot Rolled AR400 Abrasion Resistant Steel Plate with 5mm-80mm Thickness and Width 10-2600mm
Hot Rolled AR400 Abrasion Resistant Steel Plate with 5mm-80mm Thickness and Width 10-2600mm
Hot Rolled AR400 Abrasion Resistant Steel Plate with 5mm-80mm Thickness and Width 10-2600mm
Hot Rolled AR400 Abrasion Resistant Steel Plate with 5mm-80mm Thickness and Width 10-2600mm
Hot Rolled AR400 Abrasion Resistant Steel Plate with 5mm-80mm Thickness and Width 10-2600mm
Hot Rolled AR400 Abrasion Resistant Steel Plate with 5mm-80mm Thickness and Width 10-2600mm
Hot Rolled AR400 Abrasion Resistant Steel Plate with 5mm-80mm Thickness and Width 10-2600mm
Hot Rolled AR400 Abrasion Resistant Steel Plate with 5mm-80mm Thickness and Width 10-2600mm
Hot Rolled AR400 Abrasion Resistant Steel Plate with 5mm-80mm Thickness and Width 10-2600mm
Hot Rolled AR400 Abrasion Resistant Steel Plate with 5mm-80mm Thickness and Width 10-2600mm
Hot Rolled AR400 Abrasion Resistant Steel Plate with 5mm-80mm Thickness and Width 10-2600mm
Specifications
MOQ :
1 Ton
Price :
US $828-1,196 / Ton
Technique :
Hot Rolled
Width :
10-2600mm
Thickness :
5mm-80mm
Length :
6m, 8m, 10m or custom
Hardness HRC :
5.0 - 80.0mm
Related Material :
NM360, NM400, NM450, NM500, NM550, NM600, AR360, AR400, AR450, AR500, AR600
Yield Strength :
900-1250 MPa
Tensile Strength :
1000-1450 MPa
Elongation :
8-11%
Impact Strength :
-30C to -40C
Hardness Range :
360-540
Carbon Content :
0.18-0.30%
Silicon Content :
0.7%
Manganese Content :
1.70%
Production Capacity :
50000kgs
Description
AR400 Abrasion Resistant Steel Plate
Premium wear-resistant AR400 hardfacing bimetal steel plate designed for extended service life in demanding industrial applications.
Product Specifications
Description Abrasion Resistant Steel Plate
HRC 5.0 - 80.0mm
Related Materials NM360, NM400, NM450, NM500, NM550, NM600, AR360, AR400, AR450, AR500, AR600
Thickness 5mm - 80mm
Width 1500mm, 2000mm, 2200mm
Length 6m, 8m, 10m or custom lengths as requested
Price Terms EX-Work, FOB, CFR, CIF
Payment Terms T/T, L/C, Western Union
Abrasion Resistant (AR) steel plate is manufactured in the as-rolled condition specifically for long service life in harsh operating environments. These premium steel plates are ideal for mining, quarrying, conveyors, material handling, construction, and earthmoving applications where extended component life and reduced unit weight are critical requirements.
Chemical Composition
Grade C Si Mn P S Cr Ni Mo B
AR500 0.30 0.7 1.70 0.025 0.015 1.00 0.70 0.50 0.005
AR450 0.26 0.7 1.70 0.025 0.015 1.00 0.70 0.50 0.005
AR400 0.25 0.7 1.70 0.025 0.015 1.50 0.70 0.50 0.005
AR300 0.18 0.7 1.70 0.025 0.015 1.50 0.40 0.50 0.005
Mechanical Properties
Grade Yield Strength (MPa) Tensile Strength (MPa) Elongation A Impact Strength Charpy V 20J Hardness Range
AR500 1250 1450 8 -30°C 450-540
AR450 1200 1450 8 -40°C 420-500
AR400 1000 1250 10 -40°C 360-480
AR300 900 1000 11 -40°C -
Application Specifications
  • AR400: Premium abrasion resistant steel plates that are heat-treated and exhibit through-hardening with improved forming and welding capabilities
  • AR450: Abrasion resistant plate used in applications requiring slightly greater strength beyond AR400
  • AR500: Suitable for mining, forestry and construction applications
  • AR600: Utilized in high-wear areas such as aggregate removal, mining, and manufacture of buckets and wear bodies
Shipping & Delivery
Delivery Time 7-30 days after order confirmation
Packaging Standard seaworthy export packing, bundled with firm steel straps
Shipping Time 5-7 work days after delivery
Shipping Method By Sea
Shipping Port Shanghai

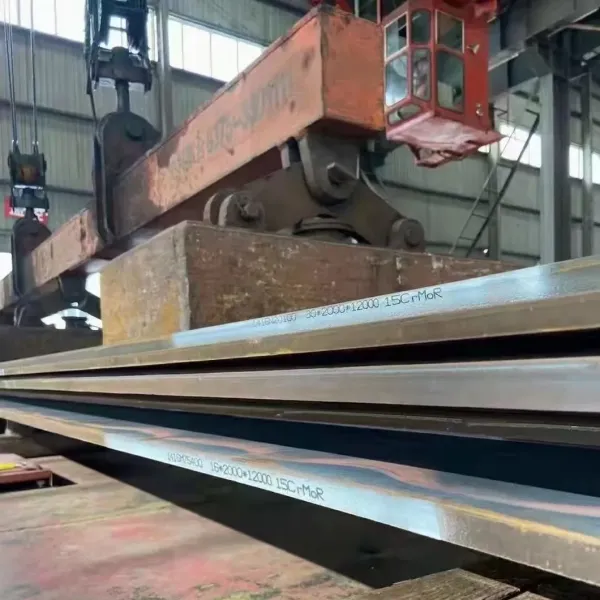

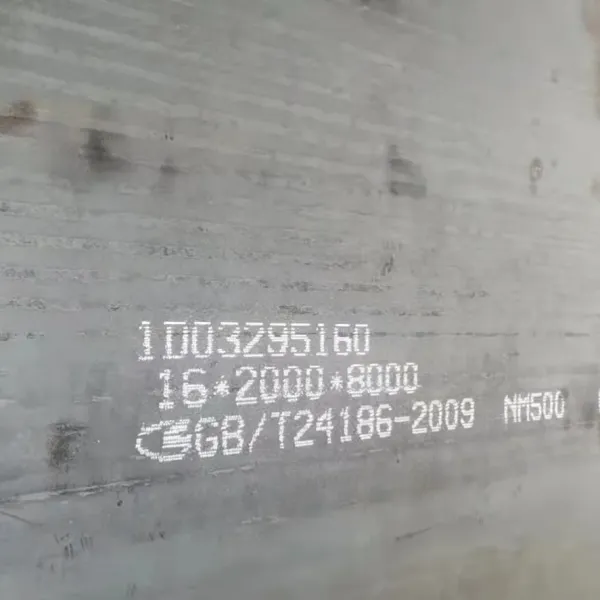

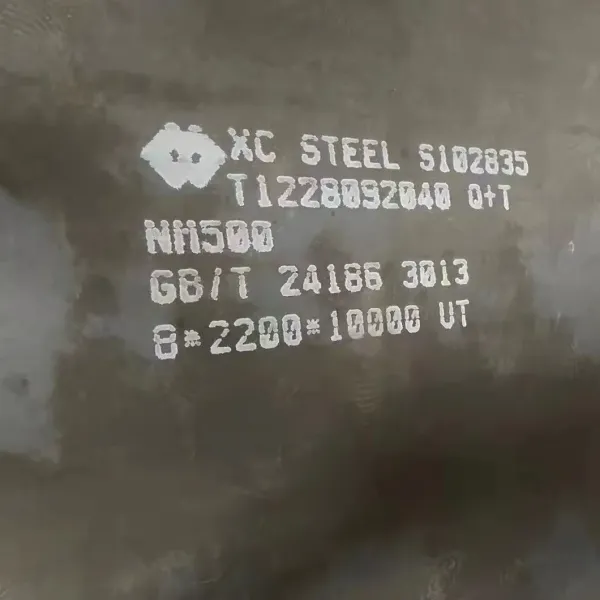

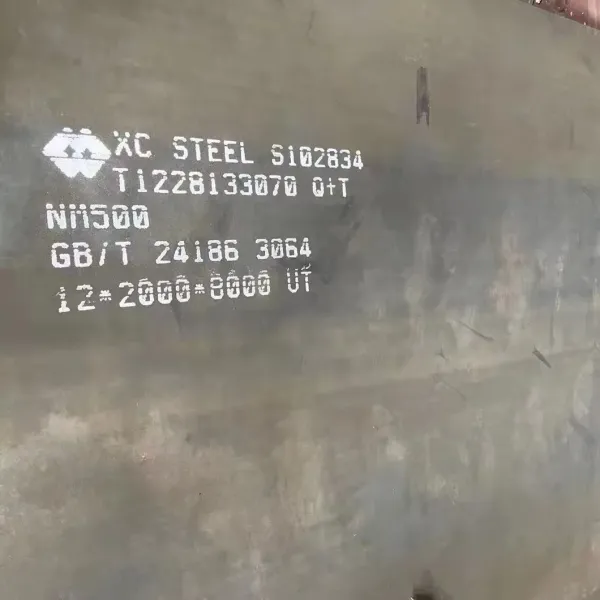

Product Gallery
