10mm-50mm Hot Rolled Abrasion Resistant Steel Plate AR500 NM500 Wear Resistant Steel Plate
10mm-50mm Hot Rolled Abrasion Resistant Steel Plate AR500 NM500 Wear Resistant Steel Plate
10mm-50mm Hot Rolled Abrasion Resistant Steel Plate AR500 NM500 Wear Resistant Steel Plate
10mm-50mm Hot Rolled Abrasion Resistant Steel Plate AR500 NM500 Wear Resistant Steel Plate
10mm-50mm Hot Rolled Abrasion Resistant Steel Plate AR500 NM500 Wear Resistant Steel Plate
10mm-50mm Hot Rolled Abrasion Resistant Steel Plate AR500 NM500 Wear Resistant Steel Plate
10mm-50mm Hot Rolled Abrasion Resistant Steel Plate AR500 NM500 Wear Resistant Steel Plate
10mm-50mm Hot Rolled Abrasion Resistant Steel Plate AR500 NM500 Wear Resistant Steel Plate
10mm-50mm Hot Rolled Abrasion Resistant Steel Plate AR500 NM500 Wear Resistant Steel Plate
10mm-50mm Hot Rolled Abrasion Resistant Steel Plate AR500 NM500 Wear Resistant Steel Plate
10mm-50mm Hot Rolled Abrasion Resistant Steel Plate AR500 NM500 Wear Resistant Steel Plate
10mm-50mm Hot Rolled Abrasion Resistant Steel Plate AR500 NM500 Wear Resistant Steel Plate
Specifications
MOQ :
1 Ton
Price :
US $793-1,161 / Ton
Thickness range :
5.0 - 80.0mm
Width range :
1500mm, 2000mm, 2200mm
Length options :
6m, 8m, 10m or custom
Hardness range :
450-540 (AR500)
Yield strength :
1250 MPa (AR500)
Tensile strength :
1450 MPa (AR500)
Elongation :
8% (AR500)
Impact strength :
-30C (AR500)
Carbon content :
0.30 (AR500)
Silicon content :
0.7 (AR500)
Manganese content :
1.70 (AR500)
Chromium content :
1.00 (AR500)
Nickel content :
0.70 (AR500)
Molybdenum content :
0.50 (AR500)
Boron content :
0.005 (AR500)
Description
Abrasion Resistant Steel Sheet Wear Plate AR500 NM500
Our premium abrasion resistant steel plates are specifically engineered for extended service life in demanding industrial applications. Available in thicknesses from 10mm to 50mm, these wear plates offer superior protection against impact and sliding abrasion.
Product Specifications
Description Details
Product Type Abrasion Resistant Steel Plate
Hardness Range (HRC) 5.0 - 80.0mm
Available Materials NM360, NM400, NM450, NM500, NM550, NM600, AR360, AR400, AR450, AR500, AR600
Thickness Range 5mm - 80mm
Width Options 1500mm, 2000mm, 2200mm
Length Options 6m, 8m, 10m or custom lengths as requested
Technical Properties
Chemical Composition
Grade C Si Mn P S Cr Ni Mo B
AR500 0.30 0.7 1.70 0.025 0.015 1.00 0.70 0.50 0.005
AR450 0.26 0.7 1.70 0.025 0.015 1.00 0.70 0.50 0.005
AR400 0.25 0.7 1.70 0.025 0.015 1.50 0.70 0.50 0.005
AR300 0.18 0.7 1.70 0.025 0.015 1.50 0.40 0.50 0.005
Mechanical Properties
Grade Yield Strength (MPa) Tensile Strength (MPa) Elongation A Impact Strength Charpy V 20J Hardness Range
AR500 1250 1450 8 -30°C 450-540
AR450 1200 1450 8 -40°C 420-500
AR400 1000 1250 10 -40°C 360-480
AR300 900 1000 11 -40°C -
Application Areas
  • AR400: Premium abrasion resistant steel plates with heat treatment and through-hardening. Features improved forming and welding capabilities.
  • AR450: Ideal for applications requiring slightly greater strength beyond AR400 specifications.
  • AR500: Specifically designed for mining, forestry, and construction applications with high impact resistance.
  • AR600: Utilized in extreme high-wear areas including aggregate removal, mining operations, and manufacturing of buckets and wear bodies.
Product Benefits
Abrasion resistant steel plates provide exceptional resistance to sliding and impact abrasion. The high carbon content in the alloy enhances hardness and toughness, making these plates ideal for applications requiring high impact or abrasion resistance. Unlike brittle high carbon steels, our alloy plates maintain durability while resisting particle tear-out from surfaces.
Shipping & Delivery
Service Details
Delivery Time 7-30 days after order confirmation
Packaging Standard seaworthy export packing, bundled with firm steel straps. Custom packaging available.
Shipping Method By sea from Shanghai port
Container Options 20ft GP (24-26 CBM) or 40ft GP (68 CBM)
Payment Terms T/T, L/C, Western Union
Price Terms EX-Work, FOB, CFR, CIF
Global Markets
We serve customers worldwide including Europe, South America, Africa, Oceania, and countries such as USA, Germany, India, Iran, Dubai, Iraq, Vietnam, Ireland, Singapore, and many others.

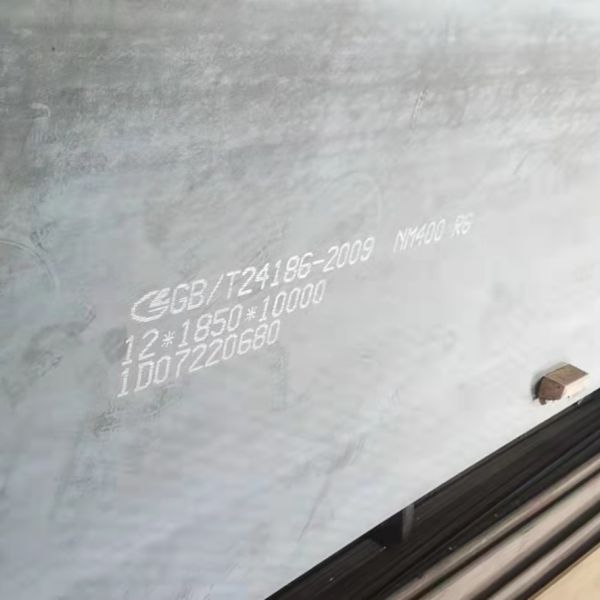

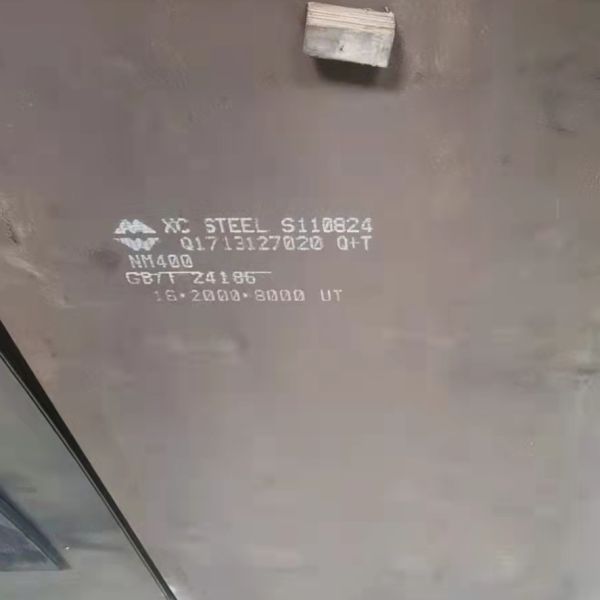

Product Gallery
10mm-50mm Hot Rolled Abrasion Resistant Steel Plate AR500 NM500 Wear Resistant Steel Plate 10mm-50mm Hot Rolled Abrasion Resistant Steel Plate AR500 NM500 Wear Resistant Steel Plate 10mm-50mm Hot Rolled Abrasion Resistant Steel Plate AR500 NM500 Wear Resistant Steel Plate 10mm-50mm Hot Rolled Abrasion Resistant Steel Plate AR500 NM500 Wear Resistant Steel Plate 10mm-50mm Hot Rolled Abrasion Resistant Steel Plate AR500 NM500 Wear Resistant Steel Plate 10mm-50mm Hot Rolled Abrasion Resistant Steel Plate AR500 NM500 Wear Resistant Steel Plate
